Overview
ISO/TS 20825:2003 - "Road vehicles - Drawbar couplings, drawbar eyes, fifth wheel kingpins, hook couplings and toroidal eyes - Wear limits for in‑use mechanical couplings" specifies maximum allowable wear and limit dimensions for in‑service mechanical couplings on heavy commercial vehicles. The Technical Specification defines how to check worn parts and the in‑use limit dimensions that, when respected, help ensure safe on‑road operation of tractors and trailers.
Key covered components:
- 40 mm and 50 mm drawbar couplings and drawbar eyes
- 50 mm and 90 mm fifth wheel kingpins
- Hook couplings and 68 mm / 76 mm toroidal eyes
Key topics and technical requirements
- Scope and objective: Establishes wear limits and limit dimensions for standardized couplings to prevent unsafe operation due to excessive wear.
- Inspection methods: Worn components are to be checked by direct measurement or special gauges; key dimensions and axes for measurement are specified.
- Wear patterns described:
- Drawbar pins and bushes typically show an elliptical section; minimum/maximum diameters on the longitudinal axis must be checked.
- Drawbar eyes can show reduced thickness at both sides of the median plane.
- Fifth wheel kingpins develop wear in upper cylinders; dimensions for the upper and median cylinders are specified.
- Hook couplings and toroidal eyes wear at inner surfaces and the torus foremost extremity; minimum torus thickness and inner clearances are assessed.
- Limit dimensions: The TS includes tables with in‑use limit dimensions (example values from the document):
- 40 mm drawbar coupling pin: W = 36.5 mm; 40 mm eye bush: u = 41.5 mm; eye thickness: W = 28 mm
- 50 mm drawbar coupling pin: W = 46.5 mm; 50 mm eye bush: u = 51.5 mm; eye thickness: W = 41.5 mm
- 50 mm kingpin upper cylinder: W = 71 mm; median cylinder: W = 49 mm
- 90 mm kingpin upper cylinder: W = 112 mm; median cylinder: W = 86 mm
- Hook coupling inner clearance: u = 49 mm; toroidal eye torus outer diameter limit: W = 37 mm
Applications and users
Who uses ISO/TS 20825:
- Fleet owners and operators for safe maintenance criteria
- Vehicle and coupling manufacturers for service guidance
- Maintenance technicians and workshops for periodic checks and replacement decisions
- Inspection authorities and safety auditors for in‑service compliance evaluation
Practical uses:
- Establishing pass/fail criteria during periodic inspections
- Defining maintenance intervals and replacement thresholds
- Reducing risk of coupling failure and improving road safety
Related standards
Normative references in the TS include:
Keywords: ISO/TS 20825, wear limits, drawbar couplings, drawbar eyes, fifth wheel kingpins, hook couplings, toroidal eyes, heavy commercial vehicles, inspection, maintenance.

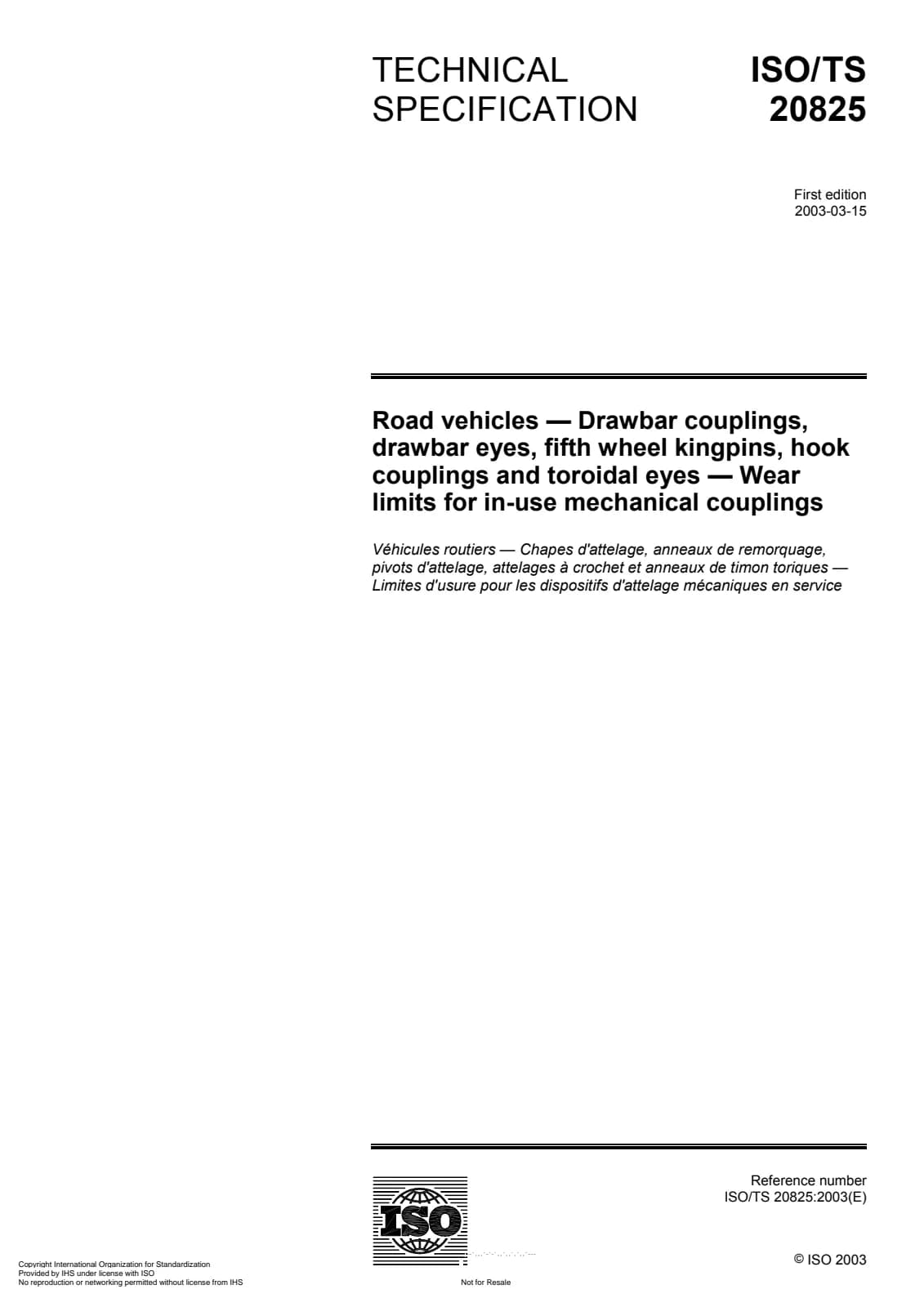

Открыть превью (PDF)Road vehicles — Drawbar couplings, drawbar eyes, fifth wheel kingpins, hook couplings and toroidal eyes — Wear limits for in-use mechanical couplings
