ISO/TS 17430:2025 PDF

Patient compartment of negative pressure ambulance — Technical specifications

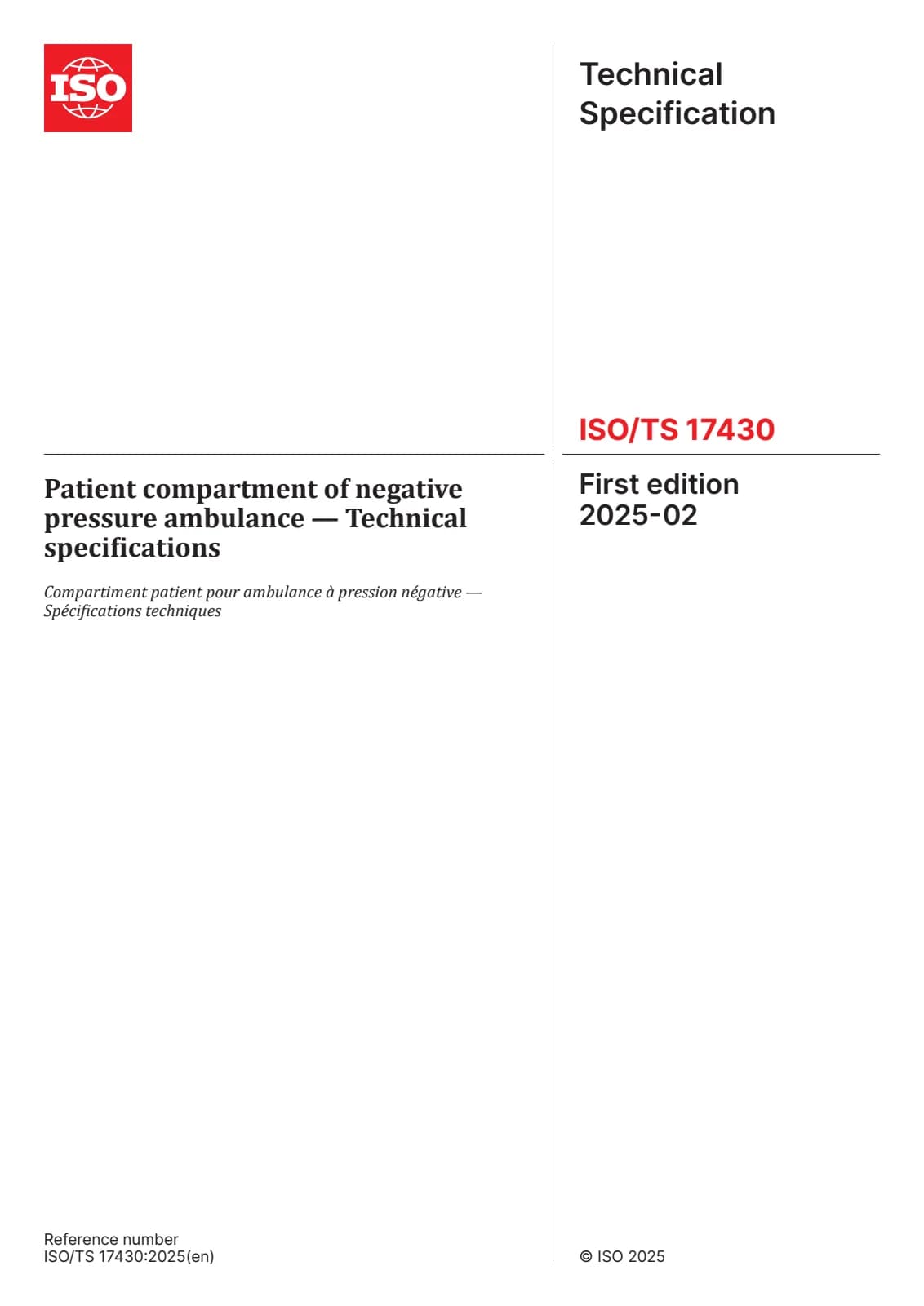

Первая страница стандарта ISO/TS 17430:2025

Открыть превью (PDF)

Название (английский):

ISO/TS 17430:2025

Patient compartment of negative pressure ambulance — Technical specifications

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 7
Дата публикации:: 18 февраля 2025 г.
Издание:: ISO TS 17430 edition 1 version 1
ICS:: 43.160

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:105 €

Описание (английский):

This document specifies the relevant terms and definitions, technical requirements and test methods for the patient compartment of negative pressure ambulances. This document is applicable to ambulances equipped with negative pressure systems.

Технические детали

Технический комитет: ISO/TC 22 - Road vehicles
SKU: ISO/TS 17430:2025

Abstract

Overview

ISO/TS 17430:2025 - "Patient compartment of negative pressure ambulance - Technical specifications" defines terms, technical requirements and test methods for the patient compartment of ambulances equipped with a negative pressure system. The Technical Specification focuses on infection control features specific to transporting patients with respiratory infectious diseases, including sealing, negative pressure performance, ventilation rate, directional airflow, filtration and disinfection systems.

Key topics and requirements

Sealing and isolation
- Patient compartment must be separated and sealed from the driver’s area or be an independent sealed compartment.
- Patient compartment ventilation must be independent of the driver’s ventilation.
Negative pressure performance
- Airflow outlet adjusted to (240 ± 5) m3/h when stationary and doors/windows closed; compartment pressure below −18 Pa (one clause).
- After 3 min of system operation, negative pressure should be between −30 Pa and −15 Pa with a stabilization fluctuation of ±3 Pa.
Ventilation frequency
- Minimum 20 air changes per hour after the negative pressure system runs for 3 minutes.
Directional airflow and collection
- Airflow must be directed toward a collection port near the patient’s head.
- Directional air collection efficiency ≥ 90%; air must be filtered before discharge.
Filtration
- Filters must capture particles ≥ 0.3 µm with ≥ 99.7% efficiency.
- Built-in filter tested per ISO 29463-1 and achieve the specified rating (document: meet ISO 30E or above).
- Filters must be replaceable in a sealed manner and resist repeated disinfection without performance loss.
Disinfection systems
- Patient compartment must include an automatic/timed disinfection function.
- Spray disinfection: atomized liquid must be non-toxic and achieve a microbial log reduction of ≥ 3.00.
- Ozone sterilization (if used) must be able to provide ≥ 60 mg/m3 inside the negative pressure system and support timed cycles ≥ 60 minutes.
Tests and documentation
- Test methods cover sealing, negative pressure, ventilation rate, directional collection efficiency, disinfection effectiveness, and verification of filtration/disinfection devices.
- Requirements for marking and manual content are included.

Applications and users

Intended for ambulance manufacturers, vehicle integrators, emergency medical services (EMS) planners, public health authorities, and regulatory bodies developing or procuring negative pressure ambulances.
Useful for designers of negative pressure systems, HVAC/filter suppliers, and testing laboratories to verify compliance and improve patient/staff biosafety during transport of respiratory infection patients.

Related standards

ISO 12219-1 (cabin VOC testing)
EN 1789:2020 (medical vehicles and road ambulances)

Keywords: ISO/TS 17430, negative pressure ambulance, patient compartment, ventilation rate, filtration efficiency, directional airflow, disinfection system, emergency medical services, ambulance standards.

Overview

Key topics and requirements

Sealing and isolation
- Patient compartment must be separated and sealed from the driver’s area or be an independent sealed compartment.
- Patient compartment ventilation must be independent of the driver’s ventilation.
Negative pressure performance
- Airflow outlet adjusted to (240 ± 5) m3/h when stationary and doors/windows closed; compartment pressure below −18 Pa (one clause).
- After 3 min of system operation, negative pressure should be between −30 Pa and −15 Pa with a stabilization fluctuation of ±3 Pa.
Ventilation frequency
- Minimum 20 air changes per hour after the negative pressure system runs for 3 minutes.
Directional airflow and collection
- Airflow must be directed toward a collection port near the patient’s head.
- Directional air collection efficiency ≥ 90%; air must be filtered before discharge.
Filtration
- Filters must capture particles ≥ 0.3 µm with ≥ 99.7% efficiency.
- Built-in filter tested per ISO 29463-1 and achieve the specified rating (document: meet ISO 30E or above).
- Filters must be replaceable in a sealed manner and resist repeated disinfection without performance loss.
Disinfection systems
- Patient compartment must include an automatic/timed disinfection function.
- Spray disinfection: atomized liquid must be non-toxic and achieve a microbial log reduction of ≥ 3.00.
- Ozone sterilization (if used) must be able to provide ≥ 60 mg/m3 inside the negative pressure system and support timed cycles ≥ 60 minutes.
Tests and documentation
- Test methods cover sealing, negative pressure, ventilation rate, directional collection efficiency, disinfection effectiveness, and verification of filtration/disinfection devices.
- Requirements for marking and manual content are included.

Applications and users

Intended for ambulance manufacturers, vehicle integrators, emergency medical services (EMS) planners, public health authorities, and regulatory bodies developing or procuring negative pressure ambulances.
Useful for designers of negative pressure systems, HVAC/filter suppliers, and testing laboratories to verify compliance and improve patient/staff biosafety during transport of respiratory infection patients.

Related standards

ISO 12219-1 (cabin VOC testing)
EN 1789:2020 (medical vehicles and road ambulances)
