Overview
ISO 9583:1993 defines the standardized method for non-destructive testing (NDT) of metallic surgical implants using liquid penetrant inspection. This International Standard provides essential guidelines for detecting and evaluating surface imperfections on metallic implants to ensure their integrity and safety before implantation. The method aligns with ISO 3452 requirements for penetrant testing and offers acceptance limits for surface defects in both raw and finished implant conditions as detailed in Annex A.
Developed by ISO Technical Committee TC 150 on Implants for Surgery, this standard ensures consistent inspection practices worldwide, promoting patient safety and the reliability of surgical implants.
Key Topics
-
Scope and Application
ISO 9583 specifies the method to detect surface imperfections on surgical implants non-destructively using liquid penetrant inspection techniques. It focuses on metallic implants, ensuring that surface flaws do not compromise implant performance.
-
Inspection Procedure
Surfaces must be cleaned thoroughly according to ISO 3452 to remove contaminants that could affect penetrant flow or cause false indications. The inspection follows the liquid penetrant method outlined in ISO 3452, utilizing penetrant systems with sensitivity levels appropriate to the implant’s material and manufacturing stage.
-
Penetrant Materials
Selection depends on implant type and inspection sensitivity needs, ranging from normal to very high sensitivity. Compatibility among penetrant, emulsifier, and developer materials is mandatory to prevent testing errors. Regular control and performance checks of penetrant materials, emulsifiers, developers, and UV lamps are required to maintain reliability.
-
Acceptance Criteria
The standard recommends acceptance limits for surface imperfections based on size, type, and location on the implant. Annex A provides detailed tables with maximum allowable defect length, number, and separation distances, differentiated by inspection areas related to stress levels. Linear imperfections are generally not accepted, while small imperfections below 0.25 mm may be disregarded.
-
Documentation and Certification
Test results must be traceable and documented comprehensively. Personnel conducting the inspections must be certified to level 2 as per ASNT-SNT-TC-1A or equivalent national standards and trained specifically for medical implants.
Applications
-
Medical Device Manufacturing
This standard is critical for quality assurance in the production of metallic surgical implants such as orthopedic joint replacements, dental implants, and cardiovascular devices. It ensures that surface flaws are detected early, preventing implant failure in clinical use.
-
Quality Control and Regulatory Compliance
Manufacturers and suppliers utilize ISO 9583 to meet regulatory requirements for implant safety, supporting compliance for international markets. It also aids in maintaining consistent quality control protocols during production and finishing processes.
-
Non-Destructive Testing Services
Specialized NDT service providers use this standard to perform inspections requested by manufacturers or purchasers. It provides clarity on testing procedures, material compatibility, and result acceptance aligned with medical device standards.
Related Standards
-
ISO 3452 (Penetrant Testing)
The core standard describing the principles, materials, and procedures for liquid penetrant inspection, to which ISO 9583 refers for detailed technical requirements.
-
ISO 3453 (Verification of Penetrant Systems)
Provides methods for verifying the performance of penetrant materials, emulsifiers, and developers used in inspections.
-
ISO 3059 (UV Radiation Source Assessment)
Specifies the indirect assessment methods for black light sources used during fluorescent penetrant inspection.
-
ASTM D 95 (Water Content Testing)
Defines the testing procedure for water content in petroleum-based products, applied here to control emulsifier quality.
-
ASNT SNT-TC-1A (Personnel Certification)
Guidelines for qualification and certification of NDT personnel who perform penetrant testing.
Keywords: ISO 9583, liquid penetrant inspection, non-destructive testing, metallic surgical implants, implant inspection, surface imperfection detection, medical device standards, quality control surgical implants, implant surface testing, NDT medical implants.

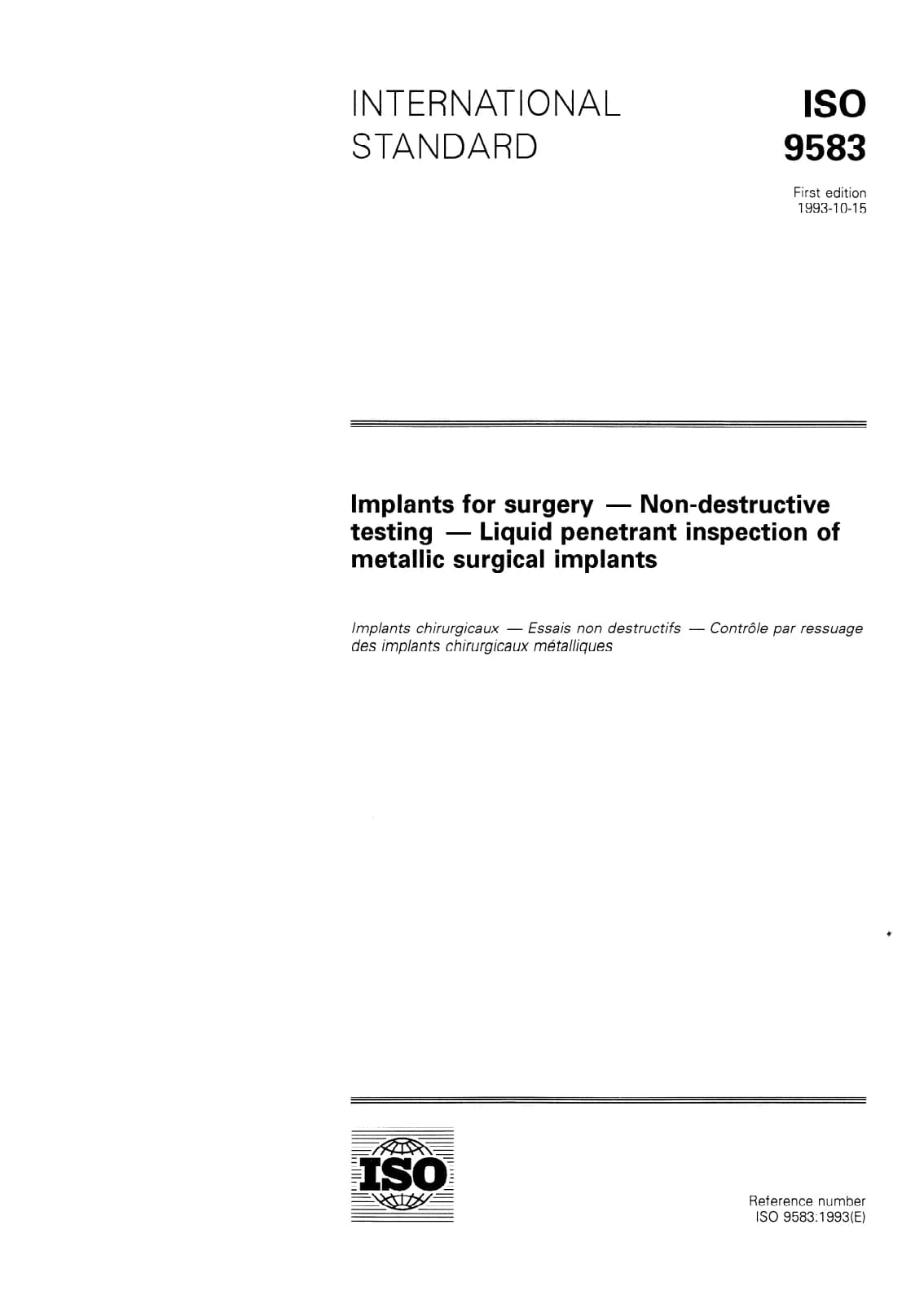

Открыть превью (PDF)Implants for surgery — Non-destructive testing — Liquid penetrant inspection of metallic surgical implants
