Overview

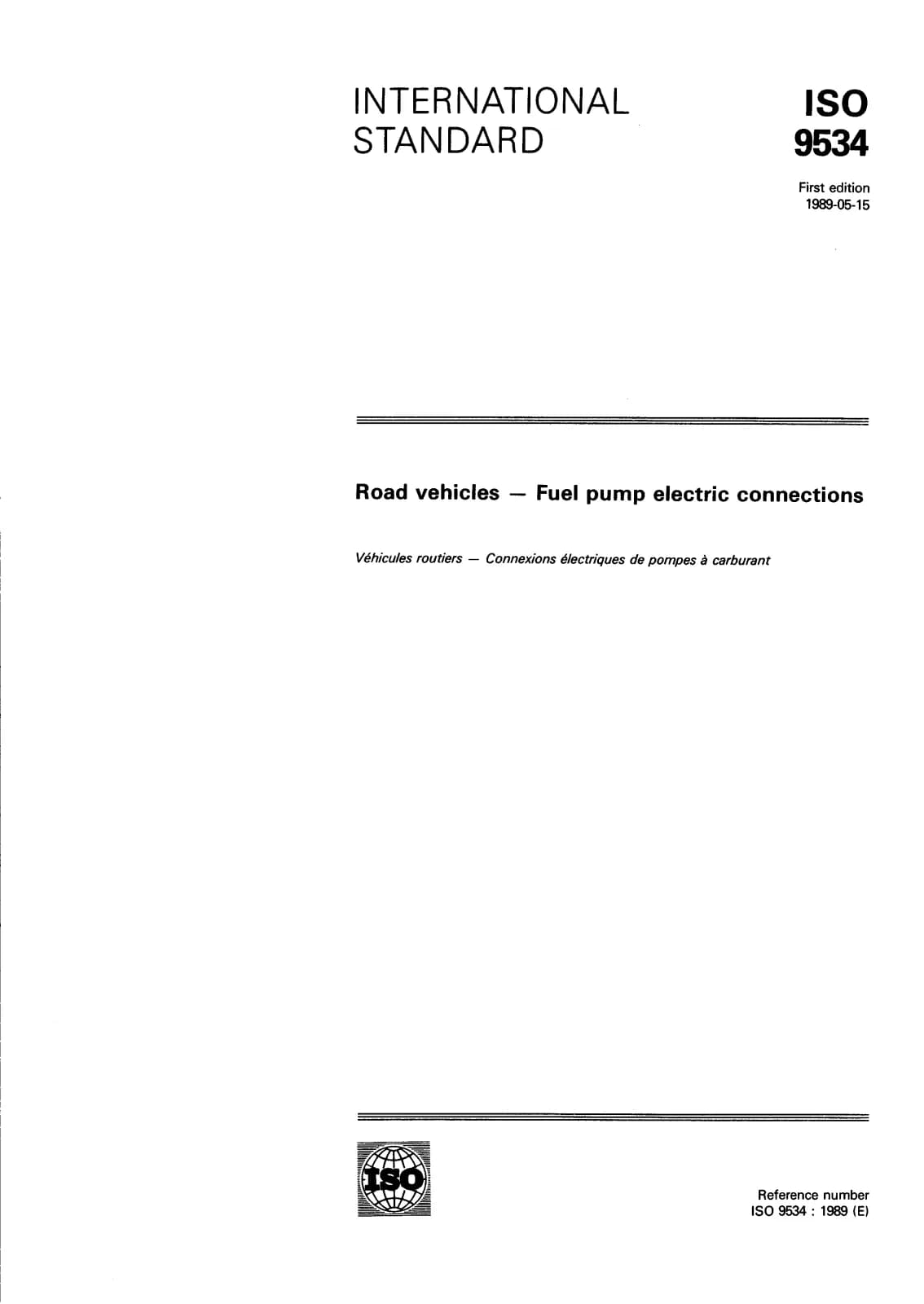

ISO 9534:1989 - Road vehicles: Fuel pump electric connections defines requirements for single-pole electric connections used on automotive electric fuel pumps. The standard covers form, fit and basic performance for three terminal types (A, B and C), gives illustrative figures for dimensions, and notes that details not specified are left to the manufacturer. It does not apply to fuel pumps with free couplers (cable‑to‑cable terminations).
Key topics and technical requirements
- Terminal types
- Type A - Flat blade (languette plate): Dimensions include standard blade widths 6.3 × 0.8 mm and 4.8 × 0.8 mm; certain maximum tab lengths (illustrated in the standard) must be respected. Flat‑blade connectors must meet the mating and performance requirements referenced from ISO 8092-2.
- Type B - Monobloc terminal: Dimensions are provided in the standard; the insulating cylindrical part is sized to accept a sealing plug (insulating diameter specified as 5.7 mm +0.2 mm).
- Type C - Threaded terminal: Recommended for pumps installed inside fuel tanks. The conductor is connected with a crimp/ferrule and secured by a nut and spring washer. The standard specifies appropriate mating geometry and assembly practice.
- Environmental and mechanical requirements
- Corrosion resistance: Assembled connections must show no corrosion after a 48-hour neutral salt spray test (per the referenced ISO specifications).
- Water protection: When assembled per manufacturer instructions, the connector must achieve a degree of protection corresponding to the second characteristic digit “4” in IEC 529 (protection against splashing water).
- Assembly torque: Threaded terminals require specified tightening torque (values given in the standard by thread size) to ensure mechanical and electrical integrity.
- Marking and colour
- Durable polarity marking using symbols “+” (positive) and “–” (negative) with a minimum symbol height (2 mm) is required.
- If colour coding of insulating parts is used, yellow for positive and brown for negative are specified.
Applications and users
- Who uses ISO 9534: automotive OEMs, fuel‑pump manufacturers, connector and terminal suppliers, electrical design engineers, quality and conformity teams, and test laboratories.
- Practical uses: specifying connector geometry for component procurement, ensuring compatibility across suppliers, defining test and acceptance criteria for corrosion and water ingress, and guiding production assembly (thread torque, sealing, marking).
Related standards
- ISO 8092 series (flat blade quick‑connects)
- IEC 529 (degrees of protection / IP code)
- ISO salt‑spray test references cited in the document
ISO 9534:1989 is a practical reference for ensuring safe, durable and compatible electrical connections on automotive fuel pumps, streamlining design, procurement and testing in vehicle electrical systems.
