Overview

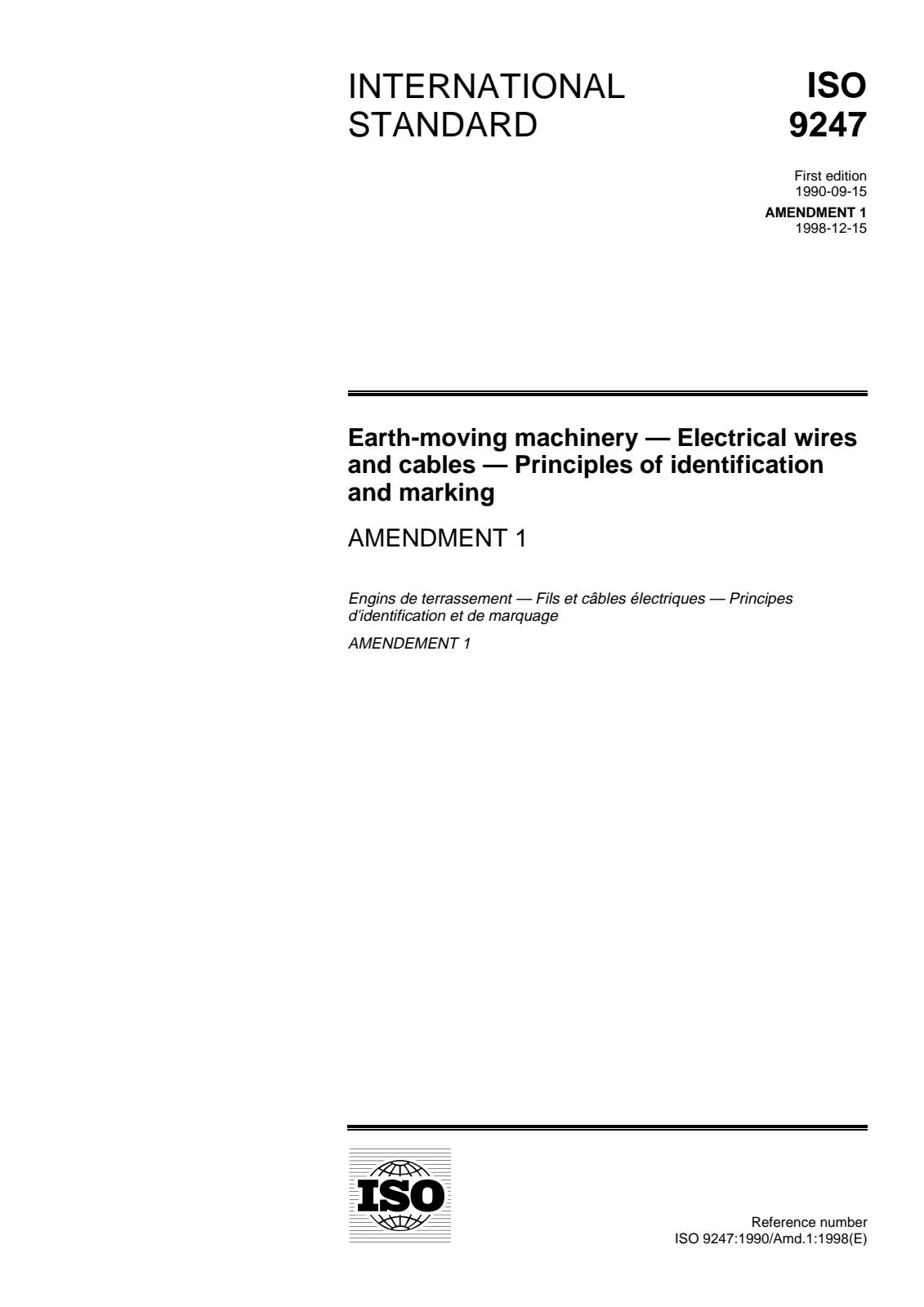

ISO 9247:1990/Amd 1:1998 is an essential amendment to the international standard that defines the principles for identification and marking of electrical wires and cables in earth-moving machinery. Published by the International Organization for Standardization (ISO), this amendment updates the existing guidelines set forth in ISO 9247:1990, ensuring clarity and uniformity in the system used to identify and label electrical conductors within specialized machinery.
Effective marking and identification are crucial for safety, maintenance, and operational efficiency in earth-moving equipment. This amendment refines the approach to wire identification, helping manufacturers and operators avoid errors and miscommunications during the installation, operation, and maintenance of machinery.
Key Topics
-
Identification Systems:
The amendment clarifies that wires and cables can be identified using numbers, symbols, or capital letters combined with numerals. This flexibility allows for adaptation to different organizational systems while maintaining standardization.
-
Avoidance of Ambiguous Letters:
To prevent misreading, certain letters that are easily confused-such as B, D, I, O, Q, S, and Z-must not be used in wire identification. This reduces the risk of error during wiring, troubleshooting, and repairs.
-
Consistency in Marking:
Identification must be identical at both ends of the wire or cable, ensuring that connections are easily traceable and verifiable throughout the machinery.
-
Application of Identification Changes:
A unique identification is required for each wire or cable as it passes through an electrical component, but not when passing through terminal blocks, connectors, splices, or common junctions. This guidance streamlines wiring identification while preserving critical information about the wiring system’s configuration.
Applications
ISO 9247:1990/Amd 1:1998 is highly relevant across the earth-moving machinery sector, supporting:
-
Manufacturers:
Assures a standardized approach to labeling electrical wiring, reducing variance and supporting consistency across different manufacturing sites and product lines.
-
Maintenance Teams:
Enables quicker identification and resolution of electrical issues, minimizing equipment downtime and improving safety during servicing.
-
Compliance Officers:
Helps organizations align with international best practices and regulatory requirements, reducing the risk of non-compliance penalties.
-
Training and Documentation:
Facilitates the development of accurate wiring diagrams, manuals, and service guides by adopting a consistent identification schema.
Common applications include use in equipment such as excavators, loaders, bulldozers, and other heavy machinery deployed in construction, mining, and material handling operations.
Related Standards
For comprehensive adherence to best practices in the electrical and machinery sectors, stakeholders may also consider:
- ISO 9247:1990 - Original standard for wire and cable identification in earth-moving machinery.
- ISO/IEC 60204 - Safety of machinery - Electrical equipment of machines.
- ISO 6011 - Earth-moving machinery - Visual display systems and controls.

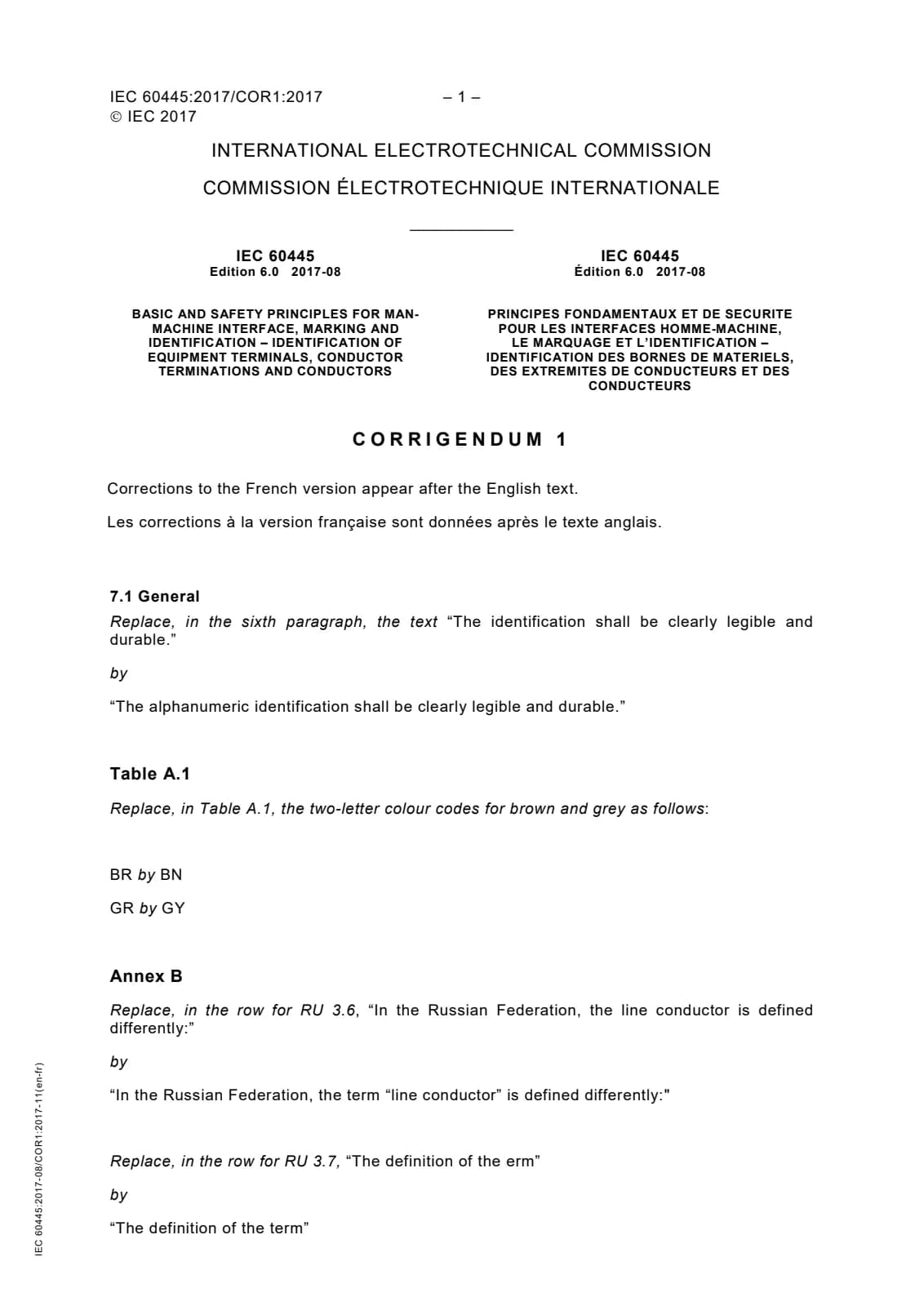

- IEC 60445 - Basic and safety principles for man-machine interface, marking and identification.
- ISO/TC 127 - A technical committee focusing on standards for earth-moving machinery.
Adopting ISO 9247:1990/Amd 1:1998 ensures that organizations in the earth-moving industry maintain safe, efficient, and easily serviceable electrical systems, building trust among operators, technicians, and regulatory authorities.
