ISO 8820-8:2019 PDF

Road vehicles — Fuse-links — Part 8: Fuse-links with bolt-in contacts (Type H and J) with rated voltage of 450 V

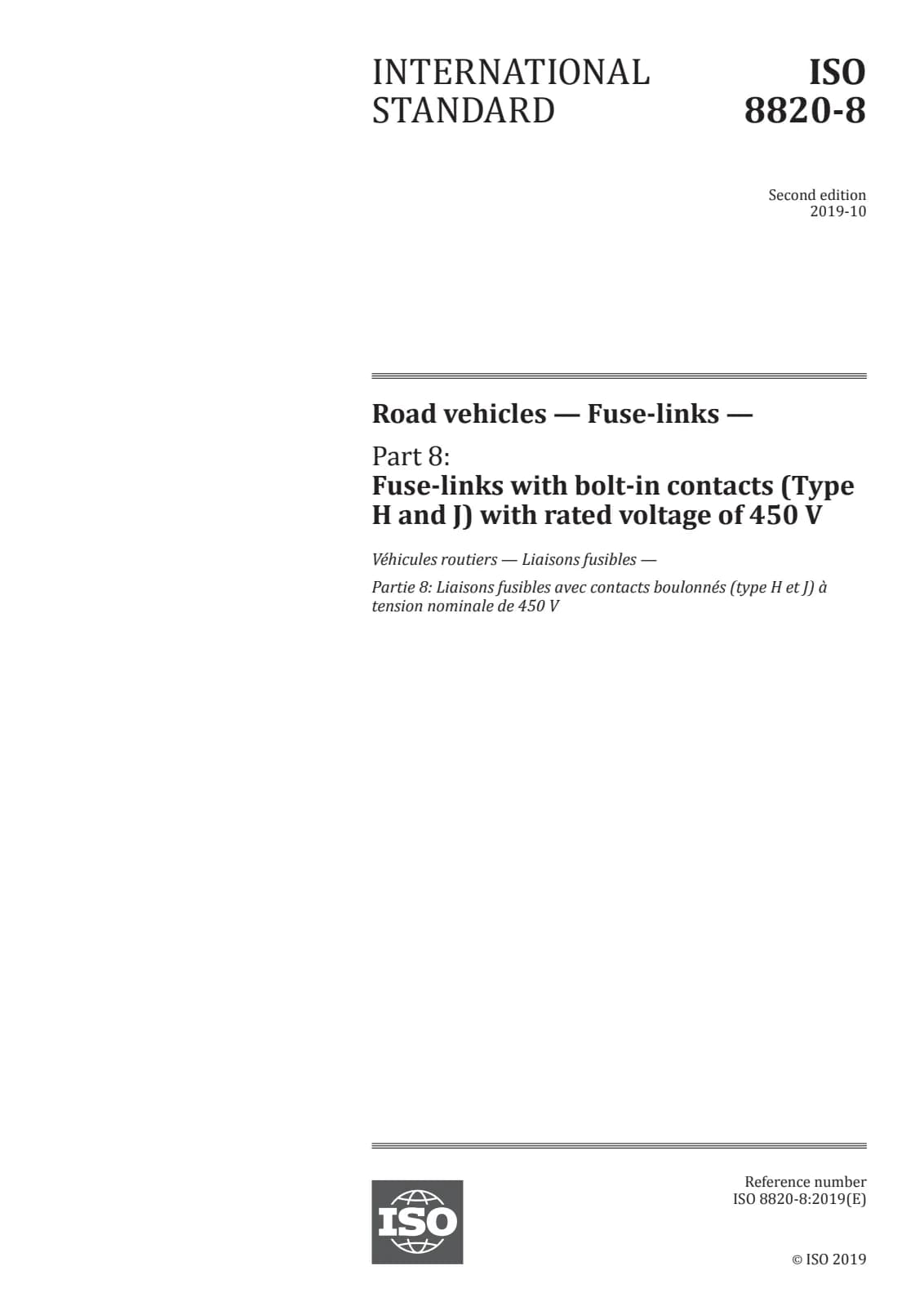

Первая страница стандарта ISO 8820-8:2019

Открыть превью (PDF)

Название (английский):

ISO 8820-8:2019

Road vehicles — Fuse-links — Part 8: Fuse-links with bolt-in contacts (Type H and J) with rated voltage of 450 V

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 11
Дата публикации:: 10 октября 2019 г.
Издание:: ISO IS 8820 edition 2 version 1
ICS:: 43.040.10

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:165 €

Описание (английский):

This document specifies fuse-links with bolt-in contacts (Type H and J) and test fixtures for the fuse-links for use in road vehicles. It establishes, for these fuse-link types, the rated current, test procedures, performance requirements and dimensions. This document is applicable to fuse-links with a rated voltage of 450 V DC, a current rating of ≤400 A and a breaking capacity of 2 000 A intended for use in road vehicles. This document is intended to be used in conjunction with ISO 8820-1 and with ISO 8820-2. The numbering of its clauses corresponds to that of ISO 8820-1 whose requirements are applicable, except where modified by requirements particular to this document.

Технические детали

Технический комитет: ISO/TC 22/SC 32 - Electrical and electronic components and general system aspects
SKU: ISO 8820-8:2019

Abstract

Overview

ISO 8820-8:2019 specifies requirements for fuse-links with bolt‑in contacts (Type H and J) for road vehicles, rated 450 V DC, intended for high-voltage automotive applications (current rating ≤ 400 A, breaking capacity 2 000 A). The standard defines rated currents, dimensions, marking, test procedures, performance criteria and the required test fixture design. It is to be used together with ISO 8820-1 and ISO 8820-2.

Key topics and technical requirements

Scope & marking
- Applies to fuse-links with bolt‑in contacts (Type H, J) for 450 V DC systems.
- Fuse-links must be permanently marked with rated current, manufacturer/trademark and "450 V DC".
Mechanical & dimensional requirements
- Detailed dimensions for Type H and Type J bolt‑in fuses are specified.
- Strength of terminals and mounting torque requirements are given.
Electrical performance and tests
- Breaking capacity: tested at 2 000 A, 450 V DC.
- Voltage drop: measured across fuse tabs after rated current for 15 min; limits defined per type and rating.
- Transient current cycling: endurance tests (e.g., 50 000 cycles) to verify long‑term performance.
- Operating time‑rating: time‑to‑clear requirements at multiple test currents (see operating time tables).
- Temperature rise and resistance to temperature shock tests to ensure thermal reliability.
- Connection resistance and test fixture requirements (e.g., connection resistance ≤ 0.35 mΩ; fuses tested at least 150 mm apart).
Environmental & chemical loads
- Environmental conditioning follows ISO 8820-1; chemical exposure tests use wipe procedures (no immersion).
Test cabling
- Test cable sizes and conductor specifications refer to ISO 6722-1 (thick wall cables).

Applications and who uses this standard

Designed for electric and hybrid vehicle high-voltage distribution and battery protection systems.
Primary users:
- Automotive OEM electrical system designers and engineers
- Fuse and component manufacturers (Type H/J bolt‑in fuses)
- Test laboratories and conformity assessors
- Procurement and quality teams specifying HV fuse-links for EVs
Practical applications include battery disconnect fuses, main DC power distribution protection, and high-voltage circuit protection in road vehicles.

Related standards

ISO 8820-1 - Definitions and general test requirements (use in conjunction)
ISO 8820-2 - Other fuse-link parts in the series
ISO 6722-1 - Road vehicle single-core cable dimensions and test requirements

Keywords: ISO 8820-8, fuse-links, bolt-in contacts, Type H, Type J, 450 V DC, automotive fuses, high-voltage vehicle fuses, breaking capacity, voltage drop, transient cycling.
