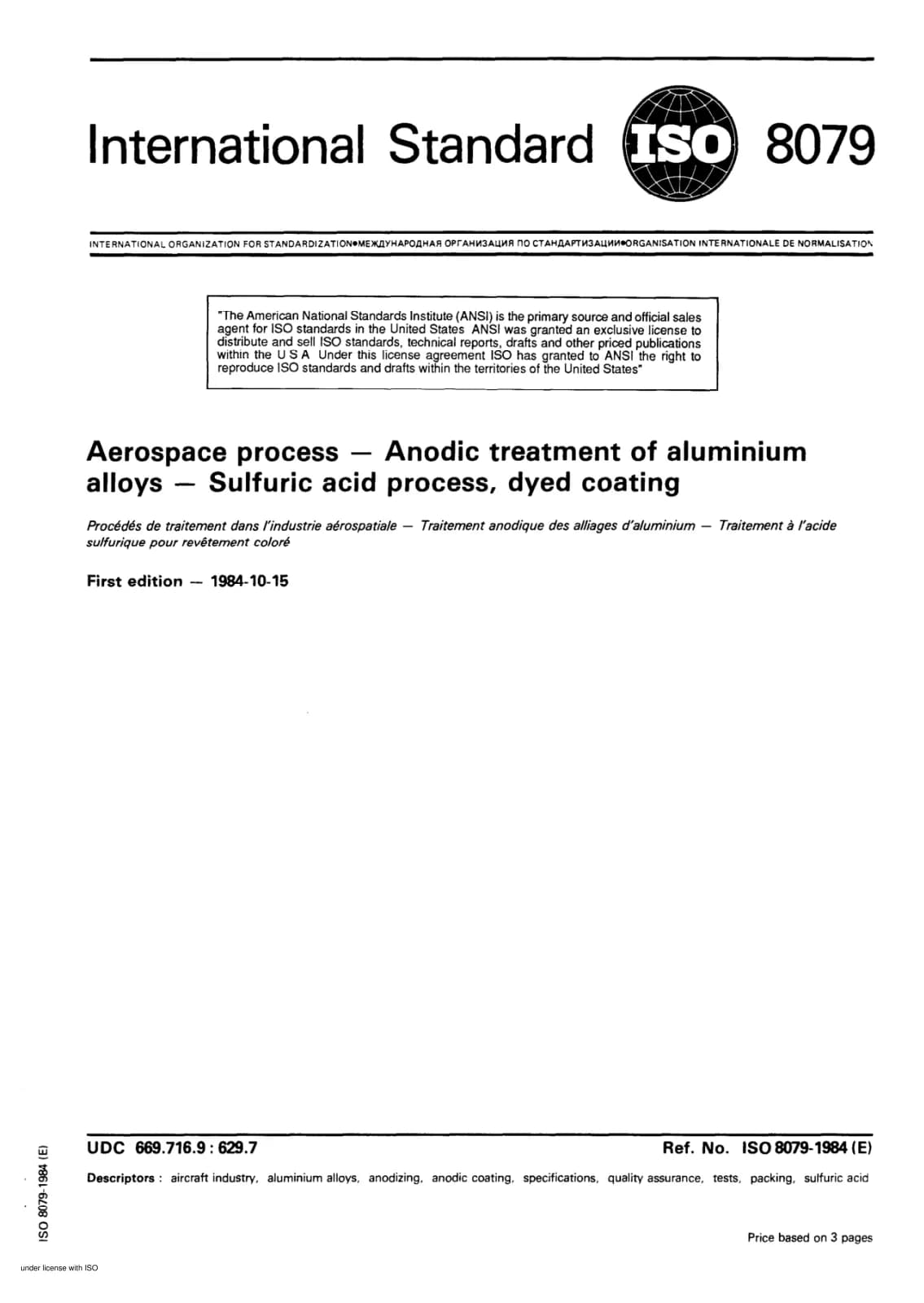

ISO 8079:1984 PDF

Aerospace process — Anodic treatment of aluminium alloys — Sulfuric acid process, dyed coating

Открыть превью (PDF)

Название (английский):

ISO 8079:1984

Aerospace process — Anodic treatment of aluminium alloys — Sulfuric acid process, dyed coating

Статус документа:: Отменён
Формат:: Электронный (PDF)
Количество страниц:: 3
Дата публикации:: 1 октября 1984 г.
Издание:: ISO IS 8079 edition 1 version 1
ICS:: 49.040

Язык документа:

ruen

Срок поставки:1 раб. дн. (перевод)

Цена:45 €

Описание (английский):

Includes requirements for producing and testing a coating on aluminium alloys where the coating is not required to withstand prolonged exposure to weathering and direct sunlight. The anodizing process is applied in the manufacture of aerospace products to improve resistance to corrosion, produce coloured surfaces for aesthetic reasons or to colour code parts for identification purposes.

Технические детали

Технический комитет: ISO/TC 20/SC 18 - Materials
SKU: ISO 8079:1984

Abstract

Overview

ISO 8079:1984 - "Aerospace process - Anodic treatment of aluminium alloys - Sulfuric acid process, dyed coating" specifies process, inspection and quality requirements for producing dyed sulfuric-acid anodic coatings on aluminium alloys for aerospace use. The standard applies where coatings are not required to withstand prolonged weathering or direct sunlight and where anodizing is used to improve corrosion resistance, provide coloured surfaces for appearance, or colour-code components.

Key topics and technical requirements

The standard details process control, testing and acceptance criteria, including:

Electrolyte chemistry: aqueous sulfuric acid electrolyte, nominal 15% (150–200 g/L H2SO4); maximum dissolved aluminium and chloride limits; bath temperature control (≈21 ± 2 °C).
Anodizing parameters: recommended voltages (about 16–22 V) and times (25–50 min) to achieve specified current densities (110–160 A/m2); continuous agitation of the electrolyte.
Dyeing: immersion in appropriate dye baths with agitation; rinsing and handling guidance to ensure stable colour and avoid premature fading during normal storage/service.
Sealing (colmatage): primary sealing using aqueous nickel- or cobalt-acetate solutions; optional secondary dichromate seal (Na2Cr2O7 or K2Cr2O7) and pH controls; temperature and dwell time requirements for sealing baths.
Water quality: limits on initial conductivity, total dissolved solids and silica; pH control recommendations to avoid deposit formation.
Thickness and mass requirements: minimum local coating thickness and mass-per-unit-area values specified for different alloy families (different limits for alloys with copper content ≥1% vs

Overview

Key topics and technical requirements

The standard details process control, testing and acceptance criteria, including:

Electrolyte chemistry: aqueous sulfuric acid electrolyte, nominal 15% (150–200 g/L H2SO4); maximum dissolved aluminium and chloride limits; bath temperature control (≈21 ± 2 °C).
Anodizing parameters: recommended voltages (about 16–22 V) and times (25–50 min) to achieve specified current densities (110–160 A/m2); continuous agitation of the electrolyte.
Dyeing: immersion in appropriate dye baths with agitation; rinsing and handling guidance to ensure stable colour and avoid premature fading during normal storage/service.
Sealing (colmatage): primary sealing using aqueous nickel- or cobalt-acetate solutions; optional secondary dichromate seal (Na2Cr2O7 or K2Cr2O7) and pH controls; temperature and dwell time requirements for sealing baths.
Water quality: limits on initial conductivity, total dissolved solids and silica; pH control recommendations to avoid deposit formation.
Thickness and mass requirements: minimum local coating thickness and mass-per-unit-area values specified for different alloy families (different limits for alloys with copper content ≥1% vs
