ISO 8066-4:2023 PDF

Rubber and plastics hoses and hose assemblies for automotive air conditioning — Specification — Part 4: Low vibration transmission type for Refrigerant 1234yf

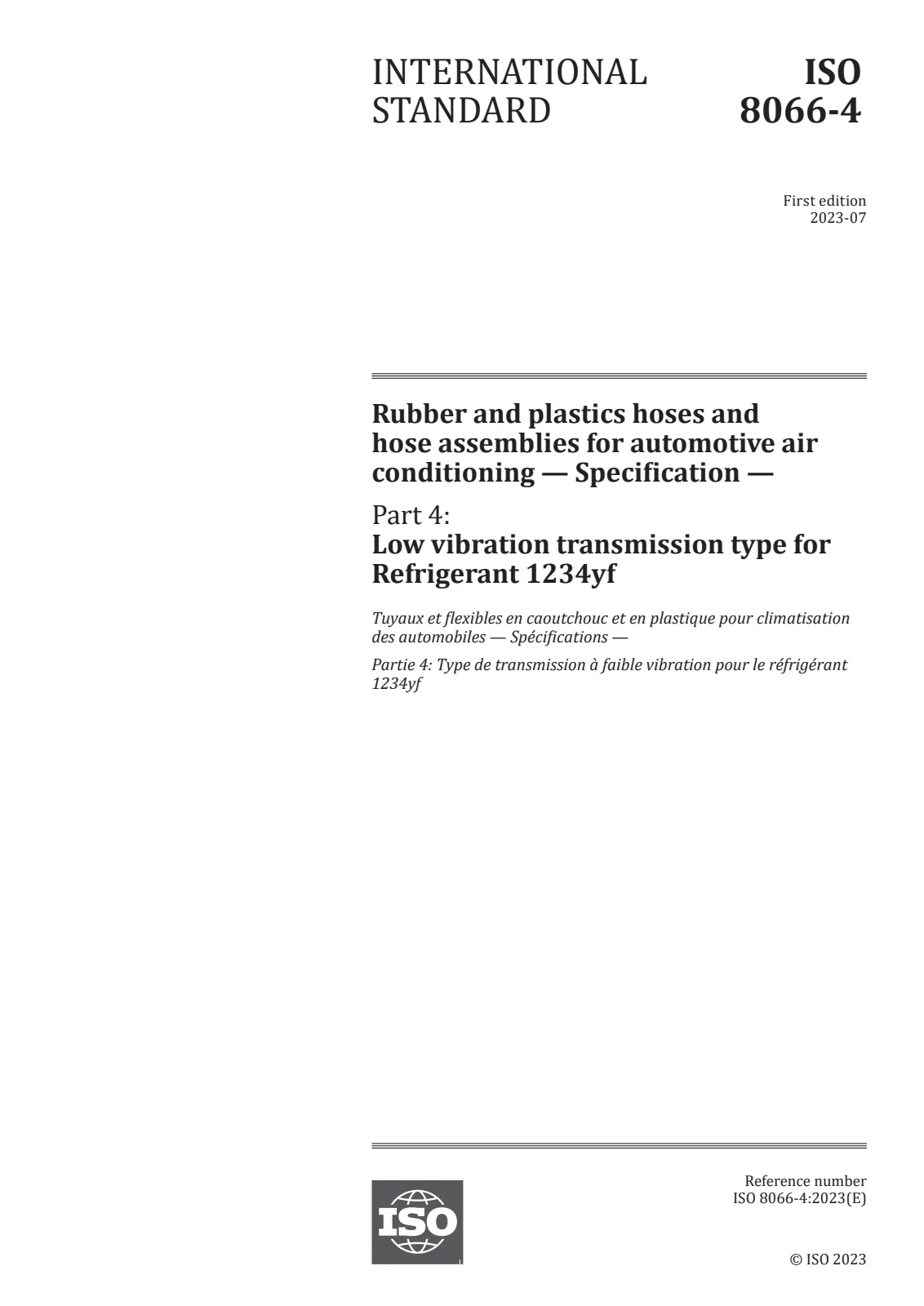

Первая страница стандарта ISO 8066-4:2023

Открыть превью (PDF)

Название (английский):

ISO 8066-4:2023

Rubber and plastics hoses and hose assemblies for automotive air conditioning — Specification — Part 4: Low vibration transmission type for Refrigerant 1234yf

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 29
Дата публикации:: 12 июля 2023 г.
Издание:: ISO IS 8066 edition 1 version 1
ICS:: 43.040.60

Язык документа:

ruen

Срок поставки:5 раб. дн. (перевод)

Цена:435 €

Описание (английский):

This document specifies the requirements for rubber hoses and hose assemblies used for low-pressure application of circulating gaseous Refrigerant 1234yf (tetrafluoropropene) (hereinafter referred to as R1234yf) in the air-conditioning systems of automobiles. The hoses and hose assemblies are designed in such a way as to reduce vibration transmission between the engine room and the cabin. The operational temperature range is −40 °C to +80 °C. Due to the critical relationship between the hose and coupling for this application, a requirement that the coupling to be used in service be used for testing is laid down.

Технические детали

Технический комитет: ISO/TC 45/SC 1 - Rubber and plastics hoses and hose assemblies
SKU: ISO 8066-4:2023

Abstract

Overview

ISO 8066-4:2023 specifies requirements for rubber and plastics hoses and hose assemblies used in automotive air-conditioning systems carrying gaseous Refrigerant R1234yf (tetrafluoropropene). This part targets low vibration transmission hose assemblies (suction/low-pressure applications) designed to reduce vibration transfer from the engine bay to the cabin. Operational temperature range is −40 °C to +80 °C. Because hose performance is tightly linked to the coupling, the standard requires that the coupling intended for service be used during testing.

Key topics and technical requirements

Construction and materials
- Seamless synthetic rubber inner tube, textile reinforcement (yarn/cord/fabric) and heat- & ozone-resistant synthetic rubber outer cover.
Pressure class
- Specified as low-pressure suction application; working pressure: 1.06 MPa (10.6 bar).
Dimensions
- Typical mean inside diameters include 14, 15, 15.9 (5/8), 19 (3/4) and 25.4 mm (1); other sizes permitted as needed.
Testing and performance
- Gas leakage (Method A for type/production and Method B for routine tests)
- Refrigerant permeation (R1234yf permeation limits and determination)
- Ageing, low-temperature performance, vacuum resistance
- Length change under pressure, minimum bursting pressure and proof pressure
- Extraction by liquid R1234yf; ozone resistance; hose cleanliness
- Impulse (pressure fatigue) testing; moisture ingression grades (ML, Mm)
- Coupling integrity (sealability) - coupling used in service must be tested
- Vibration transmissibility - quantifies low-vibration performance
- Test frequency, marking, test reports, packaging and storage recommendations
Normative annexes
- Detailed test procedures (permeation, low-temperature, impulse, moisture ingression, coupling sealability, vibration transmissibility, etc.)

Applications and users

ISO 8066-4:2023 is intended for:

Automotive OEMs and HVAC system designers specifying R1234yf suction hoses
Hose and hose-assembly manufacturers and suppliers ensuring compliance
Quality and test laboratories performing type, production and routine tests
Aftermarket and service providers replacing or certifying A/C hoses
Regulatory bodies and procurement teams referencing safety, durability and refrigerant compatibility

Practical use: specifying and verifying hoses that minimize cabin vibration while ensuring compatibility, leak-tightness and durability with R1234yf refrigerant in passenger vehicles.

Related standards

ISO 1402 - Hydrostatic testing
ISO 4671 - Measurement of hose dimensions
ISO 8330 - Vocabulary for hoses and assemblies
ISO 7326 - Ozone resistance testing
ISO 23529 - Conditioning of rubber test pieces
ISO/TR 11340 and other parts of the ISO 8066 series for related hose types

Keywords: ISO 8066-4:2023, R1234yf hoses, automotive air conditioning hoses, low vibration transmission, hose assemblies, refrigerant permeation, coupling integrity, hose testing standards.
