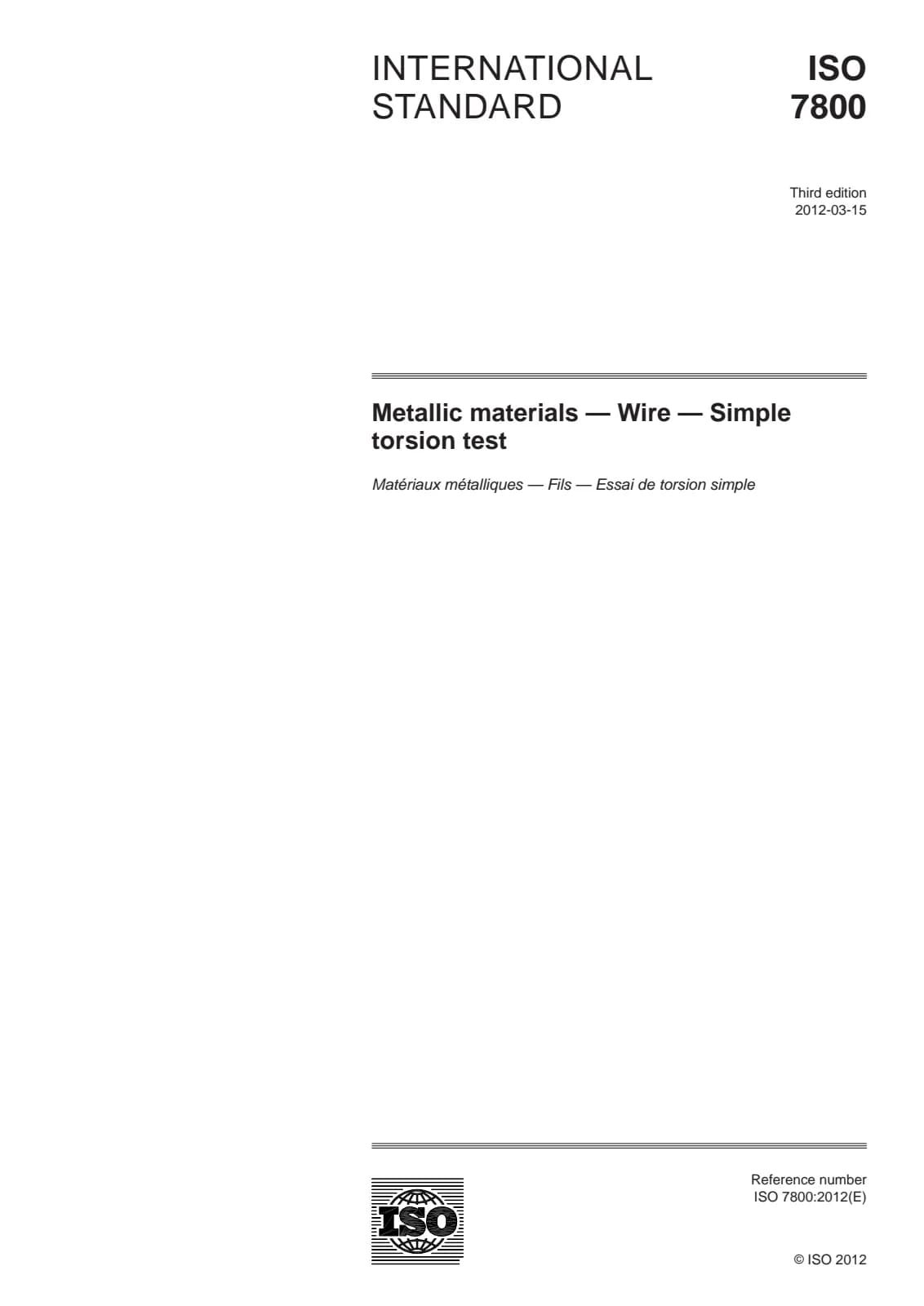

ISO 7800:2012 Overview
ISO 7800:2012 is an international standard established by the International Organization for Standardization (ISO) that specifies a standardized method for conducting a simple torsion test on metallic wires. This test evaluates the wire’s capacity to undergo plastic deformation under torsional stress, specifically for wires with diameters or characteristic dimensions ranging from 0.1 mm to 14 mm. The standard provides comprehensive guidance on test principles, equipment requirements, procedures, and report documentation to ensure reliable and consistent measurement of wire ductility under torsion.
This standard is essential for quality control, material development, and mechanical characterization of wires used across various industries, ensuring safety, durability, and performance.
Key Topics
-
Scope and Applicability
ISO 7800:2012 covers the determination of plastic deformation ability of metallic wires through single-direction torsion. It applies to round and shaped wires with diameters or characteristic dimensions from 0.1 mm to 14 mm.
-
Testing Equipment Requirements
- Jaws with a minimum hardness of 55 HRC are required; jaw type varies with wire size.
- The testing machine must allow axial alignment of grips, prevent bending forces, and accommodate changes in wire length during testing.
- One grip rotates while the other remains fixed to measure torque accurately.
- Protective shields are mandatory to safeguard operators from potential wire fracture fragments.
-
Test Piece Preparation
Wires must be as straight as possible without damage. If straightening is needed, it must not induce twists or surface defects. Nominal free length between grips is specified by wire diameter or shape type to standardize test conditions.
-
Testing Conditions and Procedure
- Tests are normally conducted at ambient temperatures between 10 °C and 35 °C, or within (23 ± 5) °C for controlled environments.
- Testing speed varies according to wire material and size to minimize temperature rise and preserve test integrity.
- A constant tensile stress of up to 2% of the wire’s nominal tensile strength may be applied to maintain straightness during testing.
- The wire is subjected to torsion by rotating one grip until breakage or until a specified number of turns are completed.
- Fracture evaluation criteria are defined, including fracture plane characteristics and crack types.
-
Test Reporting
Essential test report components include references to the standard, wire identification, dimensional details, test preparation, testing conditions, and the number of turns until failure. Optional inclusion of fracture evaluation offers additional quality insights.
Applications
ISO 7800:2012 is widely used in industries that rely on metallic wires where mechanical performance under torsion is critical. Key applications include:
-
Engineering and Manufacturing
Ensuring wire materials meet ductility and torsion resistance requirements for springs, cables, fasteners, and structural reinforcements.
-
Quality Assurance
Verifying material consistency during production to prevent premature failure in critical wire components in automotive, aerospace, and construction sectors.
-
Research and Development
Assessing new metallic wire alloys and processing methods, focusing on improved torsional performance and material behavior under deformation.
-
Metallurgical Testing Laboratories
Standardized testing support for compliance certification, failure analysis, and mechanical property characterization of wire materials.
Related Standards
-
ISO/IEC Directives
Guidelines for drafting and maintaining ISO International Standards.
-
ISO 6892
Metallic materials – Tensile testing, providing complementary mechanical testing methods.
-
ISO 9001
Quality management systems standard, often applicable in conjunction with mechanical testing quality controls.
-
ISO 14284
Wire ropes and strands test methods that may intersect with wire material testing.
