Overview
ISO 7741:1986 is an international standard developed by the International Organization for Standardization (ISO) that specifies the general requirements and test methods for surgical scissors and shears. These instruments are critical components in surgical procedures, and this standard ensures their quality, reliability, and safety. The document covers important aspects such as materials, heat treatment, hardness, corrosion resistance, workmanship, surface conditions, and cutting ability.
This standard applies to scissors and shears used specifically in surgery and outlines the testing procedures necessary to confirm compliance with the defined specifications.
Key Topics
-
Materials and Component Parts
Surgical scissors and shears must be made from stainless steel grades as specified in ISO 683/13 and ISO 4957. Rivets or screws should be stainless steel, chosen according to manufacturer discretion and relevant steel grades.
-
Heat Treatment and Hardness
- Instruments without tungsten carbide or stellite inserts must have a Rockwell hardness in the range of 50 HRC to 58 HRC.
- Instruments with tungsten carbide or stellite inserts require the inserts to have a minimum Vickers hardness of 710 HV10, while the body must have a minimum Rockwell hardness of 40 HRC.
-
Corrosion Resistance
The standard specifies two test methods to assess corrosion resistance:
- Copper sulfate test – to confirm resistance to copper plating and surface degradation.
- Boiling water test – to ensure no visible corrosion occurs after extended exposure to boiling water.
-
Workmanship
Instruments must exhibit high-quality workmanship with smooth-moving joints that are neither too loose nor too tight. Surfaces should be free from pores, crevices, grinding marks, acid, grease, or polishing residues.
-
Surface Condition and Finishing
Surface finishes may include mirror polish, satin finish, or matte black finish to reduce glare. Surgical instruments should undergo appropriate grinding, polishing, or electropolishing treatments to achieve the desired surface quality.
-
Cutting Ability
The instruments must cleanly cut specific testing materials without tearing, distortion, cracks, or permanent damage.
-
Marking Requirements
Each instrument must be marked with the manufacturer's or supplier’s trade mark. Instruments without tungsten carbide inserts shall avoid gold-colored handles.
Applications
ISO 7741:1986 is essential for manufacturers, quality control personnel, and healthcare providers to ensure the surgical scissors and shears meet internationally recognized safety and performance standards. Applications include:
-
Medical Device Manufacturing
Ensures consistent quality in surgical instruments, improving reliability during medical procedures.
-
Quality Assurance and Compliance
Enables inspection and testing of surgical scissors and shears for hardness, durability, corrosion resistance, and cutting performance in compliance with global standards.
-
Procurement and Supply Chain Management
Helps hospitals, clinics, and medical suppliers specify and procure surgical instruments that fulfill recognized international performance criteria.
-
Surgical Instrument Maintenance
Provides guidance on material properties and treatment to maintain instrument longevity and effectiveness in hospital settings.
Related Standards
- ISO 683/13: Heat-treated steels, alloy steels, and free-cutting steels – Wrought stainless steels.
- ISO 4957: Tool steels standard covering grades applicable to instrument components.
- ISO 7153-1: Metallic materials for surgical instruments – Stainless steel specifications.
- ISO 6507 and ISO 6508: Hardness test standards (Vickers and Rockwell methods respectively).
- ISO 2713 and ISO/R 80: Standards covering heat treatment and corrosion resistance testing of surgical instruments (referenced in the context of revisions).
Keywords: ISO 7741, surgical scissors standards, surgical shears requirements, surgical instrument testing, medical scissors specifications, corrosion resistance surgical tools, medical device quality, surgical instrument hardness, ISO surgical standards

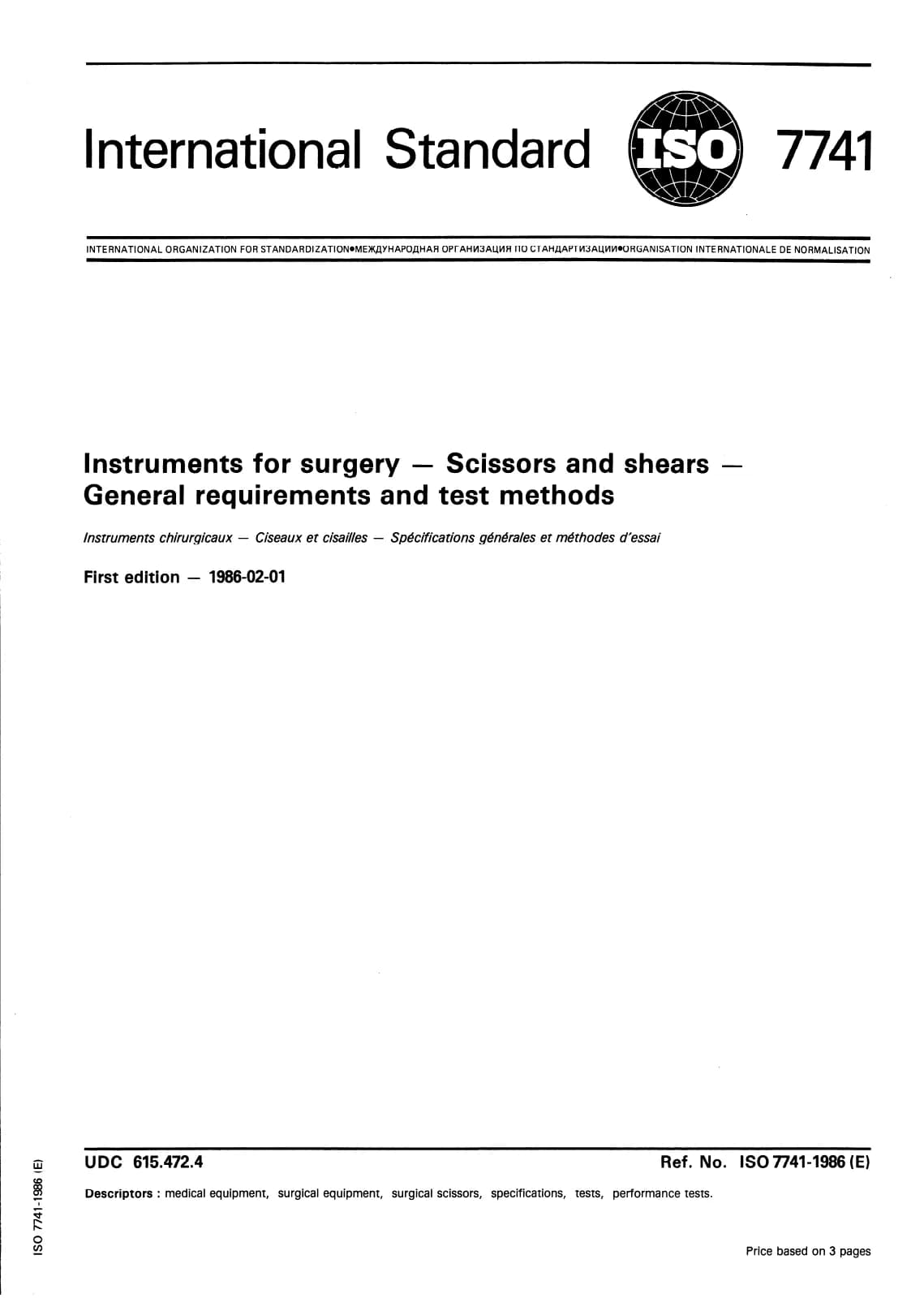

Открыть превью (PDF)Instruments for surgery — Scissors and shears — General requirements and test methods
