Overview

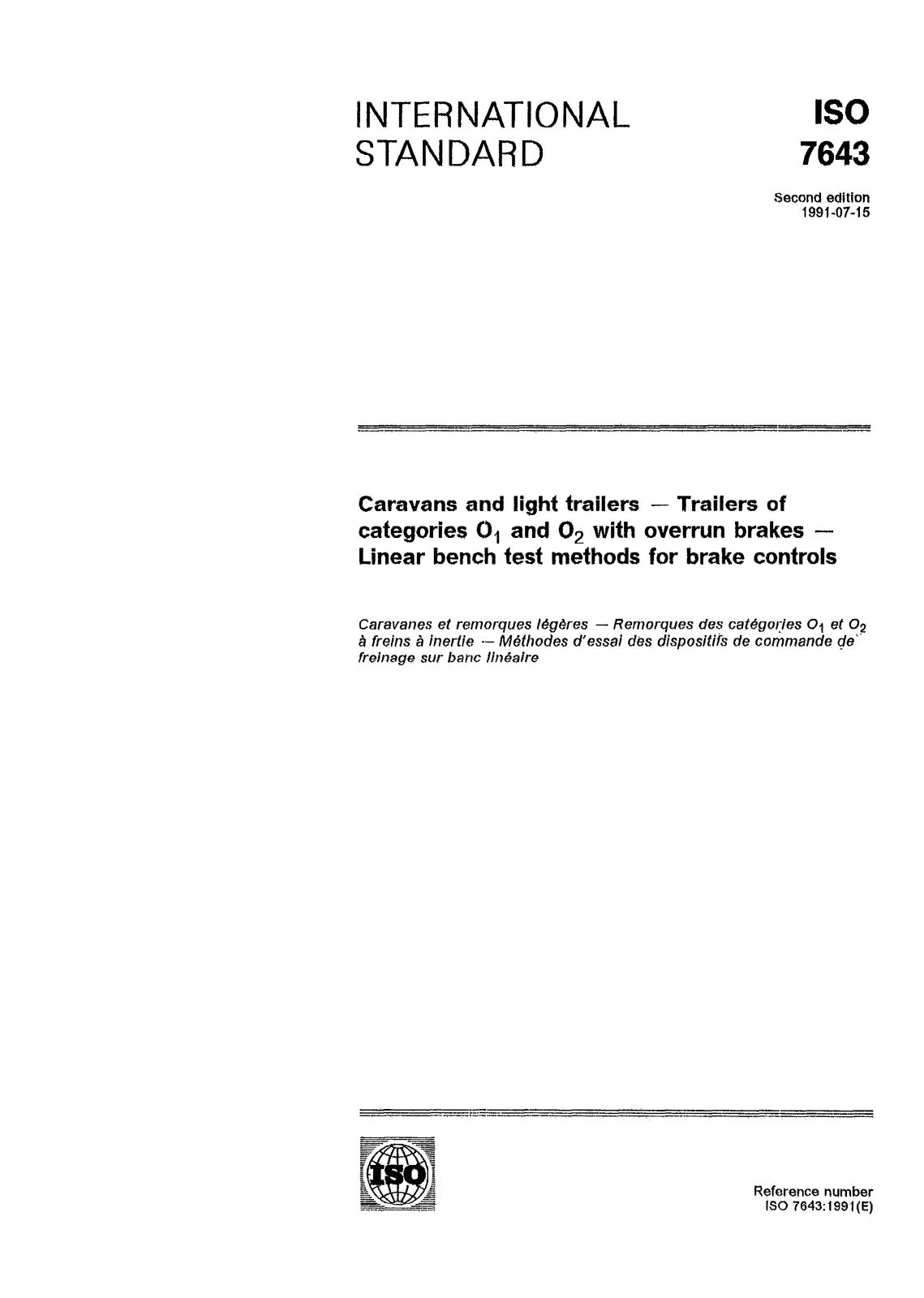

ISO 7643:1991 is an international standard developed by the International Organization for Standardization (ISO) that specifies linear bench test methods for brake controls used in caravans and light trailers. Specifically, it applies to trailers of categories 01 and 02 equipped with overrun brakes. This second edition, published in 1991, updates and replaces the first edition from 1983 by revising certain values and updating references.
The standard provides a comprehensive framework for the type approval testing of braking control devices, detailing the required test bench setup, key measurement parameters, and detailed test procedures. It supports compliance with United Nations ECE Regulation No. 13 on vehicle braking requirements, making it an essential reference for manufacturers, testing laboratories, and regulatory authorities in the field of trailer brake safety.
Key Topics
ISO 7643:1991 focuses on the following core areas:
-
Test Bench Specifications: Defines the configuration of the linear test bench capable of simulating operational conditions, including force application, control travel measurement, and the ability to test under oscillation conditions.
-
Measured Parameters: Includes critical brake control metrics such as:
- Travel of the control device (S)
- Effective travel and loss of travel
- Spare travel of the master cylinder (for hydraulic systems)
- Reduction ratios for both mechanical and hydraulic transmissions
- Insertion force and maximum force at coupling head
- Force threshold and supplementary force of the control device
- Efficiency of the inertia control device
-
Test Procedures:
- Force measurements during insertion and retraction of the brake control
- Determination of minimum and maximum application range forces
- Static strength test to ensure control device durability and free movement after load application
- Separate methods for mechanical and hydraulic transmission controls
-
Ambient Test Conditions: Tests must be carried out at an ambient temperature of 20°C ± 10°C to ensure consistency.
-
Safety and Durability Checks: After testing, inspection requirements ensure no permanent deformation or damage affecting brake control performance.
Applications
ISO 7643:1991 is widely applicable in the design, manufacturing, and regulatory approval of braking systems for caravans and light trailers, especially those with:
- Overrun brakes that rely on inertia to activate braking.
- Categories 01 (single axle trailers up to 0.75 t maximum mass)
- Categories 02 (multi-axle trailers up to 3.5 t maximum mass)
This standard is crucial for:
- Vehicle manufacturers designing trailer braking systems to meet international safety and performance criteria.
- Certification bodies conducting type approval tests to verify compliance before trailers enter the market.
- Testing laboratories performing precise and repeatable bench tests for control devices, ensuring reliable brake performance.
- Regulatory compliance, as the methods complement ECE Regulation No. 13 regarding vehicle braking standards.
By harmonizing test methods, ISO 7643 helps increase safety, consistency, and trust in trailer brake systems worldwide.
Related Standards
ISO 7643:1991 should be used in conjunction with other relevant vehicle and trailer standards to ensure comprehensive compliance:
- ECE Regulation No. 13 – Uniform provisions concerning the approval of vehicles with regard to braking systems; provides overarching regulatory requirements referred to in ISO 7643.

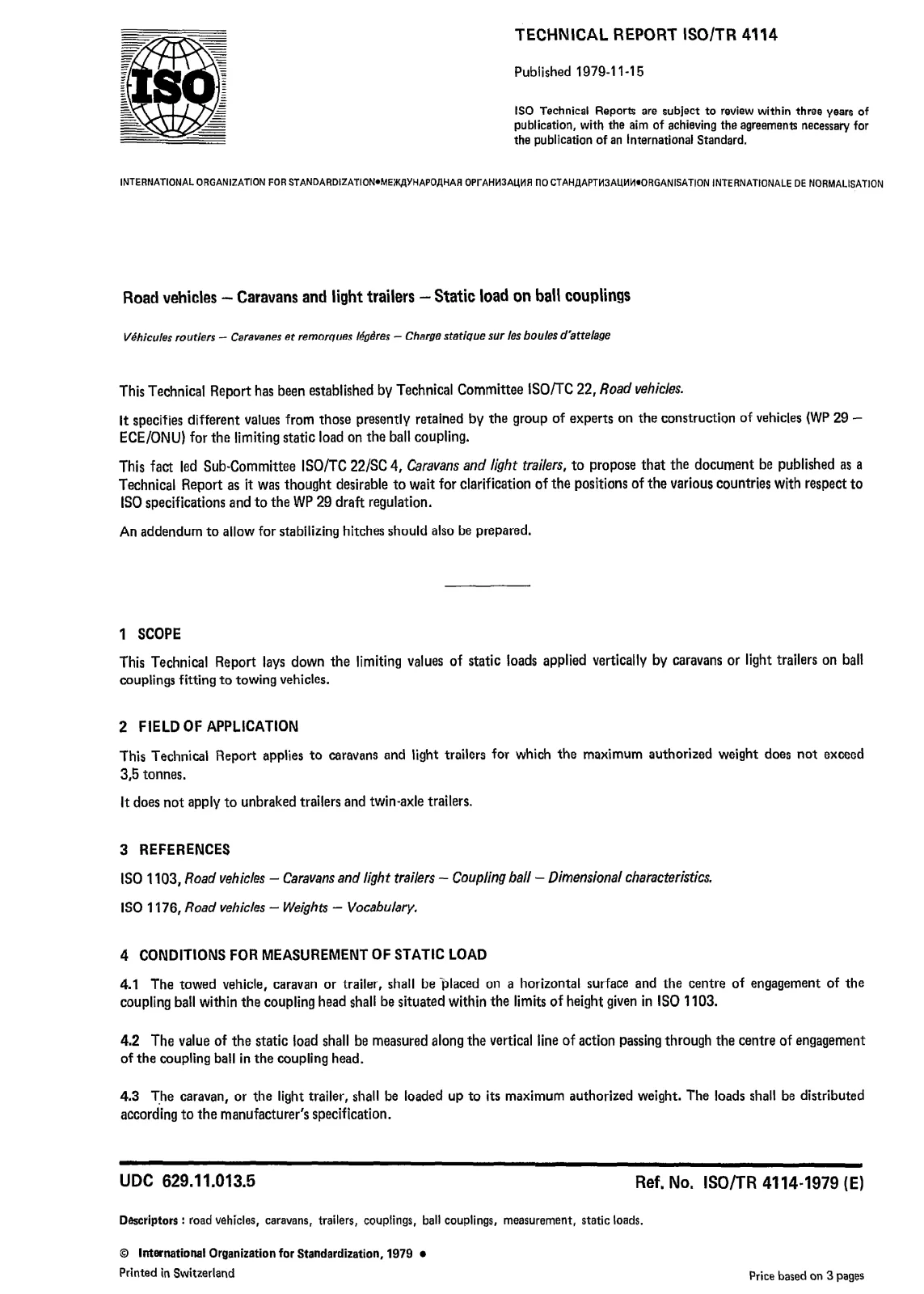

- ISO/TR 4114:1979 – Road vehicles - Caravans and light trailers - Static load on ball couplings; complements ISO 7643 by defining load parameters relevant to towing connections.
- Other standards published by ISO/TC 22 Sub-Committee SC 4, which specialize in caravans and light trailers, addressing additional design and test methodologies.
By adhering to ISO 7643:1991, stakeholders ensure that caravans and light trailers are equipped with brakes tested under rigorous, repeatable bench conditions, thus promoting safer towing experiences and regulatory compliance worldwide.
