Overview
ISO 657-21:1983 is an international standard developed by the International Organization for Standardization (ISO) focusing on hot-rolled steel T-sections with equal depth and flange width. This standard provides precise specifications for the dimensions and sectional properties of these steel profiles, ensuring uniformity and consistency in manufacturing and engineering applications. The document is essential for steel fabricators, structural engineers, and designers working with hot-rolled steel sections, especially T-sections utilized in various construction and industrial projects.
Key Topics
-
Scope and Field of Application
Defines the dimensional standards for hot-rolled steel T-sections where the depth and flange width are equal, providing comprehensive guidelines relevant to manufacturing and quality control.
-
Dimensions Specification
Detailed tables present exact measurements such as depth, flange width, thickness, and radii for different T-section sizes. This ensures compatibility in structural design and aids accurate material estimation.
-
Sectional Properties
Includes key sectional properties for each T-section, such as:
- Cross-sectional area (cm²)
- Mass per meter (kg/m)
- Geometrical properties related to the centroid and axes, essential for calculating strength, bending resistance, and load capacity.
Applications
ISO 657-21:1983 serves as a critical reference for industries dealing with steel structures requiring standardized T-sections, notably:
-
Structural Engineering
Facilitates design and verification of steel frameworks, ensuring safety and compliance by using well-defined sectional properties for load-bearing T-sections.
-
Construction
Widely applied in building frameworks, bridges, and industrial facilities where hot-rolled steel T-sections are used as structural elements such as beams, supports, and reinforcements.
-
Manufacturing
Guides hot-rolling mills and steel fabricators on exact dimensions and tolerances, enabling efficient production and interchangeability of steel parts.
-
Metal Fabrication
Used for producing metal components consistent in size and shape, reducing errors and material waste in fabrication processes.
Related Standards
For comprehensive steel profile standardization and compatibility, ISO 657-21:1983 relates to the broader ISO 657 series and other key standards, including:
-
ISO 657 (General Standard for Hot-Rolled Steel Sections)
Covers a wider range of steel profile shapes including I, H, U, and L sections with detailed dimensional requirements for structural steel products.
-
ISO 4998 (Steel Sections - Hot-Rolled Steel Angles and Channels)
Complementary standard addressing other steel section types frequently used alongside T-sections in construction.
-
ISO 4967 (Steel – Hot-rolled Sections - Technical Delivery Conditions)
Provides specifications on quality and testing measures applicable to steel sections ensuring performance requirements are met.
Keywords: ISO 657-21 steel sections, hot-rolled T-sections, steel dimensions standard, structural steel profiles, sectional properties of steel, steel profile dimensions, steel fabrication standards, steel construction profiles.

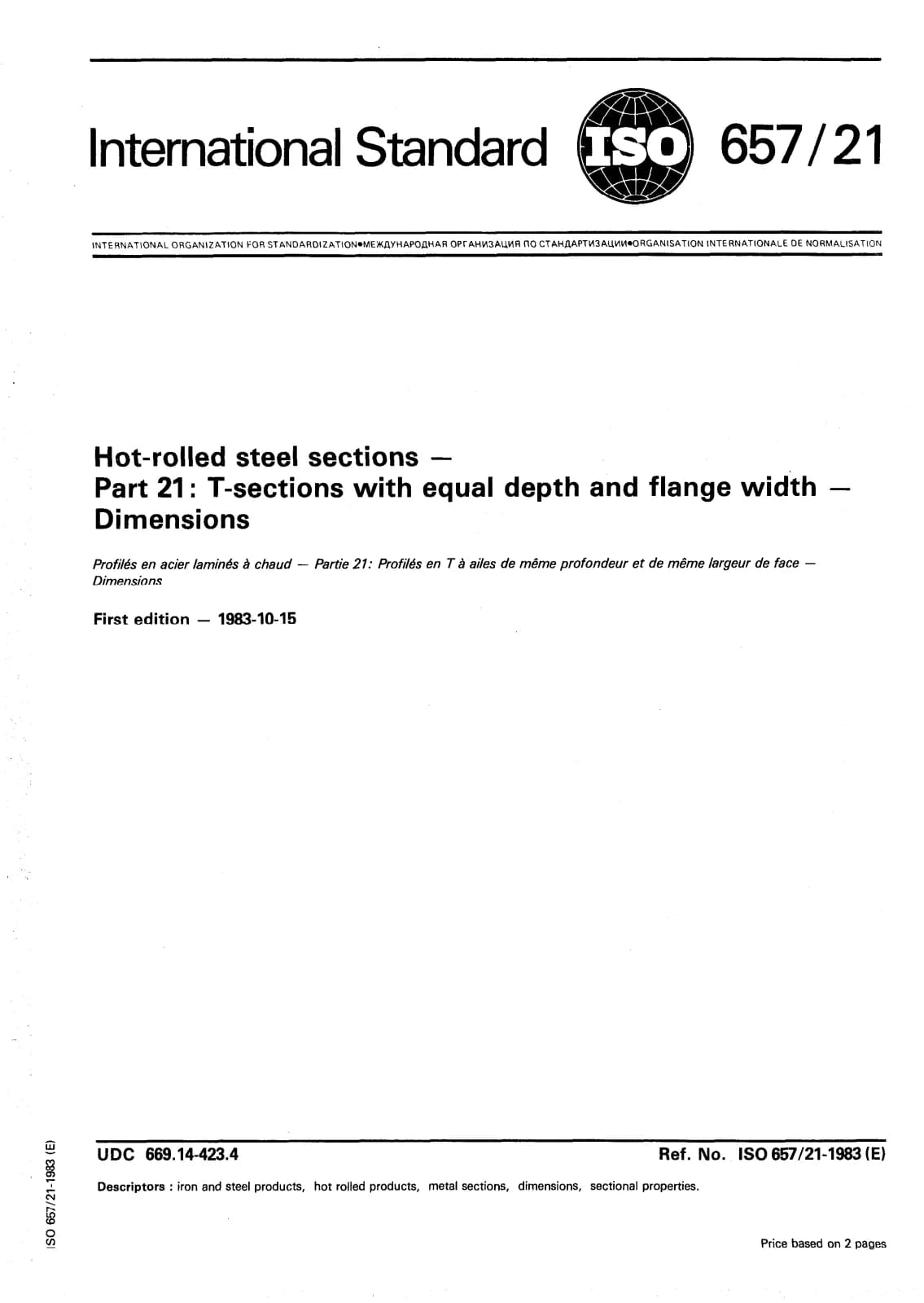

Открыть превью (PDF)Hot-rolled steel sections — Part 21: T-sections with equal depth and flange width — Dimensions
