ISO 6182-4:2019 PDF

Fire protection — Automatic sprinkler systems — Part 4: Requirements and test methods for quick opening devices

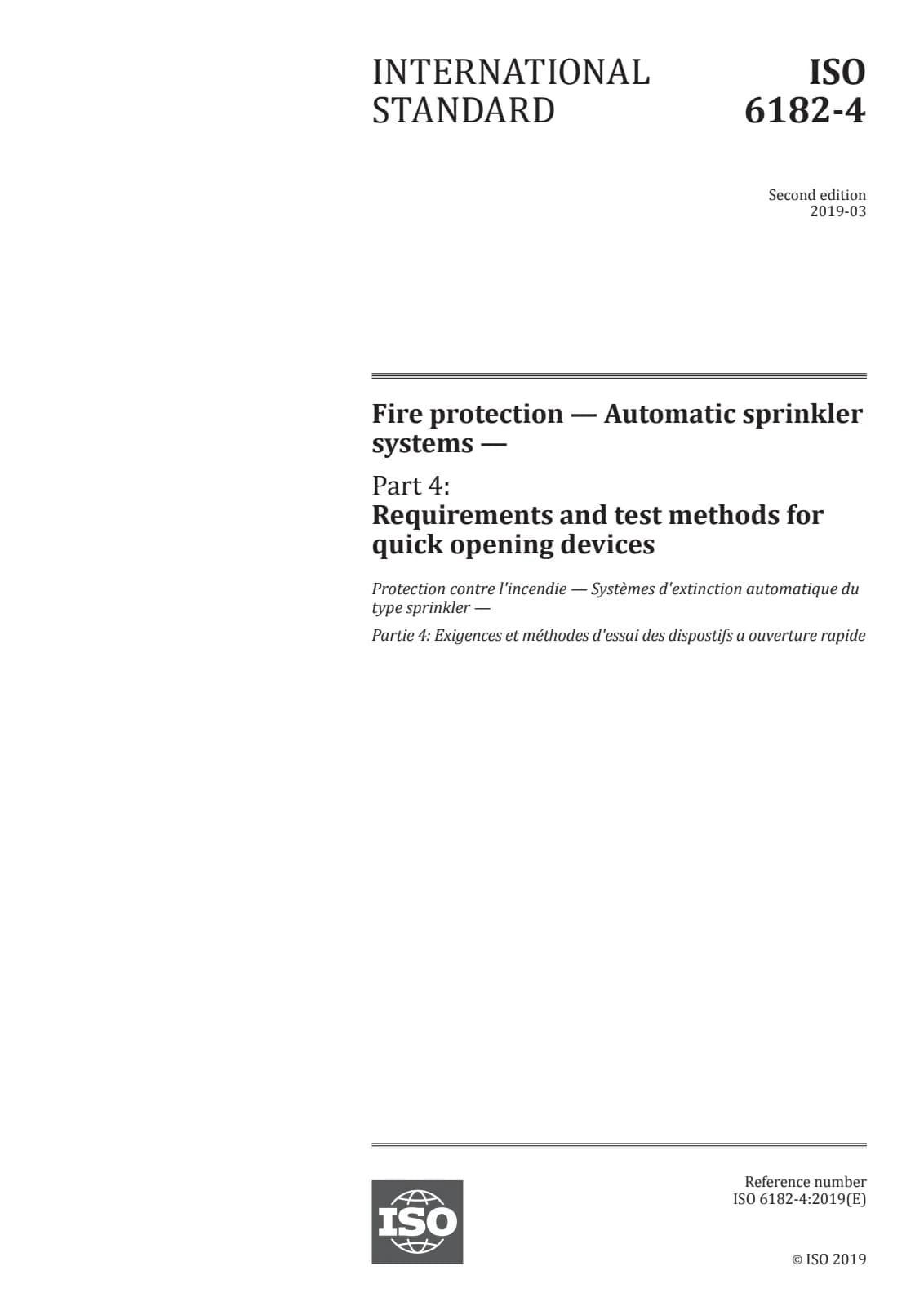

Первая страница стандарта ISO 6182-4:2019

Открыть превью (PDF)

Название (английский):

ISO 6182-4:2019

Fire protection — Automatic sprinkler systems — Part 4: Requirements and test methods for quick opening devices

Статус документа:: Отменён
Формат:: Электронный (PDF)
Количество страниц:: 8
Дата публикации:: 26 февраля 2019 г.
Издание:: ISO IS 6182 edition 2 version 1
ICS:: 13.220.20

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:120 €

Описание (английский):

This document specifies the performance and testing requirements for accelerators used with dry pipe valves in fire protection systems to hasten the operation of the valves when one or more sprinklers operate.

Технические детали

Технический комитет: ISO/TC 21/SC 5 - Fixed firefighting systems using water
SKU: ISO 6182-4:2019

Abstract

Overview

ISO 6182-4:2019 - Fire protection - Automatic sprinkler systems - Part 4: Requirements and test methods for quick opening devices - specifies performance and test requirements for accelerators (quick-opening devices) used with dry pipe valves. The standard ensures these devices reliably hasten valve operation when one or more sprinklers operate, improving response time in dry-pipe sprinkler systems.

Key topics and technical requirements

Scope and definitions: Defines accelerator, antiflooding device, holding chamber, rated working pressure and service pressure.
Rated working pressure: Minimum rated working pressure is 1.2 MPa (12 bar).
Leakage tests:
- Pneumatic leak test: 0.7 MPa for 1 minute (no leakage).
- Hydrostatic leak test: 2× rated working pressure for 5 minutes (no leakage).
Strength tests: All parts must withstand 4× rated working pressure for 5 minutes without permanent distortion.
Component durability: Springs and diaphragms must survive 5 000 cycles of normal operation (≤ 6 cycles/min). Sealing elements must show no damage after operational tests.
Materials and construction: Bodies/covers require corrosion resistance at least equivalent to cast iron; non-metallic body parts limited (no plastics with melting point

Overview

Key topics and technical requirements

Scope and definitions: Defines accelerator, antiflooding device, holding chamber, rated working pressure and service pressure.
Rated working pressure: Minimum rated working pressure is 1.2 MPa (12 bar).
Leakage tests:
- Pneumatic leak test: 0.7 MPa for 1 minute (no leakage).
- Hydrostatic leak test: 2× rated working pressure for 5 minutes (no leakage).
Strength tests: All parts must withstand 4× rated working pressure for 5 minutes without permanent distortion.
Component durability: Springs and diaphragms must survive 5 000 cycles of normal operation (≤ 6 cycles/min). Sealing elements must show no damage after operational tests.
Materials and construction: Bodies/covers require corrosion resistance at least equivalent to cast iron; non-metallic body parts limited (no plastics with melting point
