ISO 603-4:1999 PDF

Bonded abrasive products — Dimensions — Part 4: Grinding wheels for surface grinding/peripheral grinding

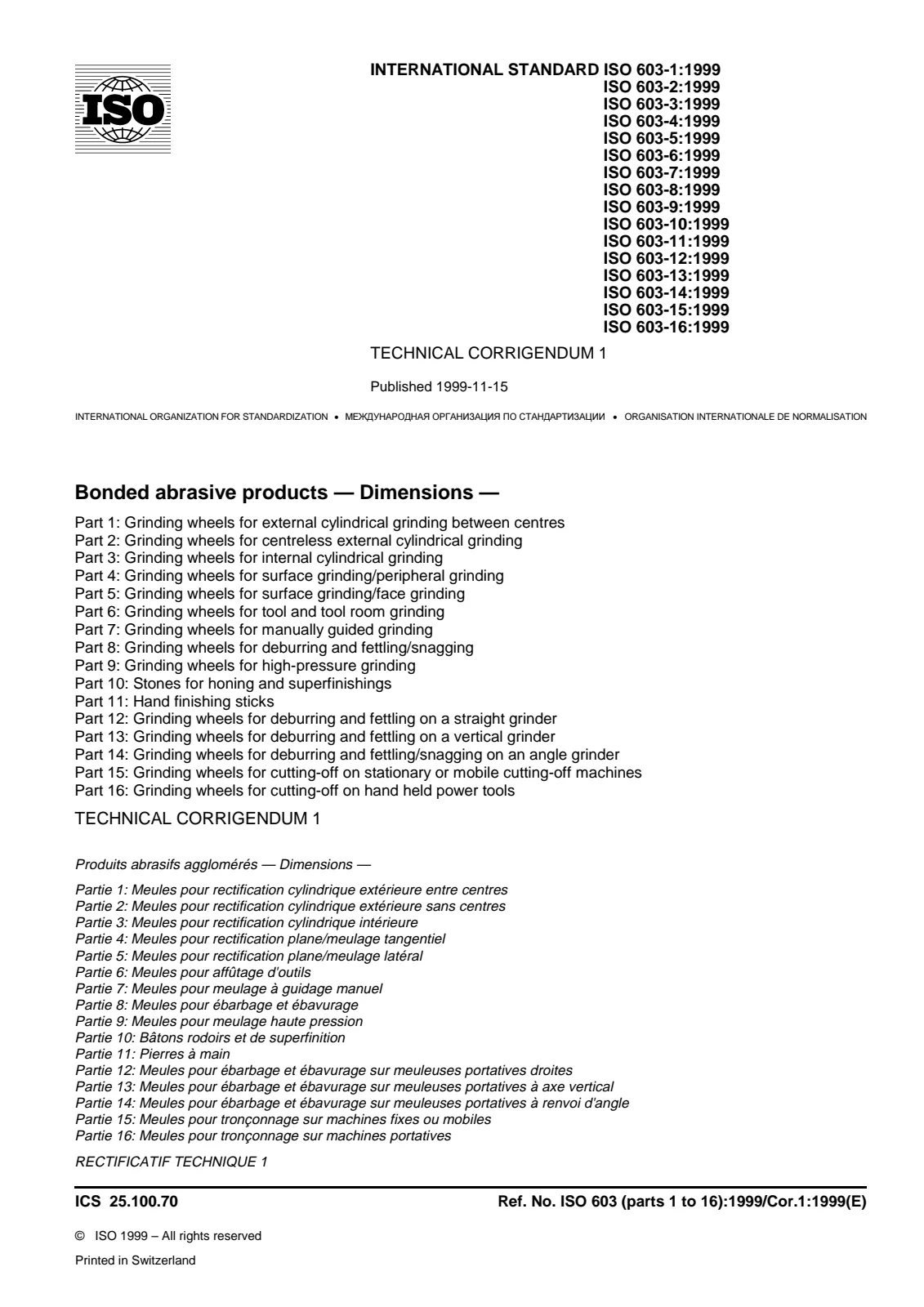

Первая страница стандарта ISO 603-4:1999

Открыть превью (PDF)

Название (английский):

ISO 603-4:1999

Bonded abrasive products — Dimensions — Part 4: Grinding wheels for surface grinding/peripheral grinding

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 16
Дата публикации:: 15 июля 1999 г.
Издание:: ISO IS 603 edition 1 version 1
ICS:: 25.100.70

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:240 €

Описание (английский):

La présente partie de l'ISO 603 spécifie les dimensions nominales, en millimètres, des meules de:- Type 1: Meule plate- Type 5: Meule à un embrèvement- Type 7: Meule à deux embrèvements- Type 20: Meule à dépouille sur un côté- Type 21: Meule à dépouille sur deux côtés- Type 22: Meule à dépouille sur un côté et à embrèvement sur l'autre- Type 23: Meule à dépouille et à embrèvement sur le même côté- Type 24: Meule à dépouille et à embrèvement sur un côté, embrèvement sur l'autre- Type 25: Meule à dépouille et à embrèvement sur un côté, dépouille sur l'autre- Type 26: Meule à dépouille et à embrèvement sur deux côtés- Type 38: Meule à moyeu- Type 39: Meule à deux moyeuxCes produits abrasifs agglomérés sont utilisés pour le meulage des surfaces planes lorsque la pièce travaillée est fixée sur une table à mouvement alternatif. La pièce travaillée et la meule sont guidées mécaniquement.

Технические детали

Технический комитет: ISO/TC 29/SC 5 - Grinding wheels and abrasives
SKU: ISO 603-4:1999

Abstract

Overview

ISO 603-4:1999 - "Bonded abrasive products - Dimensions - Part 4: Grinding wheels for surface grinding/peripheral grinding" defines the nominal dimensions (mm), types and designation rules for bonded grinding wheels used in surface and peripheral grinding. It applies to wheels intended for grinding plane surfaces where the workpiece is secured to a reciprocating table and both workpiece and grinding wheel are mechanically guided. The standard standardizes shapes (Types 1, 5, 7, 20, 21, 22–26, 38, 39), dimension tables and the format for product designation.

Key topics and technical requirements

Scope and Types: Specifies a range of wheel shapes - e.g., Type 1 (straight), Type 5/7 (recessed), Types 20–26 (relieved/recessed combinations), Type 38/39 (hubbed/double-hubbed) - with nominal dimension tables in millimetres.
Dimensions: Nominal diameters, thicknesses, bore/hub sizes and recess/relief parameters are tabulated for each wheel type (millimetre units).
Designation format: Defines the complete product designation elements: product name, ISO reference, type (shape), dimensions, internal specifications (abrasive type, grain size, grade, structure, bond) and maximum operating speed. The standard includes an example designation format.
Normative requirements:
- Tolerances and run-out: Refer to ISO 13942 for limit deviations and run-out tolerances.
- Balancing: Testing and balancing requirements reference ISO 6103.
- Marking and general requirements: Per ISO 525.
Specifications: Detailed internal specifications (grain size, bond, etc.) are left to manufacturer discretion but shall be declared per ISO 525 conventions.

Applications and who uses it

ISO 603-4 is primarily used by:

Abrasive product manufacturers - for designing and producing grinding wheels to internationally accepted dimensional specifications.
Machine builders and OEMs - to ensure wheel compatibility with surface grinding/peripheral grinding machines.
Purchasing and procurement - to specify exact wheel type and dimensions in purchase orders.
Quality assurance and inspection - to verify wheel dimensions, marking and balancing against standardized requirements.
Toolroom and maintenance personnel - for correct wheel selection, identification and safe operation at specified maximum speeds.

Practical applications include surface finishing, plane-surface grinding of components secured on reciprocating tables, and peripheral grinding operations in metalworking and toolrooms.

Related standards

ISO 525:1999 - Bonded abrasive products - General requirements
ISO 6103:1999 - Static balancing of grinding wheels - Testing
ISO 13942 - Bonded abrasive products - Limit deviations and run-out tolerances (referenced)
ISO 8486-1 / ISO 8486-2 - Grain size distribution (bibliography)

Keywords: ISO 603-4, bonded abrasive products, grinding wheels, surface grinding, peripheral grinding, dimensions, tolerances, balancing, wheel designation.

Overview

Key topics and technical requirements

Scope and Types: Specifies a range of wheel shapes - e.g., Type 1 (straight), Type 5/7 (recessed), Types 20–26 (relieved/recessed combinations), Type 38/39 (hubbed/double-hubbed) - with nominal dimension tables in millimetres.
Dimensions: Nominal diameters, thicknesses, bore/hub sizes and recess/relief parameters are tabulated for each wheel type (millimetre units).
Designation format: Defines the complete product designation elements: product name, ISO reference, type (shape), dimensions, internal specifications (abrasive type, grain size, grade, structure, bond) and maximum operating speed. The standard includes an example designation format.
Normative requirements:
- Tolerances and run-out: Refer to ISO 13942 for limit deviations and run-out tolerances.
- Balancing: Testing and balancing requirements reference ISO 6103.
- Marking and general requirements: Per ISO 525.
Specifications: Detailed internal specifications (grain size, bond, etc.) are left to manufacturer discretion but shall be declared per ISO 525 conventions.

Applications and who uses it

ISO 603-4 is primarily used by:

Abrasive product manufacturers - for designing and producing grinding wheels to internationally accepted dimensional specifications.
Machine builders and OEMs - to ensure wheel compatibility with surface grinding/peripheral grinding machines.
Purchasing and procurement - to specify exact wheel type and dimensions in purchase orders.
Quality assurance and inspection - to verify wheel dimensions, marking and balancing against standardized requirements.
Toolroom and maintenance personnel - for correct wheel selection, identification and safe operation at specified maximum speeds.

Practical applications include surface finishing, plane-surface grinding of components secured on reciprocating tables, and peripheral grinding operations in metalworking and toolrooms.

Related standards

ISO 525:1999 - Bonded abrasive products - General requirements
ISO 6103:1999 - Static balancing of grinding wheels - Testing
ISO 13942 - Bonded abrasive products - Limit deviations and run-out tolerances (referenced)
ISO 8486-1 / ISO 8486-2 - Grain size distribution (bibliography)

Keywords: ISO 603-4, bonded abrasive products, grinding wheels, surface grinding, peripheral grinding, dimensions, tolerances, balancing, wheel designation.
