ISO 5699:1979 PDF

Agricultural machines, implements and equipment — Dimensions for mechanical loading with bulk goods

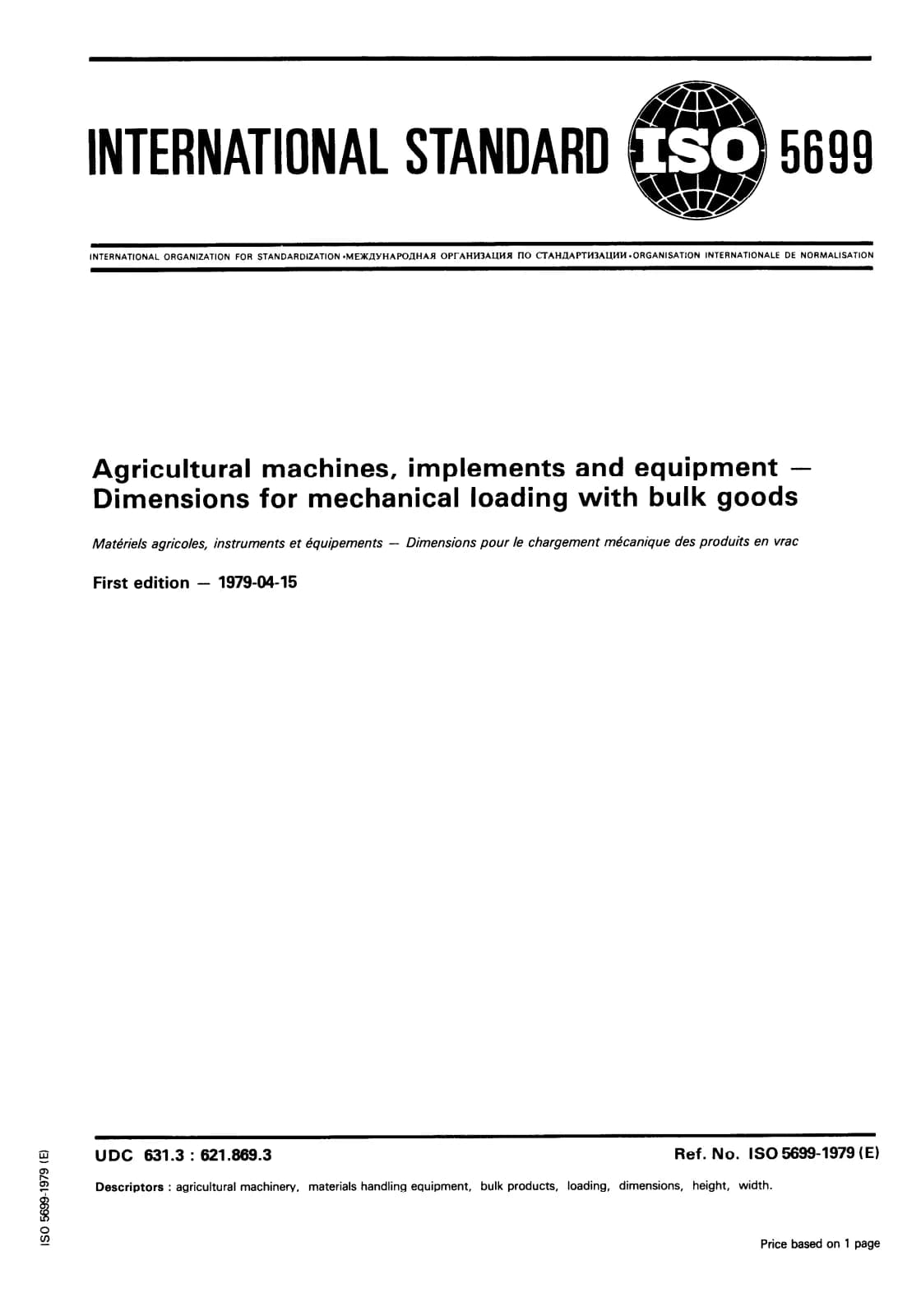

Открыть превью (PDF)

Название (английский):

ISO 5699:1979

Agricultural machines, implements and equipment — Dimensions for mechanical loading with bulk goods

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 1
Дата публикации:: 1 апреля 1979 г.
Издание:: ISO IS 5699 edition 1 version 1
ICS:: 65.060.01

Язык документа:

ruen

Срок поставки:1 раб. дн. (перевод)

Цена:15 €

Описание (английский):

Specifies the maximum admissible height and width dimension for machines which are engaged in mechanical loading procedures. Represents a recommendation for thr production of hoisting devices, transporters and stores for bulk goods. Applies to machines, implements and transporters equipped with a hopper for bulk goods and which are loaded mechanically. Aircraft are excluded.

Технические детали

Технический комитет: ISO/TC 23 - Tractors and machinery for agriculture and forestry
SKU: ISO 5699:1979

Abstract

Overview - ISO 5699:1979 (Dimensions for mechanical loading with bulk goods)

ISO 5699:1979 specifies recommended maximum and minimum dimensions for agricultural machines, implements and transport equipment that are mechanically loaded with bulk goods (e.g., via hoppers). The standard gives dimensional limits for safe and compatible production of hoisting devices, transporters and storage installations used in mechanical loading operations. It applies to machines and transporters equipped with a hopper and excludes aircraft.

Key topics and technical requirements

The standard defines core dimensional terms and specific size recommendations used to design and check equipment for mechanical loading of bulk goods:

Definitions
- Loading height (h) - maximum admissible loading height above ground.
- Overall width (b) - maximum admissible loading width.
- Passage height (H) - minimum height of doors, silo outlets or clearance under chutes.
- Passage width (B) - minimum width of openings or gates.
Recommended dimensions (from ISO 5699:1979)
- Loading by tractors with front loaders:
  - h = 3000 mm (loading height)
  - b = 3000 mm (overall width)
  - H = 4200 mm (passage height)
  - B = 3500 mm (passage width)
- Loading of transport equipment by another loading device:
  - h = 3800 mm
  - b = 2500 mm
  - H = 4200 mm
  - B = 3500 mm
Scope limits
- Applies to agricultural machinery, implements and transporters with hoppers for bulk goods loaded mechanically.
- Acts as a recommendation for manufacture of lifting, transport and storage equipment.
- Aircraft are explicitly excluded.

Practical applications and users

ISO 5699:1979 is practical for professionals involved in agricultural material handling and facility design:

Equipment designers and manufacturers of loaders, hoppers, transporters and hoisting devices - to ensure compatibility and interchangeability.
Farm equipment engineers and maintenance teams - for evaluating whether machines will fit existing storage silos, doors and loading chutes.
Facility and logistics planners - when designing gateway, silo and storage clearances to accommodate common loading equipment.
Safety and compliance officers - to harmonize equipment layout with recommended dimensional limits for safer mechanical loading operations.

Related guidance

ISO 5699 was developed by ISO/TC 23 (tractors and machinery for agriculture and forestry). It complements other standards and guidance on agricultural machinery dimensions, safety and material handling. When applying ISO 5699, consult related agricultural machinery standards and local regulations for safety, machine guarding and transport requirements.

Keywords: ISO 5699:1979, dimensions for mechanical loading, agricultural machines, bulk goods, loading height, loading width, hopper, hoisting devices, transporters, silo clearance.

Overview - ISO 5699:1979 (Dimensions for mechanical loading with bulk goods)

Key topics and technical requirements

The standard defines core dimensional terms and specific size recommendations used to design and check equipment for mechanical loading of bulk goods:

Definitions
- Loading height (h) - maximum admissible loading height above ground.
- Overall width (b) - maximum admissible loading width.
- Passage height (H) - minimum height of doors, silo outlets or clearance under chutes.
- Passage width (B) - minimum width of openings or gates.
Recommended dimensions (from ISO 5699:1979)
- Loading by tractors with front loaders:
  - h = 3000 mm (loading height)
  - b = 3000 mm (overall width)
  - H = 4200 mm (passage height)
  - B = 3500 mm (passage width)
- Loading of transport equipment by another loading device:
  - h = 3800 mm
  - b = 2500 mm
  - H = 4200 mm
  - B = 3500 mm
Scope limits
- Applies to agricultural machinery, implements and transporters with hoppers for bulk goods loaded mechanically.
- Acts as a recommendation for manufacture of lifting, transport and storage equipment.
- Aircraft are explicitly excluded.

Practical applications and users

ISO 5699:1979 is practical for professionals involved in agricultural material handling and facility design:

Equipment designers and manufacturers of loaders, hoppers, transporters and hoisting devices - to ensure compatibility and interchangeability.
Farm equipment engineers and maintenance teams - for evaluating whether machines will fit existing storage silos, doors and loading chutes.
Facility and logistics planners - when designing gateway, silo and storage clearances to accommodate common loading equipment.
Safety and compliance officers - to harmonize equipment layout with recommended dimensional limits for safer mechanical loading operations.

Related guidance

Keywords: ISO 5699:1979, dimensions for mechanical loading, agricultural machines, bulk goods, loading height, loading width, hopper, hoisting devices, transporters, silo clearance.
