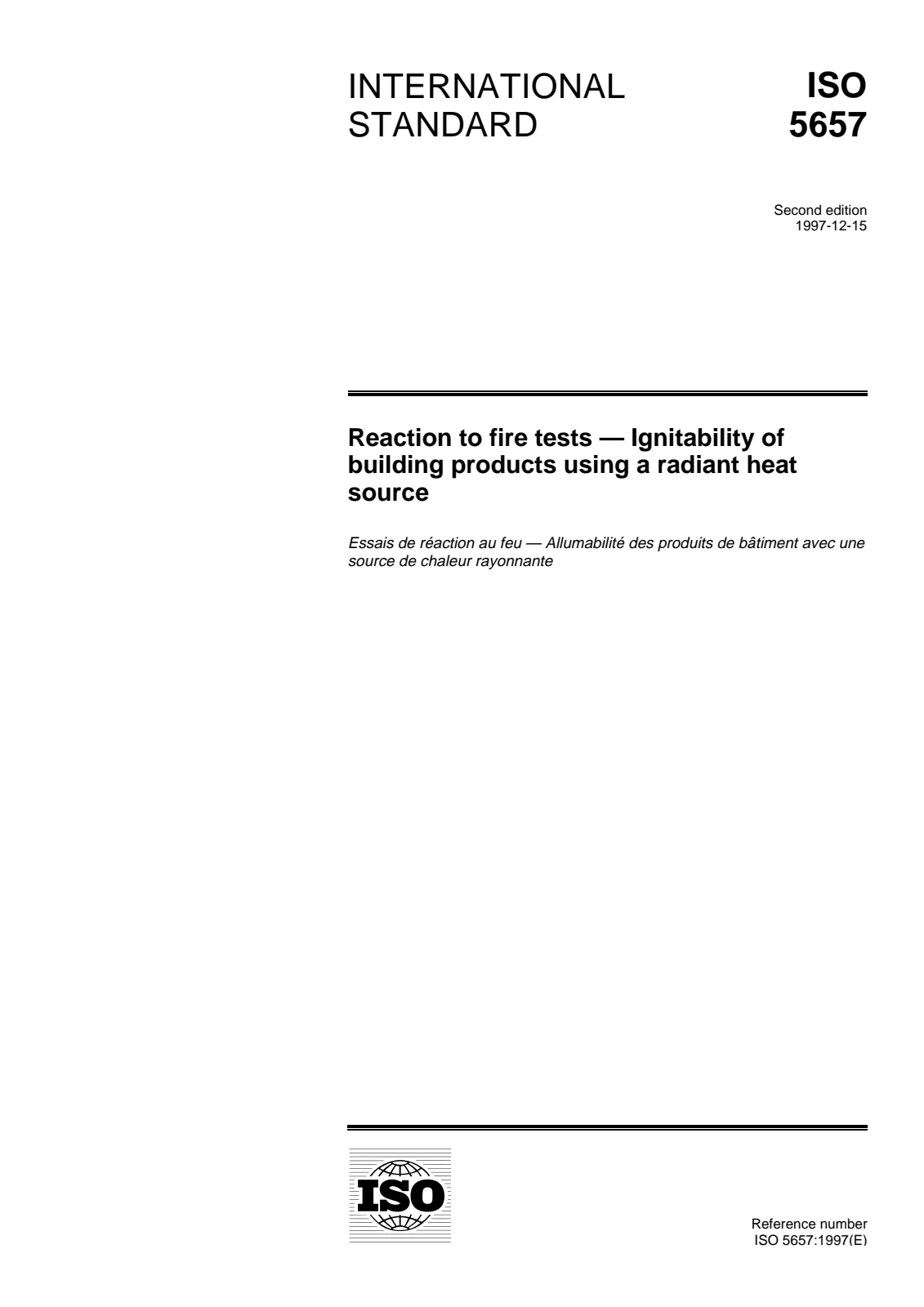

ISO 5657:1997 PDF

Reaction to fire tests — Ignitability of building products using a radiant heat source

Открыть превью (PDF)

Название (английский):

ISO 5657:1997

Reaction to fire tests — Ignitability of building products using a radiant heat source

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 41
Дата публикации:: 4 декабря 1997 г.
Издание:: ISO IS 5657 edition 2 version 1
ICS:: 13.220.50

Язык документа:

ruen

Срок поставки:7 раб. дн. (перевод)

Цена:615 €

Технические детали

Технический комитет: ISO/TC 92/SC 1 - Fire initiation and growth
SKU: ISO 5657:1997

Abstract

Overview

ISO 5657:1997 - "Reaction to fire tests - Ignitability of building products using a radiant heat source" specifies a laboratory method to assess the ignitability of essentially flat building products, composites or assemblies when exposed horizontally to a controlled radiant heat flux. The test is intended for comparative evaluation and quality control of materials and does not by itself predict full-scale fire behaviour.

Key topics and technical requirements

Test principle: specimens are irradiated on the exposed surface at constant irradiance (typical range 10–70 kW/m²) while a pilot flame is applied periodically above the centre to detect ignition.
Specimens: five specimens tested per irradiance level; nominal specimen size 165 mm × 165 mm; full thickness up to about 70 mm (thicker products are reduced to the required thickness).
Ignition definitions: distinguishes sustained surface ignition (flame still present after next pilot application, >4 s) and transitory ignition (

Overview

Key topics and technical requirements

Test principle: specimens are irradiated on the exposed surface at constant irradiance (typical range 10–70 kW/m²) while a pilot flame is applied periodically above the centre to detect ignition.
Specimens: five specimens tested per irradiance level; nominal specimen size 165 mm × 165 mm; full thickness up to about 70 mm (thicker products are reduced to the required thickness).
Ignition definitions: distinguishes sustained surface ignition (flame still present after next pilot application, >4 s) and transitory ignition (
