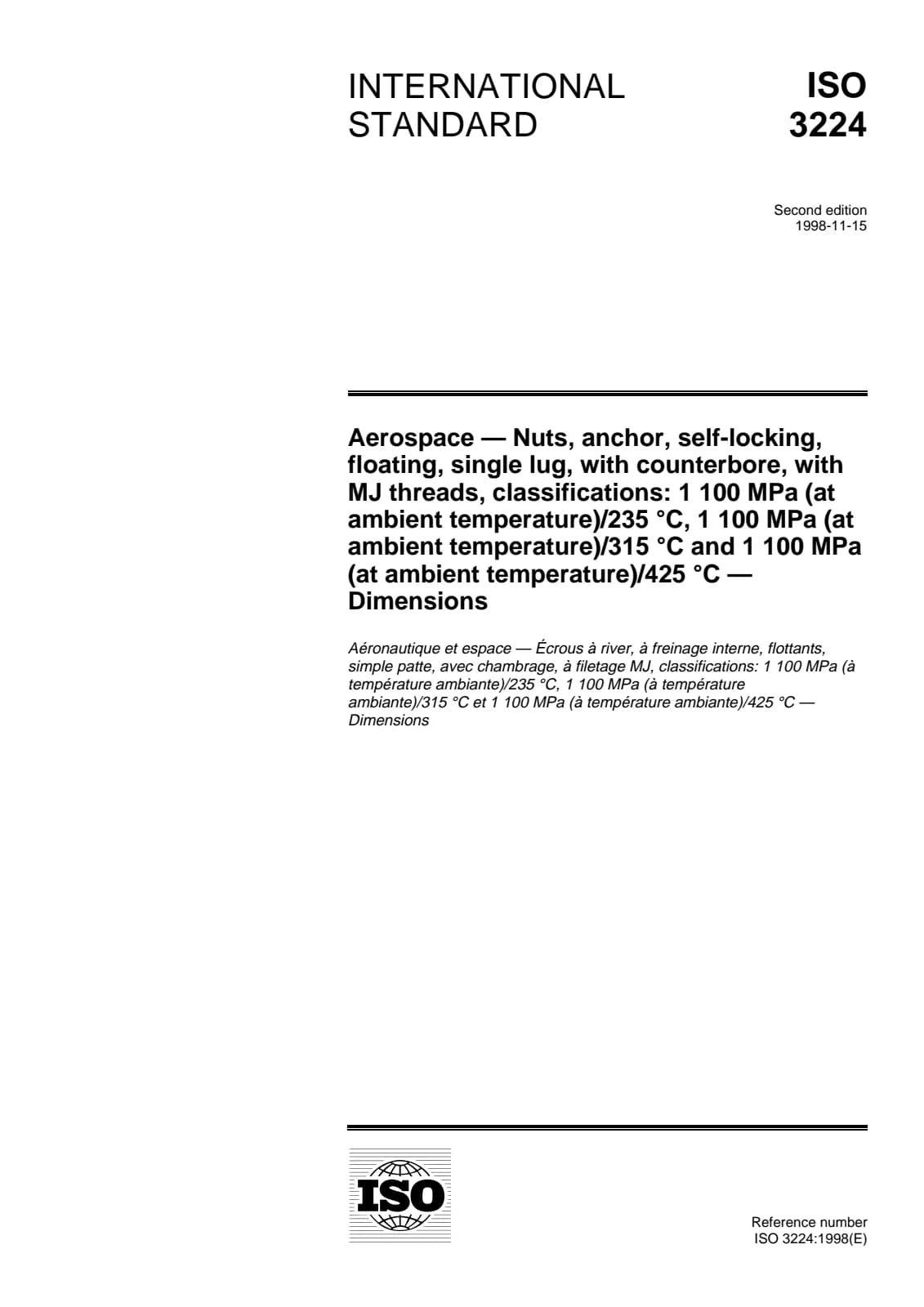

ISO 3224:1998 PDF
Aerospace — Nuts, anchor, self-locking, floating, single lug, with counterbore, with MJ threads, classifications: 1 100 MPa (at ambient temperature )/235 degrees C, 1 100 MPa (at ambient temperature )/315 degrees C and 1 100 MPa (at ambient temperature)/425 degrees C — Dimensions
Открыть превью (PDF)Aerospace — Nuts, anchor, self-locking, floating, single lug, with counterbore, with MJ threads, classifications: 1 100 MPa (at ambient temperature )/235 degrees C, 1 100 MPa (at ambient temperature )/315 degrees C and 1 100 MPa (at ambient temperature)/425 degrees C — DimensionsAerospace — Nuts, anchor, self-locking, floating, single lug, with counterbore, with MJ threads, classifications: 1 100 MPa (at ambient temperature )/235 degrees C, 1 100 MPa (at ambient temperature )/315 degrees C and 1 100 MPa (at ambient temperature)/425 degrees C — Dimensions
- Статус документа:
- Действующий
- Формат:
- Электронный (PDF)
- Количество страниц:
- 3
- Дата публикации:
- 26 ноября 1998 г.
- Издание:
- ISO IS 3224 edition 2 version 1
- ICS:
- 49.030.30
This International Standard specifies the dimensions of self-locking, floating, single lug anchor nuts, with counterbore, with MJ threads, of classifications: 1 100 MPa 1)/235 °C 2), 1 100 MPa 1)/315 °C 2) and 1 100 MPa 1)/425 °C 2). This International Standard is only applicable for the compilation of aerospace product standards.
Технические детали
- Технический комитет
- ISO/TC 20/SC 4 - Aerospace fastener systems
- SKU
- ISO 3224:1998
