Overview

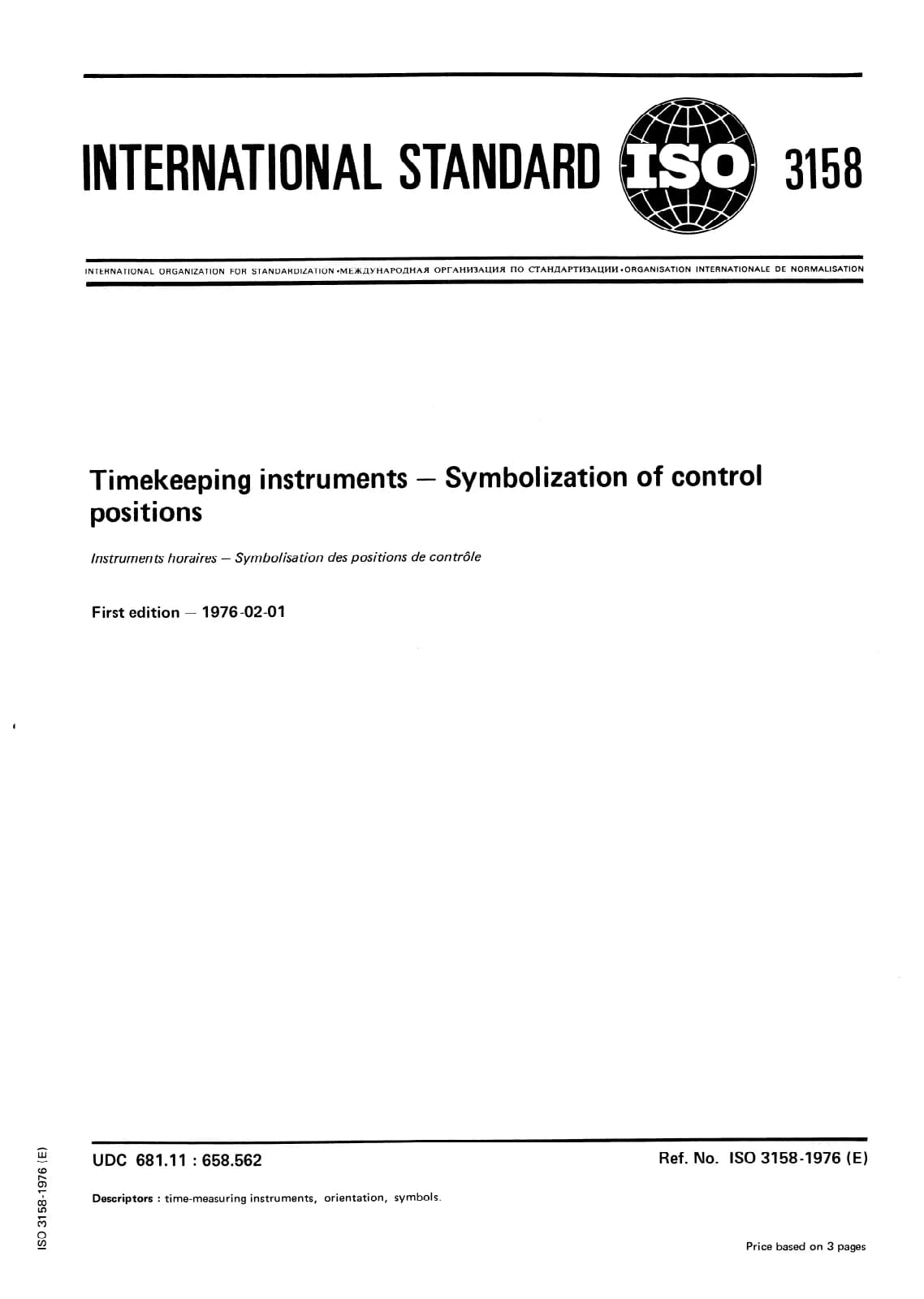

ISO 3158:1976, titled Timekeeping Instruments - Symbolization of Control Positions, is an international standard published by the International Organization for Standardization (ISO). It defines the symbols and designations used to represent and describe control or test positions for any timekeeping instrument regardless of its type, design, or size. The standard establishes a consistent framework for specifying the orientation and positioning of timekeeping devices during testing and calibration procedures.
First issued in 1976 by ISO technical committee ISO/TC 114 on horology, ISO 3158 applies universally to all kinds of clocks, watches, and movements, ensuring clear communication and uniformity in the horological industry. It addresses rotations and orientations by defining angular measurements and symbolic representations essential for quality control and technical documentation.
Key Topics
-
Control Positions Definition: ISO 3158 specifies the positions for testing timekeeping instruments based on two angular parameters:
- h: Rotation angle around the X-axis perpendicular to the dial plane, ranging from greater than 0° up to but not including 360°.
- θ (theta): Rotation angle describing inclination around an axis with limits from -90° to +90°, indicating tilt relative to the vertical plane.
-
Symbolization System: The standard provides a method to symbolize test positions either through abbreviations or words. For example:
- "12 H" or "12f" represents the 12 o'clock position facing up.
- "3 H" indicates 3 o'clock in the upward position.
- Horizontal positions use symbols like "CH" (dial up) and "FH" (case back up).
- Inclined positions add angle specifications, such as "12 H + 30°," indicating the dial is tilted 30 degrees away from the observer.
-
Orientation Conventions: The standard clarifies orientation relative to the observer and gravitational force, using a reference axis for consistency. Positive and negative angle values distinguish between rotation directions away or toward the observer.
-
Application to All Instruments: ISO 3158 applies to any timekeeping device-even those without a conventional dial, such as digital watches or standalone movements-by assuming a virtual dial for orientation references.
