Overview

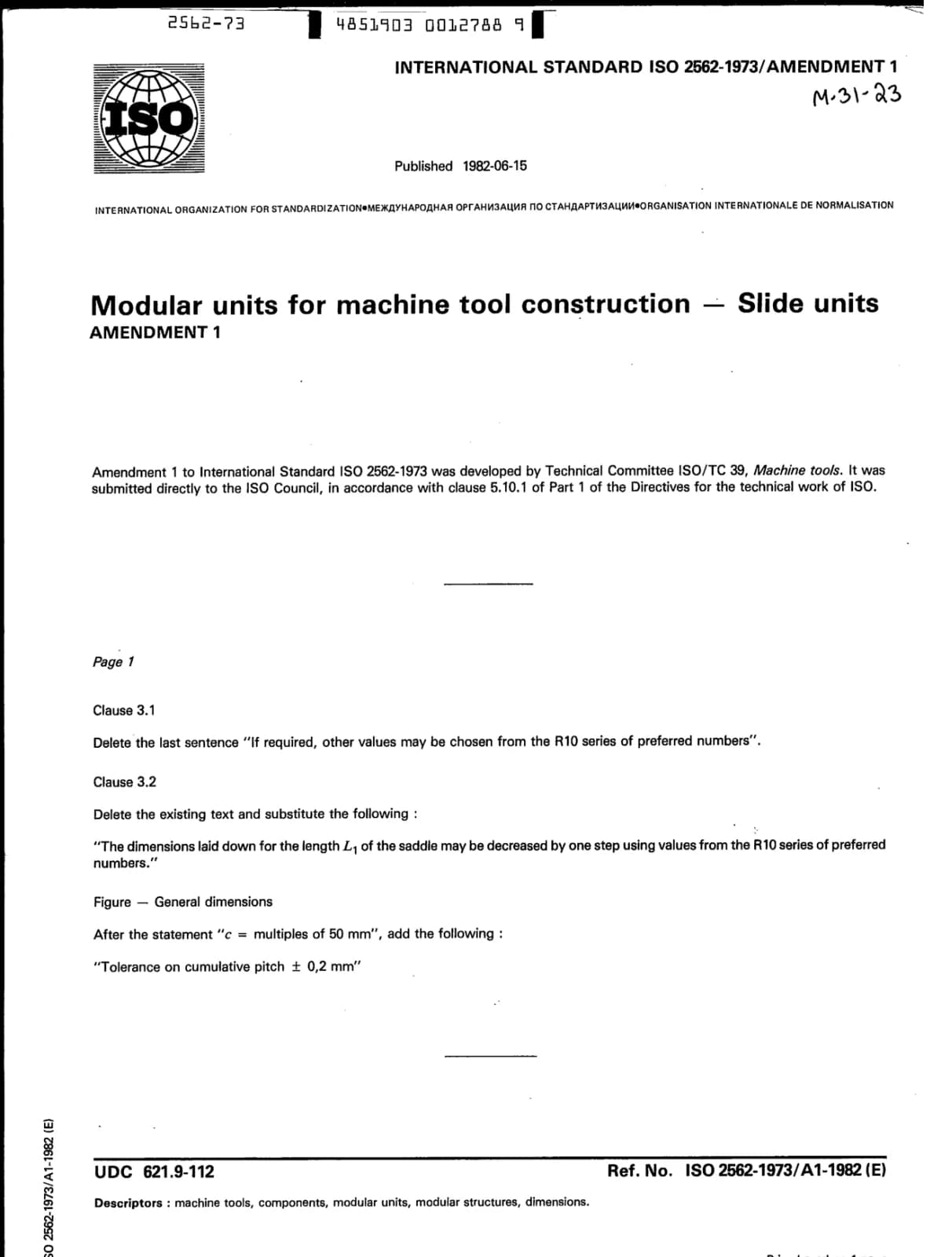

ISO 2562:1973 defines the modular units for machine tool construction, specifically focusing on slide units. This international standard outlines important dimensions and specifications to ensure the interchangeability and compatibility of slide units used in special machines constructed from these modular components. Established by ISO Technical Committee ISO/TC 39 on machine tools, this standard fosters uniformity in machine tool design worldwide, enabling easier sourcing, replacement, and assembly of slide units.
The document specifies nominal sizes, dimensional tolerances, and designation systems that contribute to modularity and standardization, facilitating better design practices and reducing engineering complexities.
Key Topics
- Nominal Sizes and Designations
The standard defines nine nominal sizes for slide units, based on the width of the saddle (W), namely:
- 125 mm
- 160 mm
- 200 mm
- 250 mm
- 320 mm
- 400 mm
- 500 mm
- 630 mm
- 800 mm
These sizes provide a clear framework for choosing modular slide units and guarantee interchangeability across various machine configurations.
- Dimensional Specifications
Key dimensions covered include:
- Stroke length (S) - adjustable according to preferred number series (R 5, R 10)
- Saddle length (L1) - extendable using R 10 series values
- Slide base length (L2) - affected by stroke adjustments
- Height (H) - which can be reduced per R 20 series values
The standard includes tables mapping these dimensions to nominal sizes, ensuring design consistency.
- Interchangeability Principles
The ISO 2562 standard emphasizes modular design that allows slide units from different machine tools to fit interchangeably, aiding in faster machine configuration changes, maintenance, and parts replacement.
Applications
ISO 2562:1973 is essential for industries that use modular machine tools with slide units, especially in:
- Custom machine tool manufacturing
- Special machine constructions requiring modular components
- Precision engineering sectors relying on standardized machine parts
- Maintenance operations needing compatible replacement units
Employing these standardized slide units results in:
- Reduced design complexity and engineering time
- Increased flexibility in machine tool assembly and scaling
- Lower costs due to standardized parts and easier sourcing
- Improved equipment uptime by simplifying repairs and upgrades
Machine designers and manufacturers leverage this standard to create versatile, modular machine tools that adhere to internationally accepted dimensions and quality benchmarks.
Related Standards
For holistic machine tool construction and modular design, consider referencing related ISO standards such as:
- ISO 230 – Test code for machine tools
- ISO 602 – Dimensions and designation of machine tool spindles
- ISO 26622 – Modular components for machine tools and industrial applications
- ISO 10541 – Modular fixtures for machine tool components
These standards collectively ensure a comprehensive approach to modularity, accuracy, and compatibility in machine tool engineering.
By following ISO 2562:1973, manufacturers and engineers can achieve consistent quality, ease of interchangeability, and greater efficiency in designing machine tools with modular slide units, driving innovation and operational excellence.
