Overview
ISO 22476-3:2005/Amd 1:2011 is an international standard that provides amendments to Part 3 of ISO 22476-3, which focuses on geotechnical investigation and field testing - specifically the Standard Penetration Test (SPT) using a split-barrel sampler. This amendment clarifies requirements related to the equipment, execution, and reporting of SPT procedures conducted as part of geotechnical site investigations. It aligns SPT practices with European standards EN 1997-1 and EN 1997-2, ensuring consistency and reliability in geotechnical field testing.
Issued by ISO (International Organization for Standardization), this amendment enhances the methodology and technical details for conducting SPT for soil characterization, improving data quality and facilitating safer foundation design and ground assessments.
Key Topics
-
Scope and Application
The amendment specifies updated requirements for the apparatus used in SPTs, proper execution procedures, and detailed reporting protocols. It applies primarily to tests done within geotechnical site investigations that complement direct reconnaissance methods.
-
Equipment Specifications
- Stiffness requirements for rods: AW rods for depths under 20 meters, BW rods for greater depths, following ISO 22475-1:2006.
- Straightness checks for rods using rotation tests, rolling on flat surfaces, or sliding through hollow tubes to ensure proper alignment.
- Use of stabilizing equipment for deeper and/or larger diameter boreholes to maintain vertical alignment.
-
Testing Procedures
- Execution includes penetration in phases (two phases at 150 mm or four phases at 75 mm increments).
- Definition and measurement of initial driving resistance (penetration of 150 mm or up to 25 hammer blows).
- Annual calibration of the hammer driving device and recalibration after modifications or repairs.
-
Reporting and Documentation
- SPT results recorded as raw blow counts without adjustments, with separate reporting of initial penetration and subsequent test penetration counts.
- Detailed logging of rod types, stabilizing equipment, number and depth of penetration phases, and any special conditions encountered during testing.
Applications
ISO 22476-3:2005/Amd 1:2011 is critical for:
-
Geotechnical Site Characterization
Standardizing field penetration tests enhances reliability in subsurface soil profiling required for engineering design.
-
Foundation Design and Soil Stability Analysis
Accurate SPT data allow engineers to better assess bearing capacities, settlement characteristics, and liquefaction potential.
-
Construction and Civil Engineering Projects
Used widely in infrastructure development - from buildings and bridges to roads and tunnels - to ensure ground suitability and mitigate risks.
-
Compliance with International and European Standards
Aligns SPT methods with EN 1997 standards, facilitating cross-border engineering projects and regulatory approvals.
Related Standards
-
ISO 22475-1:2006 - Geotechnical investigation and testing - Methods of sampling and in situ testing - Part 1: Technical principles for field work
Provides complementary guidance on sampling rods and piezometer installations referenced in ISO 22476-3 amendments.
-
EN 1997-1 and EN 1997-2 - Eurocode 7: Geotechnical design standards
European foundational standards for geotechnical design, referencing testing methods like the SPT for soil investigation.
-
ISO 22476 (general series) - Series covering geotechnical field testing methods, providing comprehensive methodologies for various in situ tests.
Keywords: ISO 22476-3 amendment, standard penetration test, geotechnical field testing, soil investigation, SPT equipment, geotechnical standards, foundation design, soil stability, EN 1997 compliance, rod stiffness, test calibration, geotechnical site characterization.

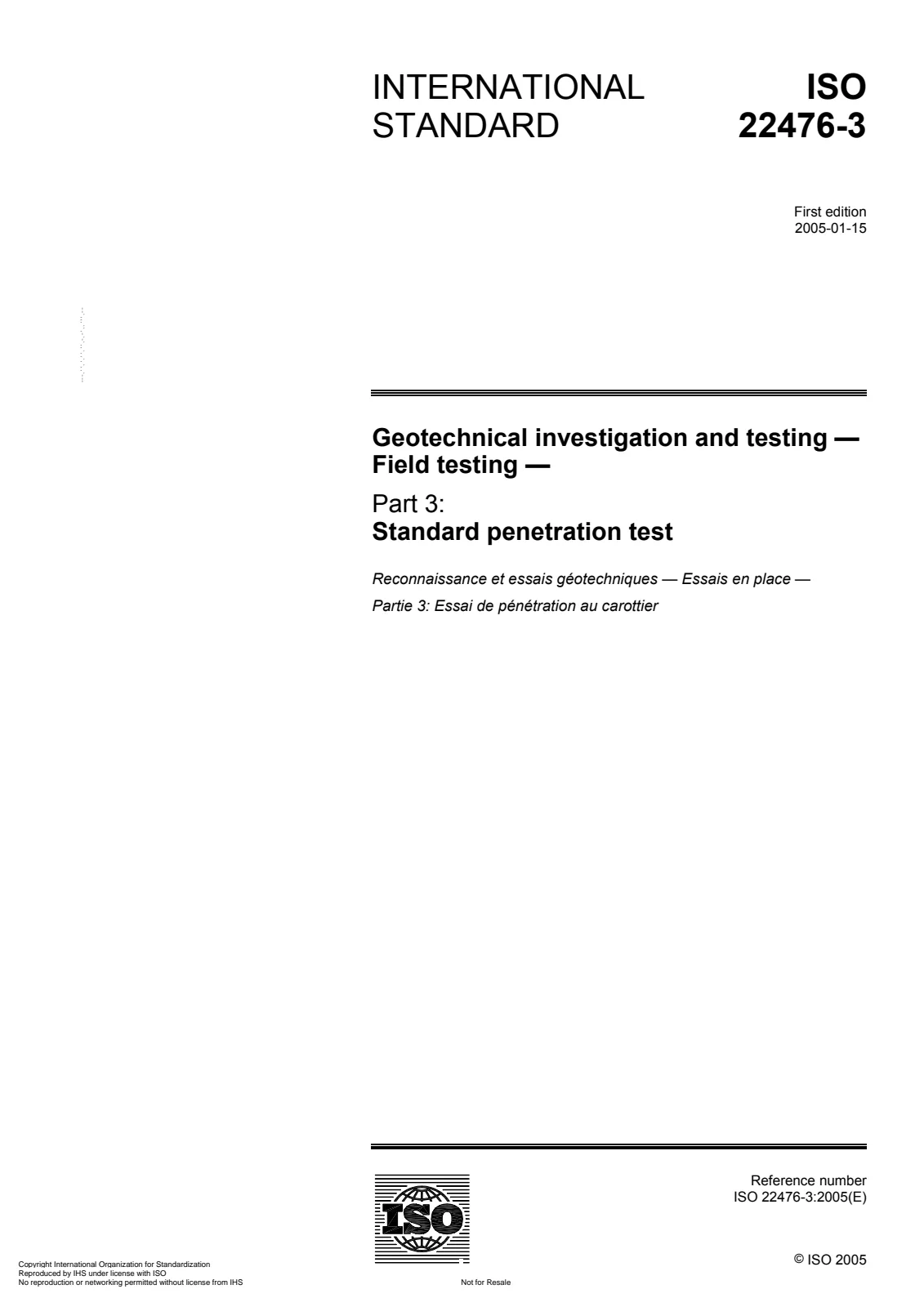

Открыть превью (PDF)Geotechnical investigation and testing — Field testing — Part 3: Standard penetration test — Amendment 1
