Overview

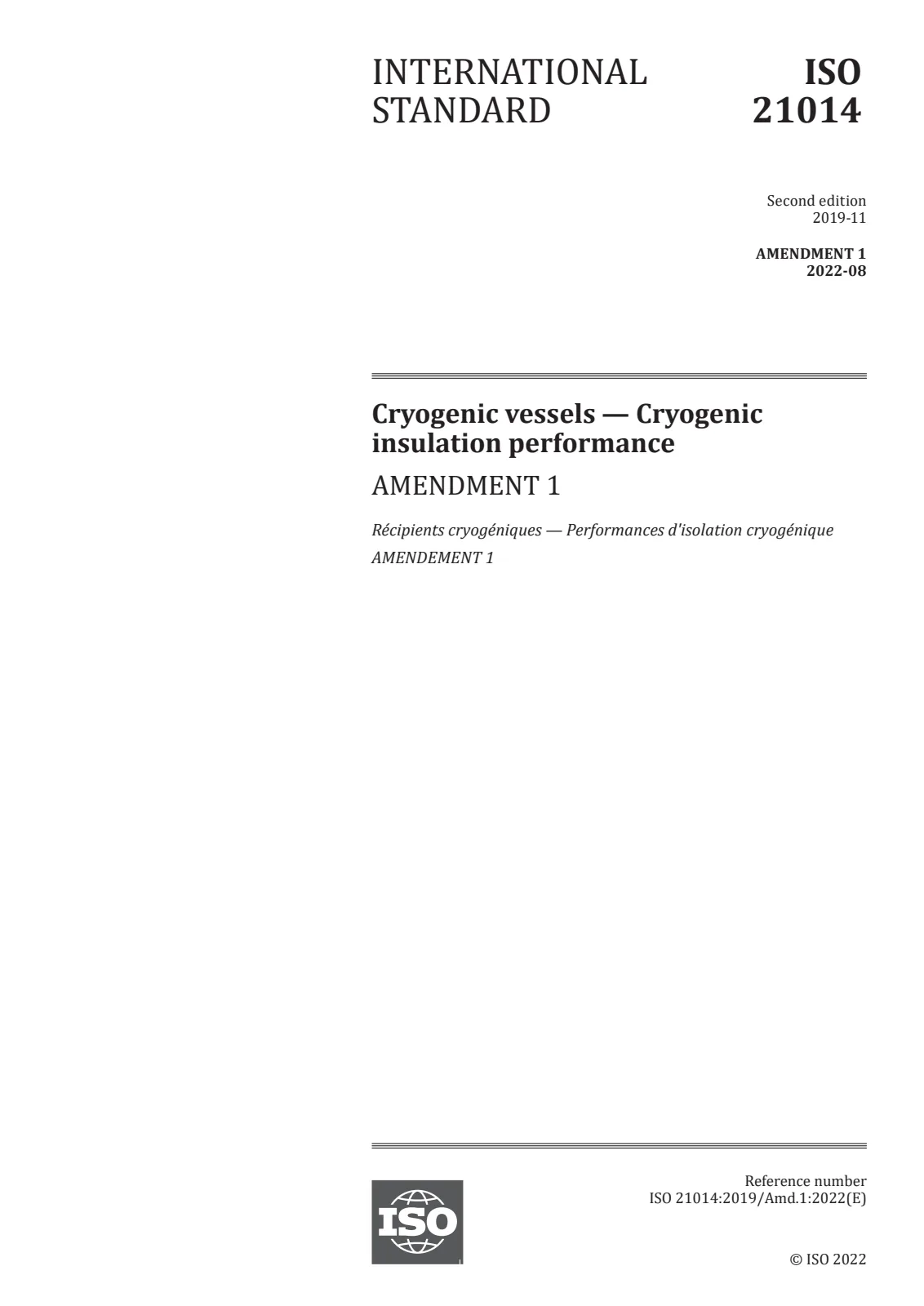

ISO 21014:2019/Amd 1:2022 is an important amendment to the international standard ISO 21014:2019, which addresses the performance of cryogenic insulation in cryogenic vessels. Published by the International Organization for Standardization (ISO), this amendment refines formulas and definitions used to evaluate the insulation effectiveness critical for maintaining ultra-low temperatures in cryogenic storage and transportation systems.
Cryogenic vessels are specially designed containers that store and transport liquefied gases at extremely low temperatures. Effective insulation performance is essential to minimize boil-off losses, maintain safety, and ensure operational efficiency. ISO 21014:2019/Amd 1:2022 enhances the methodology for assessing insulation performance by updating specific technical components and providing clearer thermodynamic references.
Key Topics
- Cryogenic insulation performance: The amendment revises calculation methods related to heat transfer and vaporization in insulation systems applied to cryogenic vessels.
- Updated formulas: Replacement and deletion of several key thermodynamic formulas, improving precision in liquid vaporization and condensation calculations at equilibrium pressure.
- Redefined parameters: Clarification of the latent heat of vaporization/condensation (h) to align with equilibrium pressure states, ensuring more accurate assessment of insulation thermal behavior.
- Technical committee oversight: Development and revision of the standard led by ISO Technical Committee ISO/TC 220 (Cryogenic vessels).
Applications
- Cryogenic storage tanks: Ensures insulation performance in storage vessels for liquefied gases such as LNG, liquid nitrogen, and liquid helium.
- Cryogenic transport containers: Evaluates insulation efficiency in tankers and dewars used for safe, low-loss transportation of cryogenic fluids.
- Industrial gas industry: Supports quality control in the manufacturing and operation of cryogenic containment systems.
- Energy sector: Applicable for liquefied natural gas (LNG) facilities where optimized insulation reduces energy consumption and operational costs.
- Research laboratories: Provides guidance for the design and assessment of vessels used in scientific cryogenic applications requiring precise temperature control.
Related Standards
- ISO 13468 - Methods for determining thermal insulation performance of cryogenic vessels.

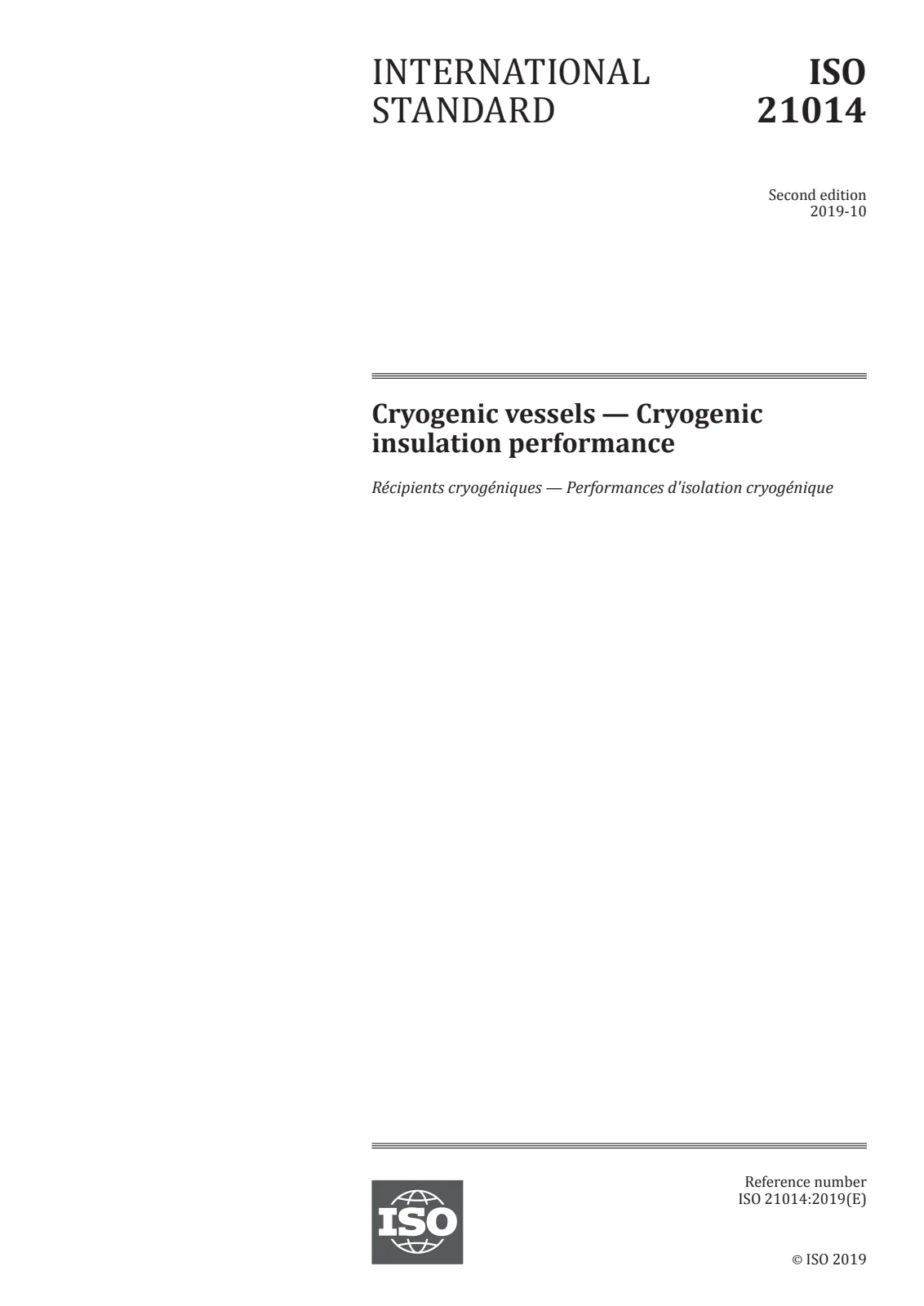

- ISO 21014:2019 - Original edition of the cryogenic insulation performance standard.
- ISO 16529 - Portable cryogenic vessels used for the transportation of liquefied gases.
- ASTM C1045 - Standard test methods for heat transfer properties of cryogenic materials.
Practical Value
Adopting the amendments in ISO 21014:2019/Amd 1:2022 allows engineers and manufacturers to:
- Improve design accuracy by applying updated formulas for insulation performance.
- Enhance safety and efficiency of cryogenic vessels through standardized evaluation methods.
- Facilitate international trade compliance with recognized global standards.
- Optimize boil-off reduction strategies by properly characterizing insulation thermal properties.
By adhering to this amendment, stakeholders in the cryogenic technology sector ensure that their insulation performance assessments are aligned with the latest international best practices, resulting in reduced energy losses and increased vessel longevity.
