Overview

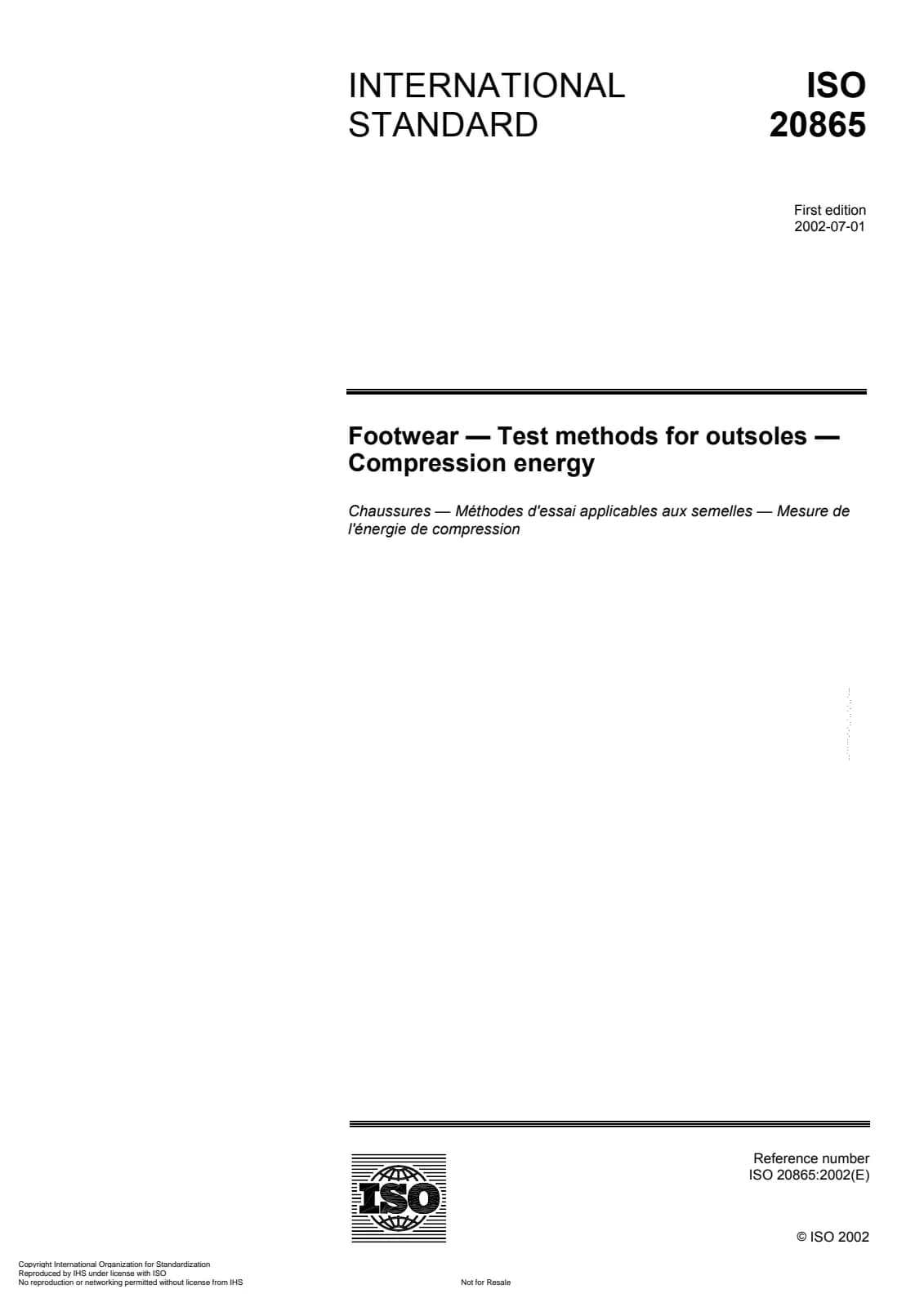

ISO 20865:2002, titled Footwear - Test methods for outsoles - Compression energy, is an international standard developed by ISO to specify a precise method for determining the compression energy of footwear outsoles. Compression energy measurement is crucial in evaluating the durability, comfort, and performance characteristics of shoe soles under mechanical stress. This standardized test method ensures consistency and reliability in assessing outsole materials, helping manufacturers maintain high-quality footwear products.
Key Topics
-
Scope and Purpose
ISO 20865:2002 defines the procedure for quantifying the energy absorbed by the outsole when subjected to a compressive force up to 5000 Newtons. The test evaluates how much energy the outsole material absorbs and dissipates under compression, which directly impacts wear resistance and cushioning.
-
Test Equipment and Setup
The standard requires a dynamometer compliant with ISO 5893, able to apply a consistent translation speed of 10 mm/min ± 2 mm/min. The testing apparatus includes a specialized polyethylene punch designed specifically for outsole shapes, with dimensions adjusted according to shoe size (Mondo Point measurements).
-
Sampling and Conditioning
Specimens are sampled based on EN 13400:1998 and conditioned in normal atmospheric conditions as per EN 12222 for a minimum of 24 hours, ensuring uniform test conditions and reliable results. A minimum of two samples per test are required.
-
Test Procedure
The outsole heel portion is positioned on a steel support with the punch pressing against its interior surface. Compression is applied steadily until the force reaches 5000 N. The force versus compression curve is recorded through an autographic device.
-
Calculating Compression Energy
The energy of compression (E), measured in joules, corresponds to the area under the force-deformation curve from zero to 5000 N. The test result is expressed as the average value across samples, providing a standardized metric of the outsole’s compression behavior.
-
Reporting Results
Test reports must include sample identification, test method reference, date of testing, and detailed results, including the energy of compression calculation. This ensures transparency and traceability for quality control and product development.
Applications
ISO 20865:2002 is essential for various stakeholders in the footwear industry:
- Manufacturers use this method to assess and select outsole materials that meet durability and comfort requirements.
- Quality control laboratories rely on the standard for consistent testing to ensure products adhere to performance specifications.
- Research and development teams apply the test results to innovate footwear designs with optimized cushioning and shock absorption.
- Regulatory compliance efforts benefit from harmonized testing methods that align with international footwear standards.
- Material suppliers utilize these tests to demonstrate the mechanical properties and reliability of elastomers and composites used in outsoles.
By adhering to ISO 20865:2002, businesses can enhance product safety, performance, and customer satisfaction.
Related Standards
ISO 20865:2002 works in conjunction with several related international and European standards:
- EN 12222 - Footwear - Normal atmospheres for conditioning and testing: Defines standard environmental conditions for specimen preparation.
- prEN 13400:1998 - Footwear - Sampling locations for footwear components: Guides on sampling outsole materials for testing.
- ISO 5893 - Rubber and plastics testing equipment: Specifies requirements for dynamometers used in compression, tensile, and flexural tests.
- EN 12743:1999 - The European equivalent of ISO 20865, detailing compression energy testing for outsoles.
These harmonized standards ensure compatibility of test methods and facilitate the global exchange of footwear quality data.
