ISO 19840:2012 PDF

Paints and varnishes — Corrosion protection of steel structures by protective paint systems — Measurement of, and acceptance criteria for, the thickness of dry films on rough surfaces

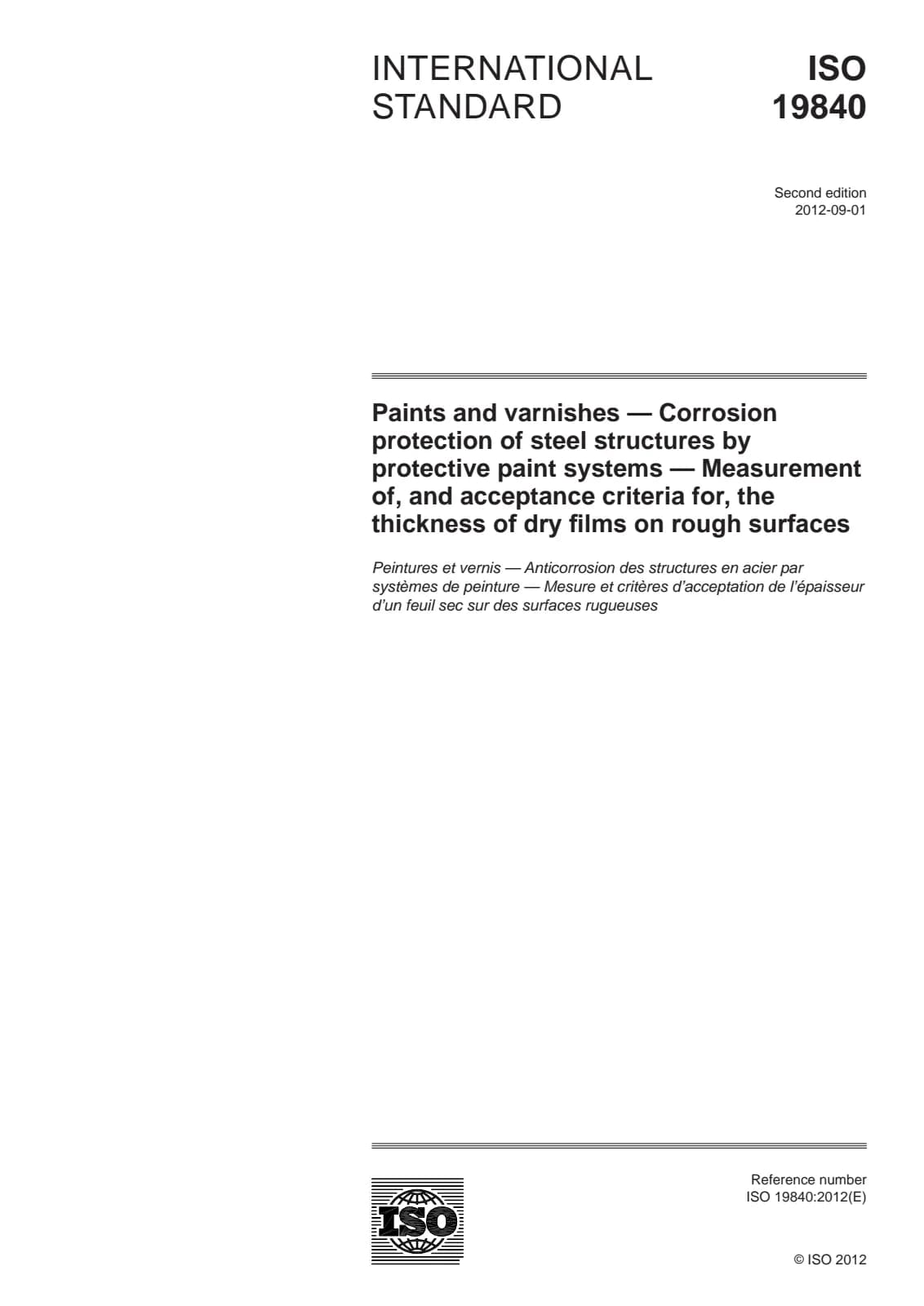

Первая страница стандарта ISO 19840:2012

Открыть превью (PDF)

Название (английский):

ISO 19840:2012

Paints and varnishes — Corrosion protection of steel structures by protective paint systems — Measurement of, and acceptance criteria for, the thickness of dry films on rough surfaces

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 16
Дата публикации:: 22 августа 2012 г.
Издание:: ISO IS 19840 edition 2 version 1
ICS:: 87.020

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:240 €

Описание (английский):

ISO 19840:2012 specifies a procedure for the verification of dry-film thickness against nominal dry-film thickness on rough surfaces, including the adjustment of the instruments used, the definition of inspection areas, sampling plans, measurement methods and acceptance/rejection criteria. The procedure is based on the use of instruments of the permanent magnet, electromagnet and eddy current type. Instrument accuracy is verified both at zero and at a known thickness on a smooth surface and adjusted if necessary. It does not apply to nominal dry-film thicknesses less than 40 µm.

Технические детали

Технический комитет: ISO/TC 35/SC 14 - Protective paint systems for steel structures
SKU: ISO 19840:2012

Abstract

Overview - ISO 19840:2012 (dry-film thickness on rough surfaces)

ISO 19840:2012 specifies a standardized procedure for verifying dry-film thickness (DFT) of protective paint systems on roughened steel surfaces. It defines how to adjust and verify film thickness gauges, select inspection areas and sampling plans, perform measurements with magnetic and eddy‑current instruments, and apply acceptance/rejection criteria. The standard supplements the ISO 12944 corrosion‑protection series and applies to nominal DFTs of 40 µm or greater.

Key topics and technical requirements

Scope and definitions
- DFT is defined as the coating thickness remaining above the peaks of a rough surface profile.
- Applies to coatings on abrasive blast‑cleaned or otherwise roughened steel substrates.
Measurement principles
- Approved instruments: permanent magnet, magnetic induction (electromagnet) and eddy current types (eddy‑current mainly for non‑ferrous substrates).
- Devices are adjusted and verified at zero and at a known thickness on a smooth surface before use.
Probe handling and reading methods
- Twin‑pole probes may require multiple pivoted readings (e.g., 0°, 90°, 180°, 270°) with the arithmetic mean used as the spot value.
- Individual readings versus multiple‑reading methods are described; Annex B covers multiple readings and Annex A gives an alternative method of adjusting to known rough‑surface thicknesses.
Correction value
- Measurements on rough surfaces yield higher gauge readings; the correction value (instrument reading minus correction = individual DFT) compensates for profile influence.
- Annex D provides a normative procedure for determining a specific correction value.
Sampling plan and acceptance criteria
- Defines inspection areas, number of readings and statistical treatment (mean, standard deviation) and sets acceptance/rejection rules based on nominal DFT.
Reporting
- Requirements for test reports and example forms are included (Annex E informative).

Applications and who uses ISO 19840:2012

Practical uses:
- Quality control and verification of protective paint systems on bridges, offshore structures, industrial plants, and other steel assets.
- Establishing contractual acceptance criteria and audit evidence for coatings applied over blast‑cleaned surfaces.
Typical users:
- Coating specifiers, corrosion engineers, NDT technicians, inspectors, paint contractors, QA/QC personnel, asset owners and procurement teams.

Related standards

ISO 12944 series (protective paint systems for steel structures)
ISO 2808 (film thickness determination)
ISO 8503‑1 (surface roughness/profile references)
Use of ISO 19840:2012 helps ensure consistent, reproducible film thickness measurement and supports robust corrosion protection practices for steel structures.

Overview - ISO 19840:2012 (dry-film thickness on rough surfaces)

Key topics and technical requirements

Scope and definitions
- DFT is defined as the coating thickness remaining above the peaks of a rough surface profile.
- Applies to coatings on abrasive blast‑cleaned or otherwise roughened steel substrates.
Measurement principles
- Approved instruments: permanent magnet, magnetic induction (electromagnet) and eddy current types (eddy‑current mainly for non‑ferrous substrates).
- Devices are adjusted and verified at zero and at a known thickness on a smooth surface before use.
Probe handling and reading methods
- Twin‑pole probes may require multiple pivoted readings (e.g., 0°, 90°, 180°, 270°) with the arithmetic mean used as the spot value.
- Individual readings versus multiple‑reading methods are described; Annex B covers multiple readings and Annex A gives an alternative method of adjusting to known rough‑surface thicknesses.
Correction value
- Measurements on rough surfaces yield higher gauge readings; the correction value (instrument reading minus correction = individual DFT) compensates for profile influence.
- Annex D provides a normative procedure for determining a specific correction value.
Sampling plan and acceptance criteria
- Defines inspection areas, number of readings and statistical treatment (mean, standard deviation) and sets acceptance/rejection rules based on nominal DFT.
Reporting
- Requirements for test reports and example forms are included (Annex E informative).

Applications and who uses ISO 19840:2012

Practical uses:
- Quality control and verification of protective paint systems on bridges, offshore structures, industrial plants, and other steel assets.
- Establishing contractual acceptance criteria and audit evidence for coatings applied over blast‑cleaned surfaces.
Typical users:
- Coating specifiers, corrosion engineers, NDT technicians, inspectors, paint contractors, QA/QC personnel, asset owners and procurement teams.

Related standards

ISO 12944 series (protective paint systems for steel structures)
ISO 2808 (film thickness determination)
ISO 8503‑1 (surface roughness/profile references)
Use of ISO 19840:2012 helps ensure consistent, reproducible film thickness measurement and supports robust corrosion protection practices for steel structures.

ISO 19840:2012 PDF

Технические детали

Abstract

Overview - ISO 19840:2012 (dry-film thickness on rough surfaces)

Key topics and technical requirements

Applications and who uses ISO 19840:2012

Related standards

Похожие стандарты

Abstract

Overview - ISO 19840:2012 (dry-film thickness on rough surfaces)

Key topics and technical requirements

Applications and who uses ISO 19840:2012

Related standards

Похожие стандарты

Paints and varnishes. Corrosion protection of steel structures by protective paint systems. Design considerat…

Hardmetals. Abrasion tests for hardmetals

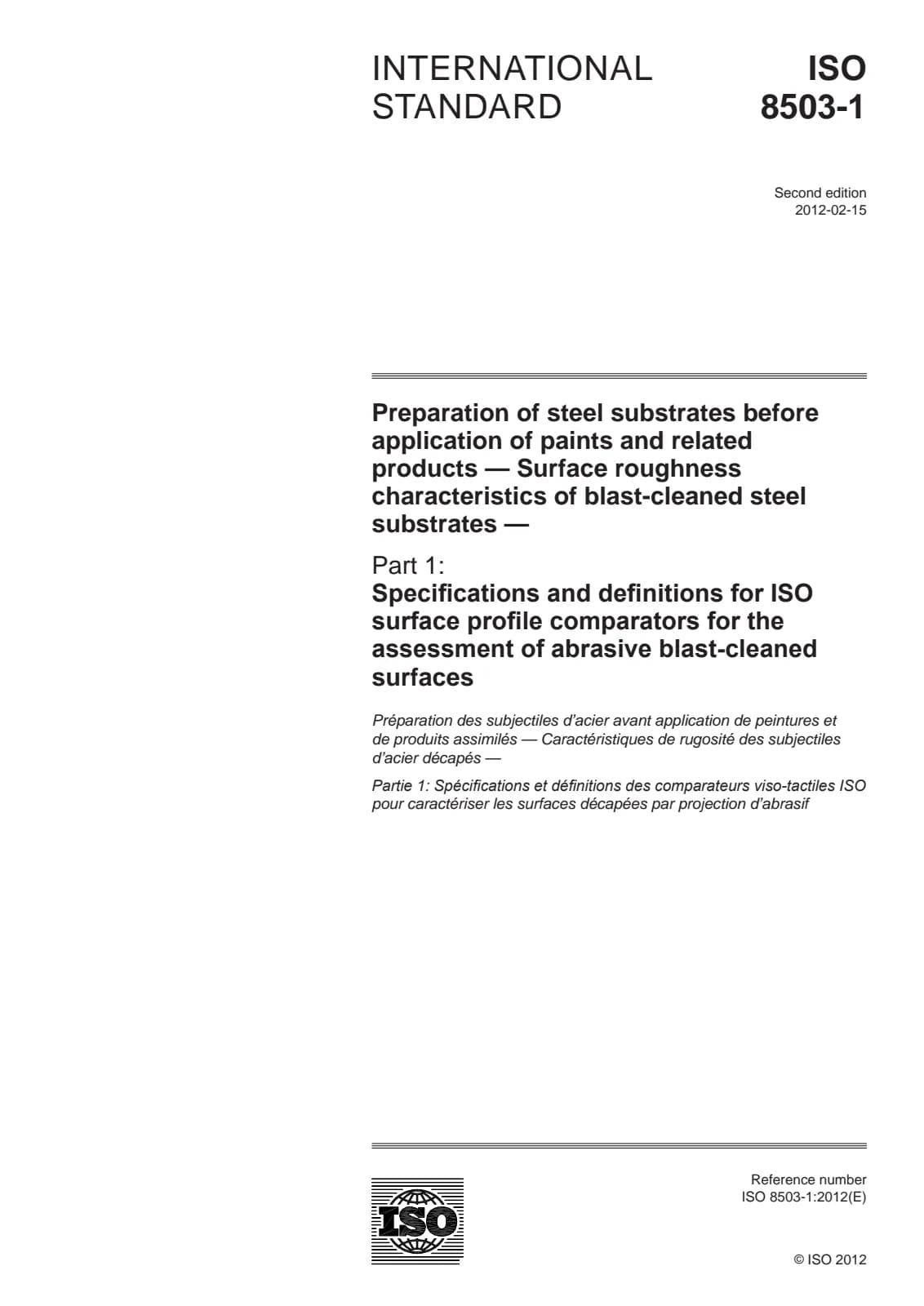

Preparation of steel substrates before application of paints and related products — Surface roughness charact…
