ISO 18278-2:2016 PDF

Resistance welding — Weldability — Part 2: Evaluation procedures for weldability in spot welding

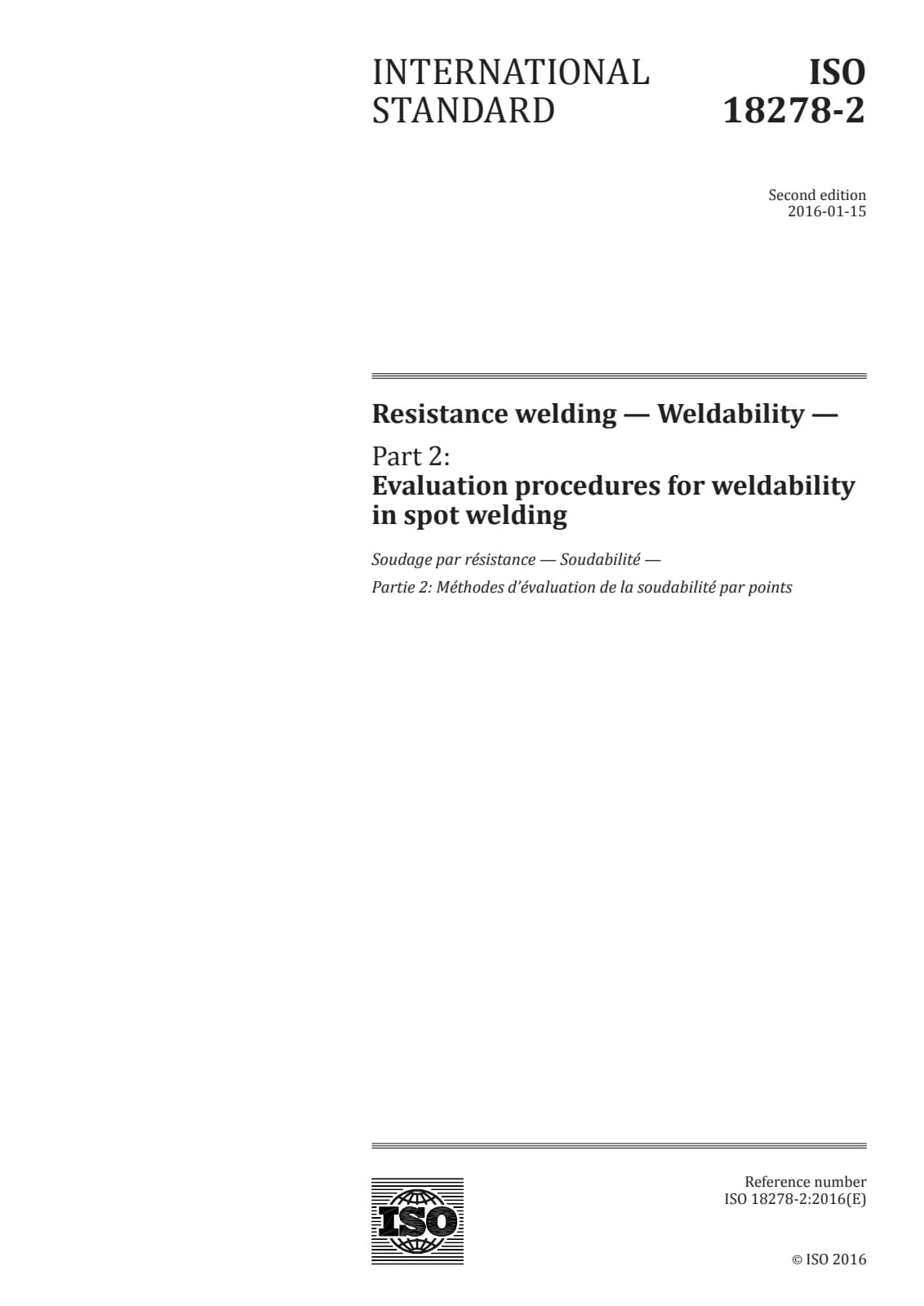

Первая страница стандарта ISO 18278-2:2016

Открыть превью (PDF)

Название (английский):

ISO 18278-2:2016

Resistance welding — Weldability — Part 2: Evaluation procedures for weldability in spot welding

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 16
Дата публикации:: 15 января 2016 г.
Издание:: ISO IS 18278 edition 2 version 1
ICS:: 25.160.40

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:240 €

Описание (английский):

ISO 18278-2:2016 provides specific test procedures for the determination of the acceptable welding current range and the electrode life. It is applicable for the evaluation of the weldability of assemblies of uncoated and coated sheets of individual thicknesses from 0,4 mm to 6,0 mm.

Технические детали

Технический комитет: ISO/TC 44/SC 6 - Resistance welding and allied mechanical joining
SKU: ISO 18278-2:2016

Abstract

Overview

ISO 18278-2:2016 - Resistance welding - Weldability - Part 2: Evaluation procedures for weldability in spot welding specifies laboratory test procedures to determine the acceptable welding current range and electrode life for resistance spot welding. It applies to assemblies of uncoated and coated sheets with individual thicknesses from 0.4 mm to 6.0 mm and is intended to characterize the effects of electrode design, material, cooling and welding equipment on spot weld quality.

Key topics and technical requirements

Scope and purpose: Defines procedures to evaluate weldability in spot welding by measuring welding current range and electrode life.
Welding equipment & electrodes:
- Electrodes shall be of type A 2/2 material (see ISO 5182) and have geometry defined per ISO 5821.
- Electrode conditioning: electrodes shall not be conditioned before tests.
Welding current and control:
- Specify AC or DC; use constant current control.
- For AC equipment, welding current shall be at least 30% of RMS value at full conduction angle.
Mechanical settings:
- Limit electrode impact (recommend approach speed 0.15 m/s and/or peak force

Overview

Key topics and technical requirements

Scope and purpose: Defines procedures to evaluate weldability in spot welding by measuring welding current range and electrode life.
Welding equipment & electrodes:
- Electrodes shall be of type A 2/2 material (see ISO 5182) and have geometry defined per ISO 5821.
- Electrode conditioning: electrodes shall not be conditioned before tests.
Welding current and control:
- Specify AC or DC; use constant current control.
- For AC equipment, welding current shall be at least 30% of RMS value at full conduction angle.
Mechanical settings:
- Limit electrode impact (recommend approach speed 0.15 m/s and/or peak force
