Overview - ISO 17987-7:2025 (LIN EPL conformance test specification)
ISO 17987-7:2025 specifies a standardized conformance test suite for the Electrical Physical Layer (EPL) of the Local Interconnect Network (LIN) used in road vehicles. Its purpose is to provide a repeatable, vendor-neutral method to verify whether a LIN bus driver (transceiver/ECU node) conforms to ISO 17987-4, ensuring interoperability of LIN bus drivers from different suppliers and consistent test results across compliant test systems.
Key topics and technical requirements
The standard organizes a comprehensive set of test cases and measurement requirements covering multiple EPL variants and operating scenarios:
- Device classes & voltages: Test specifications for EPL 12 V (class A, B, C) and EPL 24 V implementations, including devices with and without RX/TX access.
- Test case organization: Clear grouping of static and dynamic tests, calibration, operation modes, and failure modes to ensure reproducible outcomes.
- Measurement and signal generation: Requirements for signal sources and measurement equipment to produce consistent test stimuli across laboratories.
- Electrical operating conditions: Tests for operating voltage range, voltage variation (e.g., ranges listed for various tests), and supply voltage offset to validate behaviour under real-world supply conditions.
- Threshold and timing: Verification of threshold voltages, slope control, propagation delay, and timing margins critical to LIN frame integrity.
- Passive characteristics: Measuring internal resistors, internal capacitance, and assessing dynamic interference and EMI-related effects.
- Failure and robustness tests: Evaluations for abnormal conditions, fault injection and device response to ensure safe degradation and system stability.
- Calibration & conformance of test systems: Rules to ensure that different test systems produce comparable results when implementing the standard.
Practical applications and intended users
ISO 17987-7:2025 is intended for professionals involved in the development, validation and certification of LIN hardware and systems:
- Vehicle OEMs and system integrators validating multi-vendor LIN networks
- Tier‑1 suppliers and ECU/transceiver manufacturers proving compliance during design and production
- Independent test laboratories and certification bodies running official EPL conformance tests
- Test equipment vendors who implement compliant test suites and automated bench solutions
- Quality and validation engineers using the specification for supplier audits, interoperability testing, and pre-compliance verification
Benefits include improved interoperability, reduced integration risk, and consistent acceptance criteria for LIN bus drivers across projects and suppliers.
Related standards
- ISO 17987-4 - referenced for LIN bus driver electrical requirements (this document verifies conformance to Part 4)
- Other parts of the ISO 17987 series covering LIN architecture, protocol and higher-layer conformance
Keywords: ISO 17987-7:2025, LIN, Local Interconnect Network, Electrical Physical Layer (EPL), conformance test, LIN bus driver, interoperability, EPL 12 V, EPL 24 V, test specification.

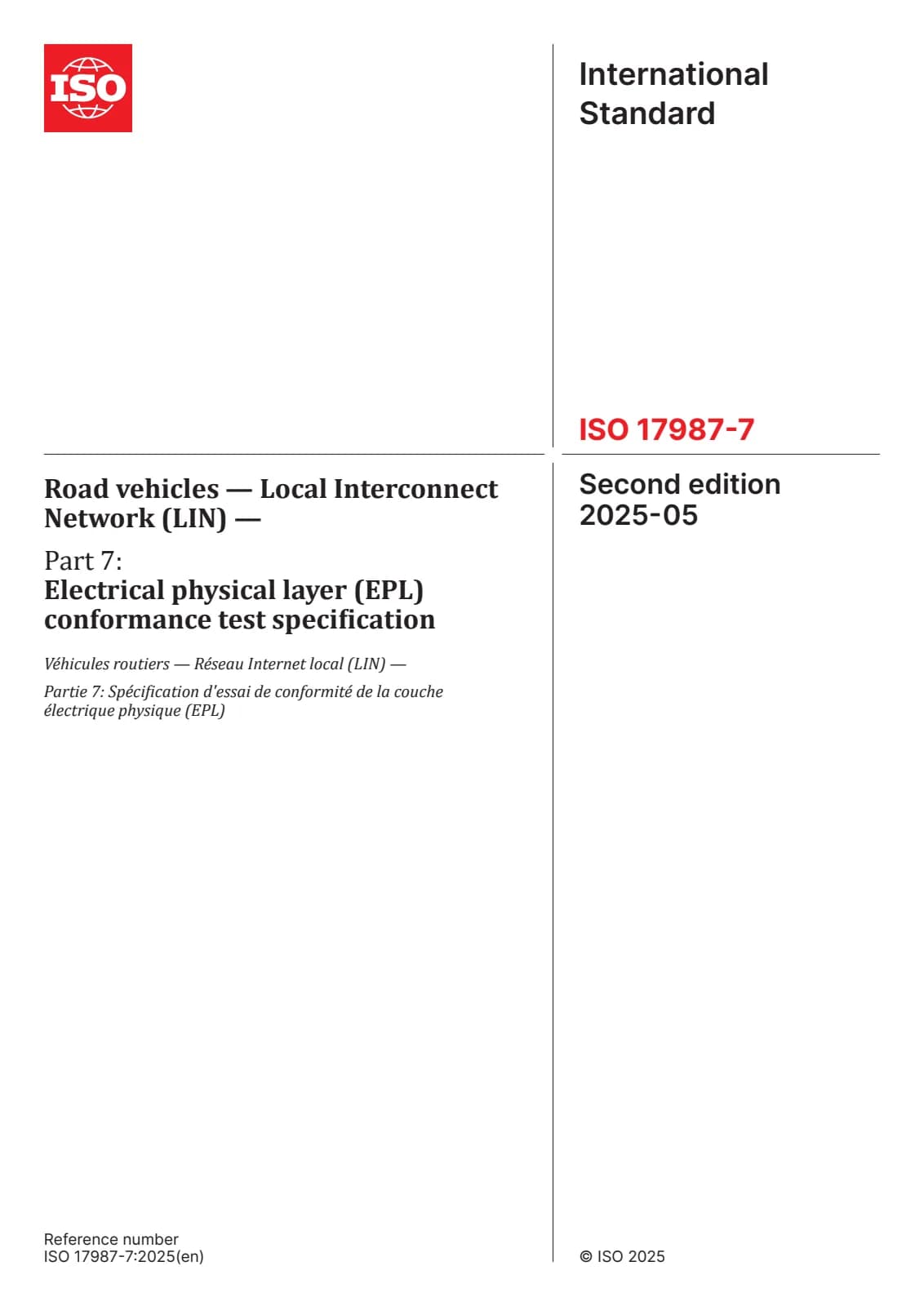

Открыть превью (PDF)Road vehicles — Local Interconnect Network (LIN) — Part 7: Electrical physical layer (EPL) conformance test specification
