Overview

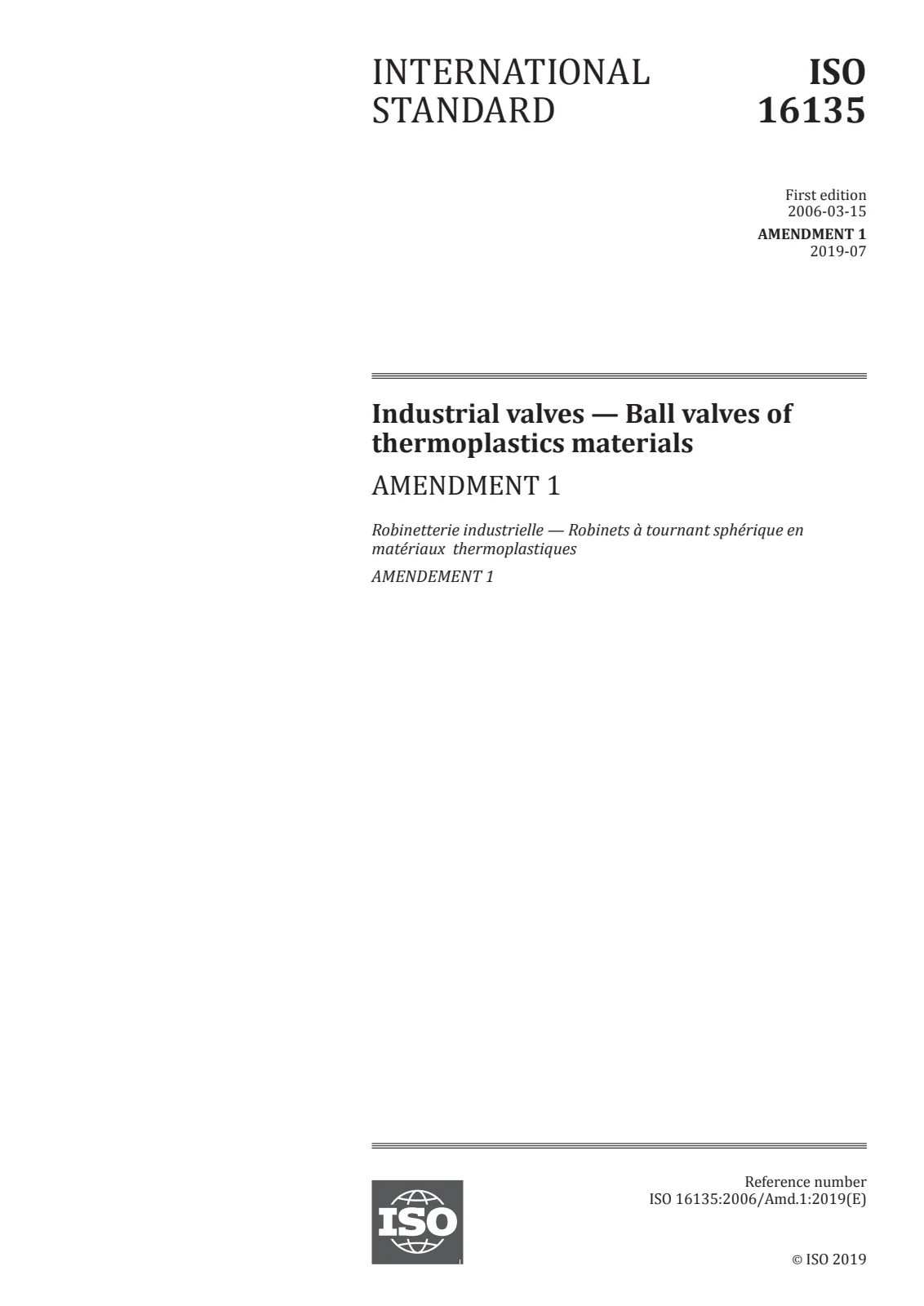

ISO 16135:2006/Amd 1:2019 is an important international standard developed by the International Organization for Standardization (ISO) under technical committee ISO/TC 138/SC 7. This amendment focuses on ball valves made from thermoplastic materials used in industrial valve applications. It refines the original ISO 16135:2006 requirements, emphasizing updated materials, testing methods, and performance criteria relevant to thermoplastic ball valves. The standard ensures consistent size, mechanical performance, pressure resistance, and sealing capabilities for ball valves within industrial piping systems.
Ball valves constructed from thermoplastics such as ABS, PE, PP, PVC-U, PVC-C, and PVDF are covered, reflecting their growing use in chemical, water treatment, and fluid transport industries. This amendment updates normative references, enhances requirements for mechanical strength and sealing, and sets marking and documentation guidelines to improve traceability and compliance.
Key Topics
-
Materials Specification
Materials for valve bodies and covers must conform to related ISO standards (ISO 15493, ISO 15494, ISO 10931) ensuring properties like pressure resistance and chemical compatibility for ABS, PE, PP, PVC-U, PVC-C, and PVDF thermoplastics.
-
Mechanical Performance
Valves must undergo pressure testing on the body and long-term assembly tests following ISO 9393-2 to verify durability and reliability under operational conditions.
-
Sealing and Leak Tightness
The sealing of the valve seat and packing is subject to strict testing under ISO 9393-2, ensuring effective leak prevention even in multi-way ball valve configurations.
-
Dimensional Standards
Face-to-face dimensions for flanged valves follow EN 558 to guarantee interchangeability in piping systems; manufacturers determine dimensions for other end connections.
-
Pressure and Temperature Ratings
The amendment includes updated reduction factors for different thermoplastic materials based on operating temperature, to maintain valve integrity over a 25-year lifespan.
-
Manual Operation Effort
Limits on manual operating torque (opening/closing effort) align with EN 12570 for user safety and ergonomics, ensuring valves can be easily handled without damage.
-
Marking and Documentation
The amendment specifies mandatory markings on the valve body and requirements for a data sheet including pressure-temperature relationships, material identification, manufacturing code/date, and flow characteristics.
Applications
ISO 16135:2006/Amd 1:2019 applies specifically to industrial thermoplastic ball valves found in:
- Chemical processing plants requiring corrosion-resistant fluid control
- Water and wastewater treatment systems using non-metallic piping
- Food and beverage production lines where valve hygiene and corrosion resistance are critical
- Pharmaceuticals and laboratories requiring precise fluid handling with thermoplastic materials
- HVAC and irrigation systems employing plastics for lightweight and cost-effective valve solutions
Implementing this updated standard helps manufacturers and users ensure valves meet rigorous safety, reliability, and efficiency criteria, supporting seamless integration into complex piping installations under varying thermal and pressure conditions.
Related Standards
This amendment aligns with and references a series of critical ISO and EN standards enhancing valve design and testing:
- ISO 1167-1:2006 – Methods for internal pressure resistance testing of thermoplastic pipes and fittings
- EN 558:2017 – Face-to-face and center-to-face dimensions of metallic industrial valves suitable for thermoplastic valve designs
- ISO 9393-2 – Mechanical and sealing performance tests specific to thermoplastic valves
- EN 12570 – Manual operating force requirements for valves
- ISO 15493 / ISO 15494 / ISO 10931 – Specifications for plastics piping systems and components
- ISO 5211:2017 – Interface dimensions for valve actuator mounting
Additionally, compliance with Directive 2014/68/EU (Pressure Equipment Directive) is supported through this standard, facilitating regulatory acceptance of thermoplastic ball valves in the European market.
Adhering to ISO 16135:2006/Amd 1:2019 ensures the design, manufacturing, testing, and documentation of thermoplastic ball valves meet the highest international criteria - boosting performance reliability and safety in diverse industrial fluid control applications.
