ISO 16067-2:2004 - Overview
ISO 16067-2:2004 specifies standardized methods for measuring and reporting the spatial resolution of electronic film scanners that digitize continuous‑tone photographic negatives and reversal (slide) films. It applies to both monochrome and colour film scanners and defines digital, image‑analysis based procedures-most notably limiting visual resolution and spatial frequency response (SFR) computed from a slanted edge. The standard uses a purpose‑built transmission test chart scanned under controlled conditions and analyzed in the digital domain.
Key topics and technical requirements
- Test chart specifications
- Transmission test chart based on spectrally neutral, fade‑resistant film (recommended size 24 mm × 36 mm for 35 mm format).
- Active chart area no less than 16.7 mm in height/width.
- Includes grey scale patches (for OECF) and bitonal elements (for limiting resolution/aliasing).
- Target supplier should state usable spatial frequency (cycles/mm) and equivalent DPI (conversion factor 50.8).
- Measurements defined
- Scanner OECF (opto‑electronic conversion function) - relationship between input density and digital output.
- Limiting visual resolution - assesses resolving power and aliasing behavior.
- Edge SFR (slanted‑edge Spatial Frequency Response) - uses slanted vertical/horizontal edges and digital algorithms to compute SFR; allows measurement beyond the half‑sampling (Nyquist) frequency.
- Test conditions and procedures
- Controlled environmental conditions (temperature, humidity) and luminance/color measurement requirements.
- Linearization (gamma correction) and clear specifications for scanner settings and sampling parameters.
- Normative and informative annexes providing OECF test patches, SFR algorithm, and color registration methods.
Applications and who uses it
ISO 16067-2 is practical for:
- Scanner manufacturers - to validate and publish scanner spatial resolution performance.
- Test laboratories and QA teams - for repeatable acceptance testing and benchmarking.
- Digitization service providers, archivists, and photographic labs - to verify scanner suitability for high‑detail film digitization.
- Standards bodies and equipment evaluators - for consistent reporting and comparison of scanner performance.
Keywords: ISO 16067-2:2004, film scanners, spatial resolution measurements, SFR, slanted edge, OECF, limiting visual resolution, test chart, film digitization.
Related standards (if applicable)
This standard ensures consistent, reproducible spatial resolution metrics for continuous‑tone film scanners and supports objective comparison and quality control in film digitization workflows.

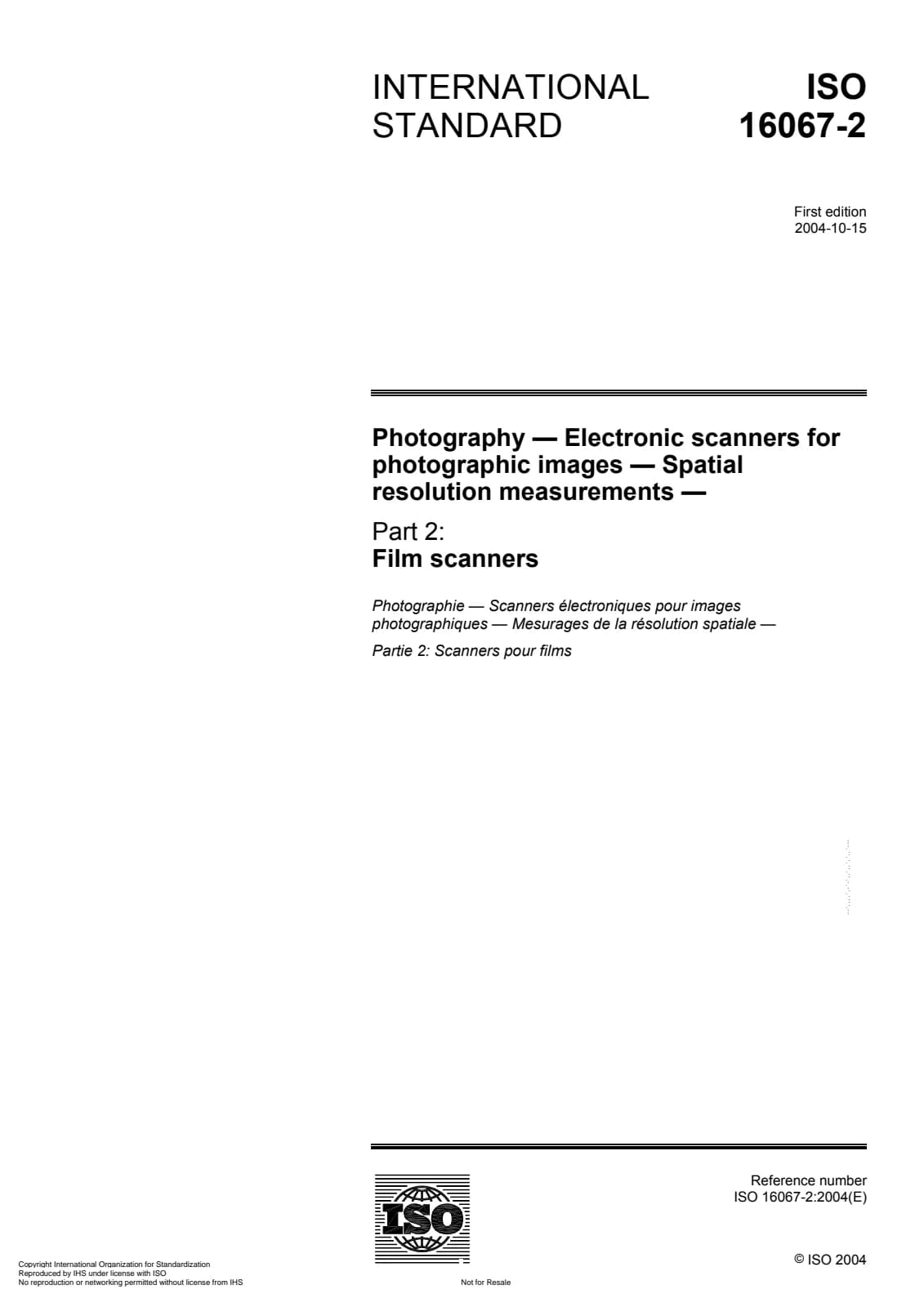

Открыть превью (PDF)Photography - Electronic scanners for photographic images - Spatial resolution measurements — Part 2: Film scanners
