ISO 16031-2:2003 PDF

Aerospace fluid systems — O-rings, inch series: Inside diameters and cross-sections, tolerances and size-identification codes — Part 2: Standard tolerances for non-hydraulic systems

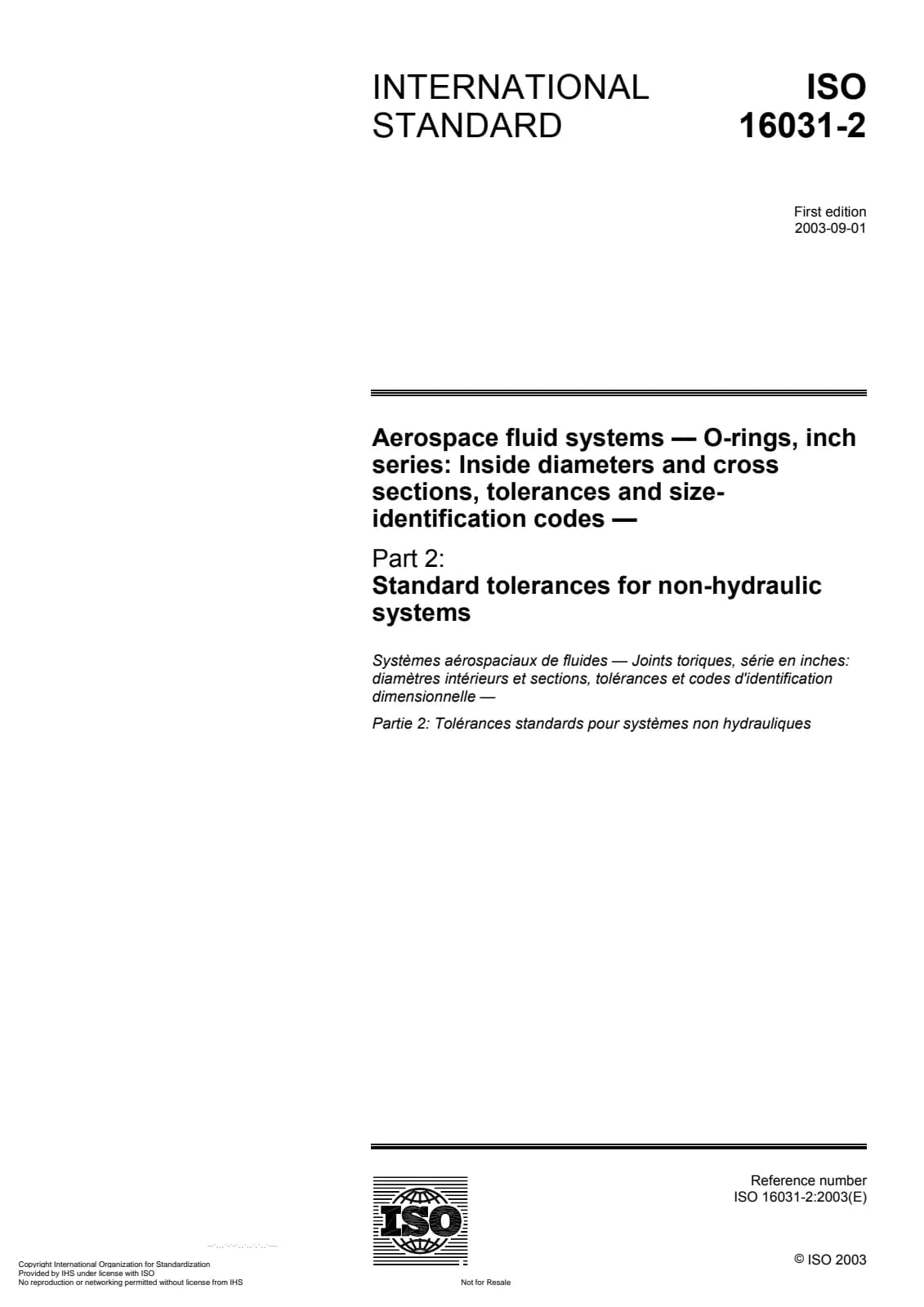

Первая страница стандарта ISO 16031-2:2003

Открыть превью (PDF)

Название (английский):

ISO 16031-2:2003

Aerospace fluid systems — O-rings, inch series: Inside diameters and cross-sections, tolerances and size-identification codes — Part 2: Standard tolerances for non-hydraulic systems

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 13
Дата публикации:: 28 августа 2003 г.
Издание:: ISO IS 16031 edition 1 version 1
ICS:: 49.080

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:195 €

Описание (английский):

ISO 16031-2:2003 specifies the inside diameters, cross-sections, tolerances and size identification codes for inch O-rings used in aerospace fluid systems intended for use in non-hydraulic systems. ISO 16031-2:2003 is applicable, provided that suitable tooling is available, to O-rings made from all other elastomeric materials other than nitrile and ethylene propylene materials, for which ISO 16031-1 specifies the dimensions. Specifications for O-rings with an inside diameter up to 12,7 mm have been taken from ISO 16031-1, because the same tolerances are applicable to the O-rings in ISO 16031-2:2003.

Технические детали

Технический комитет: ISO/TC 20/SC 10 - Aerospace fluid systems and components
SKU: ISO 16031-2:2003

Abstract

Overview

ISO 16031-2:2003 - Aerospace fluid systems - O-rings, inch series: Inside diameters and cross-sections, tolerances and size-identification codes - Part 2 - defines standard inside diameters, cross-sections, tolerances and size-identification codes for inch-series O-rings intended for non-hydraulic aerospace fluid systems. The standard applies to O-rings made from elastomeric materials other than nitrile and ethylene propylene (EP), and it adopts the toroidal (O-ring) configuration. Tables in the document list the standardized inside diameters, cross-sections and associated dash size codes (e.g., -001 to -475 and a 900 series for tube-fitting bosses).

Key topics and technical requirements

Scope: Inch-series O-rings for non-hydraulic aerospace fluid systems; applies when suitable tooling is available.
Dimensions and tolerances: Standardized combinations of inside diameter and cross-section are specified in tabular form; tolerances are provided for each size.
Size-identification codes: Dash numbers map to specific inside diameter / cross-section pairs; groups of 100 dash numbers indicate the cross-section family. A separate 900-series addresses O-rings for sealing straight thread tube-fitting bosses.
Configuration: O-rings are defined as toroidal sealing rings (note: ISO uses the term “O-ring”).
Normative references and terminology: Uses ISO 5598 vocabulary; prepared by ISO/TC 20 SC 10 (Aerospace fluid systems and components).

Practical applications and users

ISO 16031-2:2003 is used to ensure interchangeability, quality and reliable sealing performance in aerospace systems that are not hydraulic (for example pneumatic circuits, fuel venting seals, environmental seals and low-pressure fluid lines). Typical users include:

Aerospace design and systems engineers selecting seal sizes for non-hydraulic components.
O-ring manufacturers and mold/tooling designers producing inch-series elastomeric seals.
Procurement teams and suppliers specifying dash-code parts for inventory and replacement.
Quality, inspection and maintenance personnel verifying dimensional conformity during acceptance testing and repair.

Using the standardized inside diameters, cross-sections, and tolerances streamlines sourcing, reduces mismatch risk and simplifies maintenance logistics for aerospace operators and OEMs.

Related standards

ISO 16031-1 - Part 1: Close tolerances for hydraulic systems; covers nitrile and EP materials and small diameters (≤ 12.7 mm) referenced in Part 2.
ISO 5598 - Fluid power systems and components - Vocabulary (terminology used in ISO 16031-2).

Keywords: ISO 16031-2:2003, O-rings, aerospace fluid systems, non-hydraulic systems, inch series, inside diameters, cross-sections, tolerances, size-identification codes.

Overview

Key topics and technical requirements

Scope: Inch-series O-rings for non-hydraulic aerospace fluid systems; applies when suitable tooling is available.
Dimensions and tolerances: Standardized combinations of inside diameter and cross-section are specified in tabular form; tolerances are provided for each size.
Size-identification codes: Dash numbers map to specific inside diameter / cross-section pairs; groups of 100 dash numbers indicate the cross-section family. A separate 900-series addresses O-rings for sealing straight thread tube-fitting bosses.
Configuration: O-rings are defined as toroidal sealing rings (note: ISO uses the term “O-ring”).
Normative references and terminology: Uses ISO 5598 vocabulary; prepared by ISO/TC 20 SC 10 (Aerospace fluid systems and components).

Practical applications and users

Aerospace design and systems engineers selecting seal sizes for non-hydraulic components.
O-ring manufacturers and mold/tooling designers producing inch-series elastomeric seals.
Procurement teams and suppliers specifying dash-code parts for inventory and replacement.
Quality, inspection and maintenance personnel verifying dimensional conformity during acceptance testing and repair.

Using the standardized inside diameters, cross-sections, and tolerances streamlines sourcing, reduces mismatch risk and simplifies maintenance logistics for aerospace operators and OEMs.

Related standards

ISO 16031-1 - Part 1: Close tolerances for hydraulic systems; covers nitrile and EP materials and small diameters (≤ 12.7 mm) referenced in Part 2.
ISO 5598 - Fluid power systems and components - Vocabulary (terminology used in ISO 16031-2).

Keywords: ISO 16031-2:2003, O-rings, aerospace fluid systems, non-hydraulic systems, inch series, inside diameters, cross-sections, tolerances, size-identification codes.
