Overview
ISO 15080:2001/Amd 1:2019 is an international amendment to the original ISO 15080:2001 standard, focusing on ventilation penetrations for shielded enclosures in nuclear facilities. This standard is issued by the International Organization for Standardization (ISO) under Technical Committee ISO/TC 85, which specializes in nuclear energy, technologies, and radiological protection. The amendment provides updated guidelines for the design, materials, and construction of ventilation duct penetrations that maintain the integrity of radiation shielding in nuclear environments.
The need for this standard arises from the critical importance of ensuring both effective ventilation and stringent radiological protection in shielded enclosures within nuclear plants. It addresses technical requirements to guarantee that ventilation systems do not compromise the shielding against gamma radiation, while also facilitating reliable air or gas flow.
Key Topics
This amendment introduces detailed provisions focusing on:
-
Materials for Ventilation Penetrations: Emphasizes the use of cast iron with lamellar or spheroidal graphite for helix units, ensuring adequate mechanical strength, homogeneity, and radiation attenuation. Carbon steel or austenitic stainless steel is recommended for housings and flanges depending on corrosion resistance and gamma radiation levels.
-
Shielding Continuity and Design: Ventilation ducts passing through shielded walls must have a protective enclosure made of material at least three times denser than the standard concrete wall. This ensures equivalent or superior shielding protection, especially for gamma radiation in the 0.5 MeV to 2.5 MeV energy range.
-
Helical Ventilation Ducts (Helixes): Specially designed helical structures provide shielding continuity while allowing air or gas passage with minimal pressure drop. Their design, fastening, and dimensional tolerances are specified to handle mechanical stresses including seismic events, fire, or overpressure conditions.
-
Mechanical Assembly and Welding: Welds for housings require continuous, fully penetrated, and well-caulked seams. Welders must be trained and qualified following relevant jurisdictional standards or ISO 9606-1.
-
Radiological Verification: All shielding designs and calculations must undergo radiological protection verification to ensure compliance with required attenuation levels and to factor in varying concrete densities and radiation energies.
Applications
ISO 15080:2001/Amd 1:2019 is essential for:
-
Nuclear Power Plants: Ensuring that ventilation systems passing through radiation-shielded enclosures maintain protective integrity against ionizing radiation.
-
Radioactive Material Handling Facilities: Designing ventilation penetrations in hot labs or shielded containment areas, balancing airflow needs with radiation safety.
-
Nuclear Research Laboratories: Implementing updated shielding ventilation penetrations for experimental and operational setups involving nuclear materials.
-
Regulatory Compliance and Safety Assurance: Assisting nuclear facility designers, engineers, and safety professionals in adhering to international radiological protection standards for ventilation infrastructure.
Related Standards
To complement ISO 15080:2001/Amd 1:2019, consultation with the following standards and documents is recommended:
-
ISO 9606-1: Qualification testing of welders - Fusion welding - Part 1: Steels - ensuring professional competency for welded assemblies.
-
EN 1561: Founding - Grey cast irons - providing material specifications for cast iron used in helix manufacturing.
-
ASTM A-48: Standard specification for gray iron castings - applicable for cast iron quality grading.
-
IAEA Safety Manuals: Particularly for ventilation and hot laboratory safety guidelines in nuclear facilities.
-
ISO 3452-3: Non-destructive testing - Penetrant testing reference blocks - supporting quality assurance of welds and components.
This amendment to ISO 15080 reaffirms best practices for maintaining structural and radiological integrity of ventilation penetrations in nuclear shielded enclosures. Implementing these guidelines enhances safety, operational reliability, and regulatory compliance in nuclear ventilation system design.

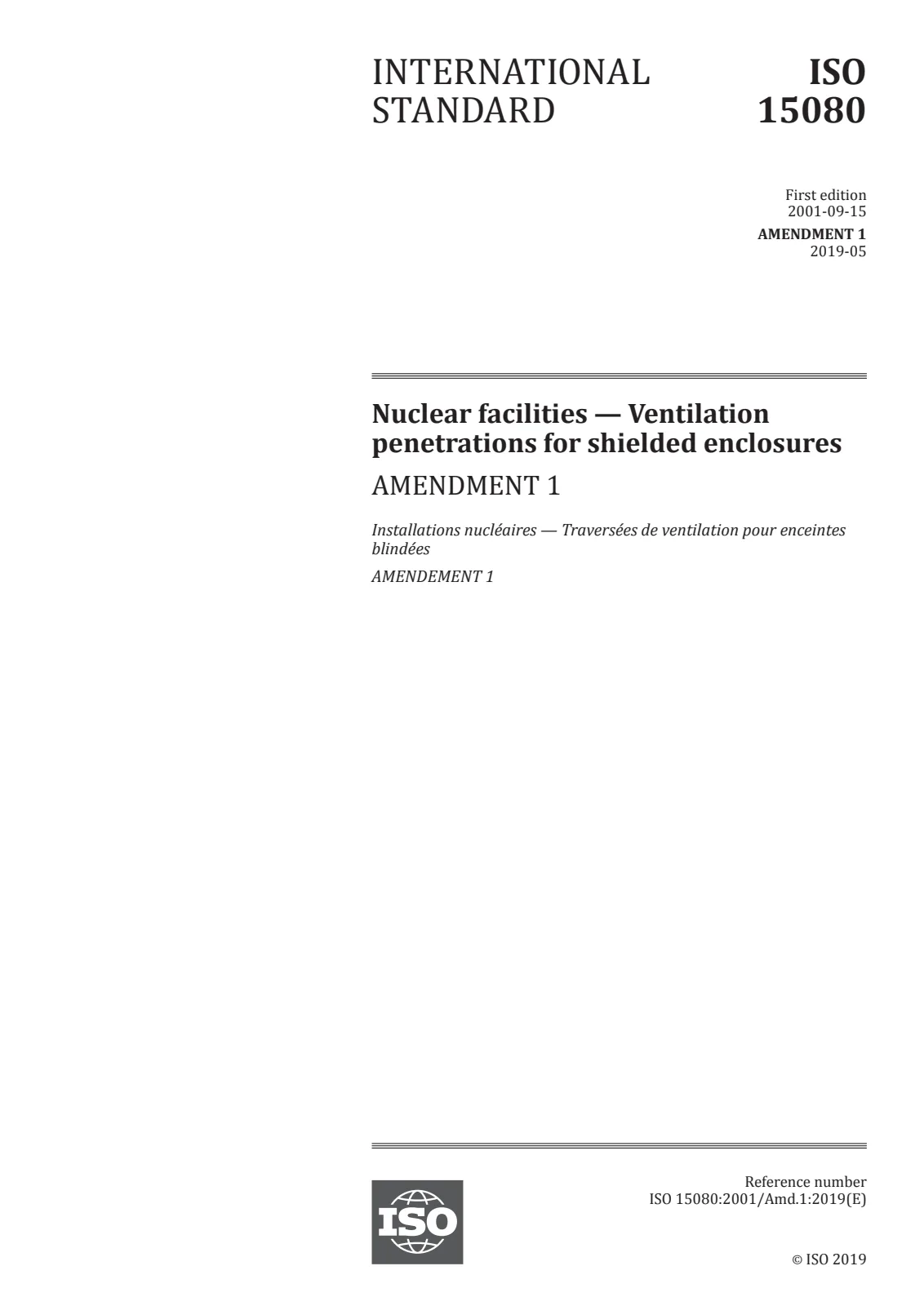

Открыть превью (PDF)Nuclear facilities — Ventilation penetrations for shielded enclosures — Amendment 1
