ISO 14490-7:2016 PDF

Optics and photonics — Test methods for telescopic systems — Part 7: Test methods for limit of resolution

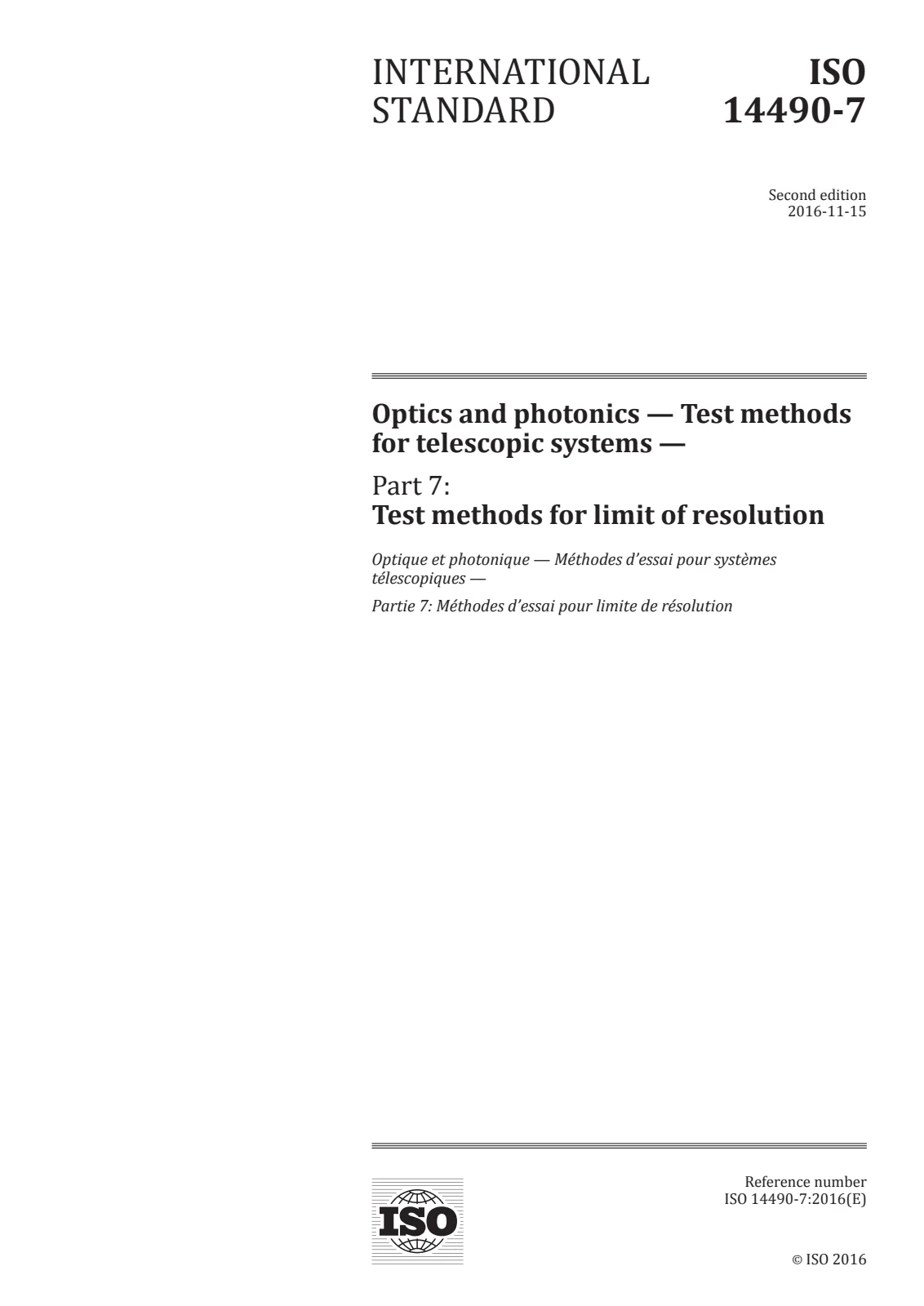

Первая страница стандарта ISO 14490-7:2016

Открыть превью (PDF)

Название (английский):

ISO 14490-7:2016

Optics and photonics — Test methods for telescopic systems — Part 7: Test methods for limit of resolution

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 10
Дата публикации:: 14 ноября 2016 г.
Издание:: ISO IS 14490 edition 2 version 1
ICS:: 37.020

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:150 €

Описание (английский):

ISO 14490-7:2016 specifies the test methods for the determination of the limit of resolution of telescopic systems and observational telescopic instruments.

Технические детали

Технический комитет: ISO/TC 172/SC 4 - Telescopic systems
SKU: ISO 14490-7:2016

Abstract

Overview

ISO 14490-7:2016 - "Optics and photonics - Test methods for telescopic systems - Part 7: Test methods for limit of resolution" defines standardized procedures to measure the limit of resolution of telescopic systems and observational telescopic instruments. The standard specifies test arrangements, required test equipment, measurement procedures, calculation methods and reporting requirements to determine the minimum angular separation at which adjacent bars in a bar‑type resolution target can be distinguished.

Key topics and technical requirements

Test concept: Uses a bar‑type resolution test target placed at the focal plane of a collimator to produce a collimated image for the test specimen (telescope or observational instrument).
Resolution definition: The limit of resolution is the minimum angular distance between centrelines of adjacent bright (or dark) bars that can be detected through the test specimen.
Essential equipment & setup:
- Collimator lens with diameter ≥ 1.2 × entrance‑pupil diameter of the test specimen and focal length ≥ 5 × objective focal length.
- Bar‑type resolution test target (glass plate with vertical, horizontal and ±45° patterns) mounted at the collimator focal plane.
- Uniform illumination (correlated colour temperature 5 000–6 000 K; mean illuminance uniformity ±5% Peak-to‑Valley).
- Optional auxiliary telescope; magnification must not reduce the system exit pupil below 0.8 mm. Guidance given when auxiliary telescope is unnecessary (e.g., angular limit worse than 2′–3′ and exit pupil

Overview

Key topics and technical requirements

Test concept: Uses a bar‑type resolution test target placed at the focal plane of a collimator to produce a collimated image for the test specimen (telescope or observational instrument).
Resolution definition: The limit of resolution is the minimum angular distance between centrelines of adjacent bright (or dark) bars that can be detected through the test specimen.
Essential equipment & setup:
- Collimator lens with diameter ≥ 1.2 × entrance‑pupil diameter of the test specimen and focal length ≥ 5 × objective focal length.
- Bar‑type resolution test target (glass plate with vertical, horizontal and ±45° patterns) mounted at the collimator focal plane.
- Uniform illumination (correlated colour temperature 5 000–6 000 K; mean illuminance uniformity ±5% Peak-to‑Valley).
- Optional auxiliary telescope; magnification must not reduce the system exit pupil below 0.8 mm. Guidance given when auxiliary telescope is unnecessary (e.g., angular limit worse than 2′–3′ and exit pupil
