ISO 13464:1998 PDF

Simultaneous determination of uranium and plutonium in dissolver solutions from reprocessing plants — Combined method using K-absorption edge and X-ray fluorescence spectrometry

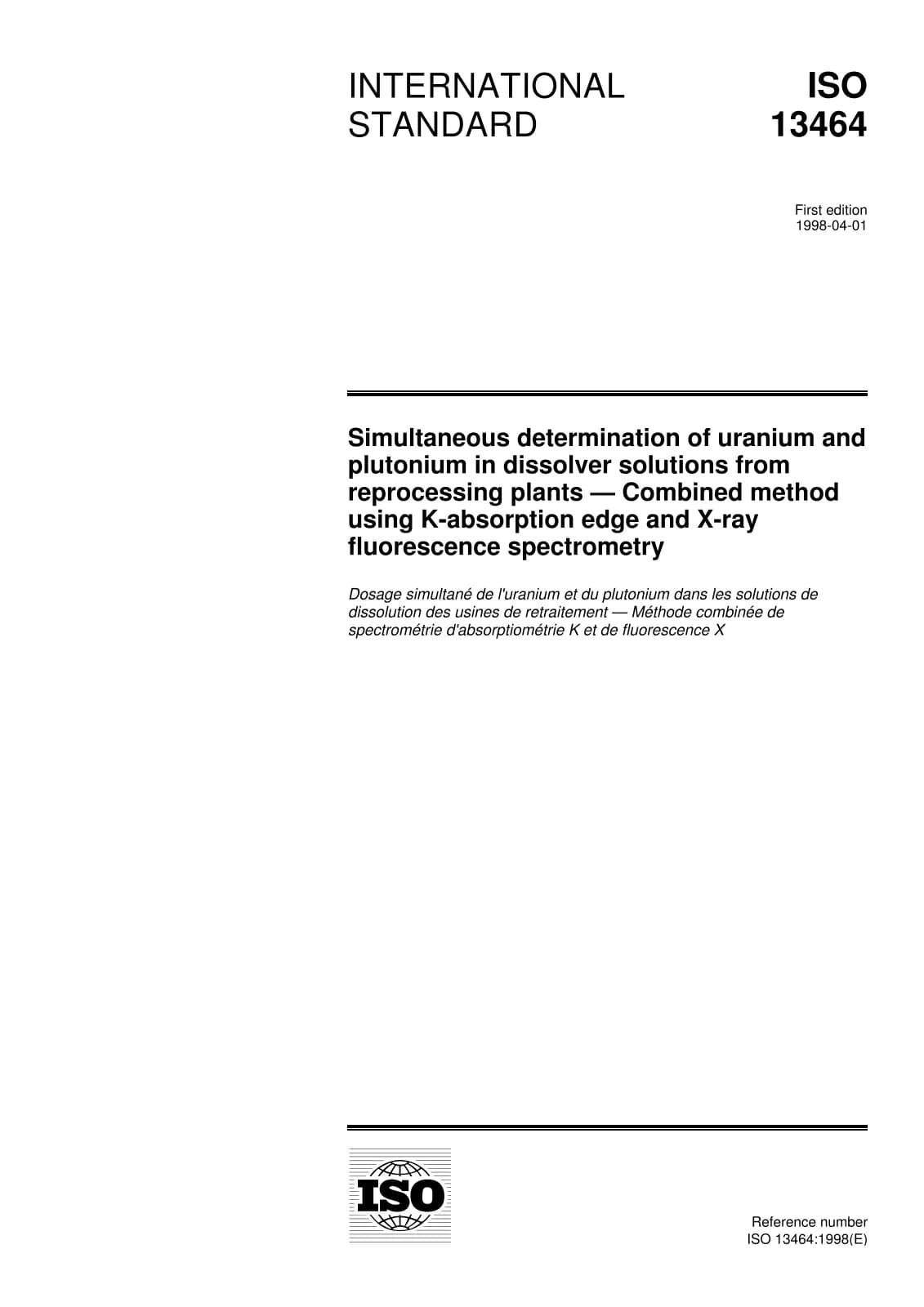

Первая страница стандарта ISO 13464:1998

Открыть превью (PDF)

Название (английский):

ISO 13464:1998

Simultaneous determination of uranium and plutonium in dissolver solutions from reprocessing plants — Combined method using K-absorption edge and X-ray fluorescence spectrometry

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 13
Дата публикации:: 9 апреля 1998 г.
Издание:: ISO IS 13464 edition 1 version 1
ICS:: 27.120.30

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:195 €

Технические детали

Технический комитет: ISO/TC 85/SC 5 - Nuclear installations, processes and technologies
SKU: ISO 13464:1998

Abstract

Overview

ISO 13464:1998 specifies a nondestructive, combined K‑absorption edge (K‑edge) and X‑ray fluorescence (XRF) method for the simultaneous determination of uranium (U) and plutonium (Pu) volumetric concentrations in nitric‑acid dissolver/feed solutions from reprocessing plants. The procedure is designed to operate directly on original feed solutions (typical ranges ~150–300 g·L−1 U and ~1–2.5 g·L−1 Pu) in the presence of fission products (up to ~10 TBq·L−1 β,γ activity).

Keywords: ISO 13464:1998, K‑absorption edge, K‑edge densitometry, X‑ray fluorescence (XRF), uranium plutonium determination, nondestructive assay, reprocessing plant dissolver solutions.

Key topics and technical requirements

Measurement principle: irradiate a small sample (≈3–5 mL) with a high‑energy X‑ray continuum (up to ≈150 keV).
- K‑edge densitometry (KED) measures abrupt attenuation change across the uranium K‑absorption edge (E ≈ 115.6 keV) to determine uranium concentration.
- XRF measures the U/Pu Kα X‑ray intensity ratio to obtain the U/Pu mass ratio; plutonium concentration is then calculated from the uranium result and the ratio.
Instrumentation: two high‑resolution HPGe detectors, fast pulse processing, computer‑based MCA, and a 3 kW X‑ray tube (typical rating ~150 kV/10–15 mA). HPGe specs: active area ~100–200 mm2, depletion depth ~10–13 mm, resolution ≤0.6 keV FWHM at 122 keV.
Geometry & shielding: tightly controlled tube‑to‑sample distance (≈6.5 cm), specific detector/collimator angles (Θ ≥ 150°), and limited K‑edge detector solid angle (Ω

Overview

Keywords: ISO 13464:1998, K‑absorption edge, K‑edge densitometry, X‑ray fluorescence (XRF), uranium plutonium determination, nondestructive assay, reprocessing plant dissolver solutions.

Key topics and technical requirements

Measurement principle: irradiate a small sample (≈3–5 mL) with a high‑energy X‑ray continuum (up to ≈150 keV).
- K‑edge densitometry (KED) measures abrupt attenuation change across the uranium K‑absorption edge (E ≈ 115.6 keV) to determine uranium concentration.
- XRF measures the U/Pu Kα X‑ray intensity ratio to obtain the U/Pu mass ratio; plutonium concentration is then calculated from the uranium result and the ratio.
Instrumentation: two high‑resolution HPGe detectors, fast pulse processing, computer‑based MCA, and a 3 kW X‑ray tube (typical rating ~150 kV/10–15 mA). HPGe specs: active area ~100–200 mm2, depletion depth ~10–13 mm, resolution ≤0.6 keV FWHM at 122 keV.
Geometry & shielding: tightly controlled tube‑to‑sample distance (≈6.5 cm), specific detector/collimator angles (Θ ≥ 150°), and limited K‑edge detector solid angle (Ω
