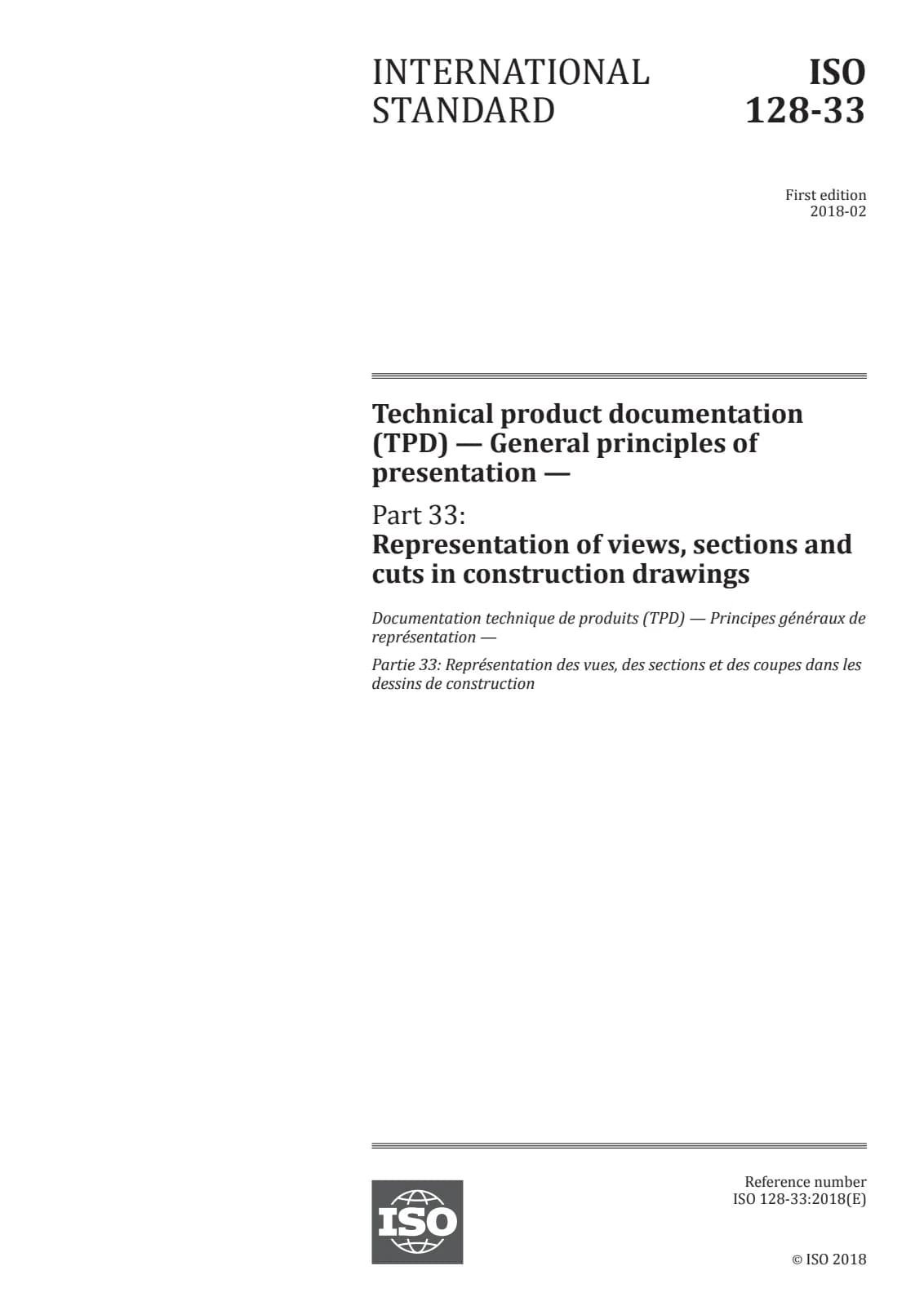

ISO 128-33:2018 PDF
Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawings
Открыть превью (PDF)Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawingsНазвание (английский):
ISO 128-33:2018
Technical product documentation (TPD) — General principles of presentation — Part 33: Representation of views, sections and cuts in construction drawings
- Статус документа:
- Отменён
- Формат:
- Электронный (PDF)
- Количество страниц:
- 8
- Дата публикации:
- 14 марта 2018 г.
- Издание:
- ISO IS 128 edition 1 version 1
- ICS:
- 01.100.30
Описание (английский):
ISO 128-33:2018 lays down general rules for marking, designation, placing and orientation of views, sections and cuts, and the position of text in relation to figures on construction drawings. For all general rules, reference is made to the relevant parts of the ISO 128 series. As regards relative positions of views, the method using reference arrows according to ISO 128‑30 is used.
Технические детали
- Технический комитет
- ISO/TC 10/SC 8 - Construction documentation
- SKU
- ISO 128-33:2018
