Overview

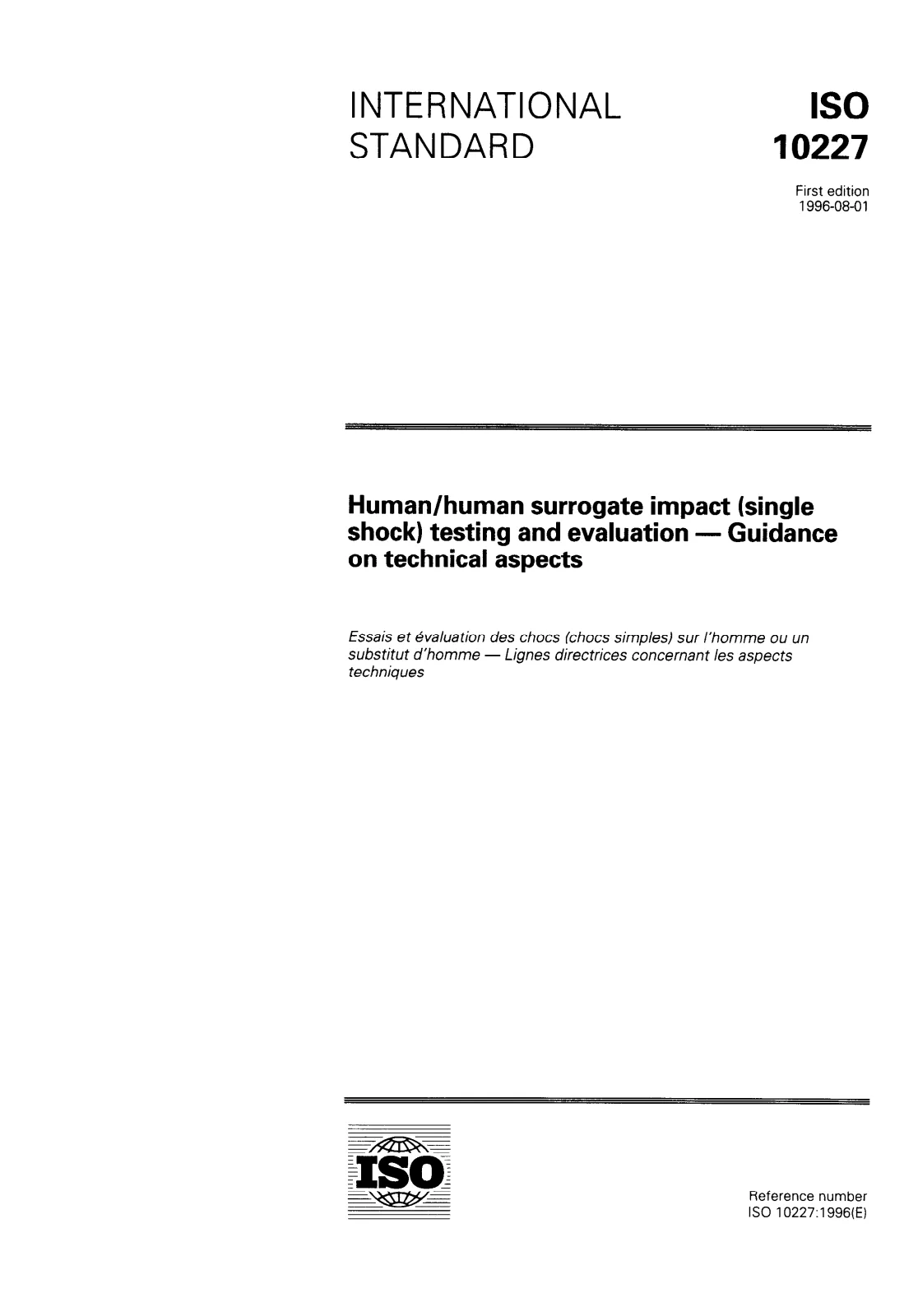

ISO 10227:1996, titled Human/human surrogate impact (single shock) testing and evaluation - Guidance on technical aspects, is an international standard developed by the International Organization for Standardization (ISO). It provides comprehensive guidance on the technical aspects of conducting impact tests involving humans or human surrogates, such as cadavers, animals, or manikins. The standard focuses on procedures for collecting, measuring, and reporting biomechanical data related to single shock impacts, aiming to ensure consistency, accuracy, and comparability across experimental research.
This standard addresses a vital need in vehicle safety engineering and biomedical research, emphasizing the measurement requirements, instrumentation, data processing, and reporting methods essential for designing safer vehicles and understanding injury mechanisms during collisions.
Key Topics
-
Scope and Application
ISO 10227:1996 focuses exclusively on indirect (inertial) single shock impacts affecting the human body or surrogates, excluding direct surface impacts and active restraint systems like airbags. It serves as a guideline for experimental protocols and data reporting rather than prescribing exposure limits or test conditions.
-
Measurement Requirements
The standard stresses the importance of defining initial conditions for test subjects, including their coordinate systems, anthropometric measurements (e.g., stature, head circumference, segment lengths), and environmental factors impacting tests. It mandates clear description of restraint and seating arrangements relative to vehicle coordinate systems.
-
Instrumentation
Proper instrumentation is critical for precise biomechanical data, and ISO 10227 provides detailed recommendations on the use of transducers and displacement tracking devices:
- Transducers should be lightweight and firmly attached to skeletal landmarks to minimize response distortion.
- Cameras for displacement tracking must be accurately oriented and synchronized to capture time-dependent anatomical segment movements.
- Data acquisition systems require rigorous calibration, including frequency response, linearity, damping characteristics, and cross-sensitivity assessments.
-
Data Processing
Processing is to comply with defined filtering, digitization, and storage guidelines to maintain data integrity. Sampling frequencies and bit resolutions must be appropriate to prevent aliasing and digitization errors, with 12-bit digitization preferred.
-
Reporting of Results
Results reporting should include inertial responses such as acceleration and force transmission at key anatomical points (e.g., occipital condyles, thoracic vertebrae), displacement data, physiological measurements, subjective feedback, and medical findings. This standard ensures data can be effectively compared across studies for injury analysis and safety evaluations.
Applications
ISO 10227:1996 is highly relevant in several practical fields:
-
Automotive Safety Testing
Used in vehicle crash test protocols to evaluate occupant safety by measuring biomechanical responses during impact scenarios, improving vehicle design, restraint systems, and seating ergonomics.
-
Biomechanical and Injury Research
Facilitates controlled human surrogate testing to better understand human tissue response to mechanical shock, informing medical research and injury prevention strategies.
-
Regulatory Compliance and Standards Development
Provides a harmonized technical basis for research that informs national and international safety regulations relating to vehicular impacts and occupant protection.
-
Design and Certification of Protective Equipment
Applicable in testing protective gear and restraint devices by accurately capturing human or surrogate impact responses.
Related Standards
ISO 10227:1996 references and complements other standards vital for comprehensive biomechanical impact testing:
-
ISO 5805 – Vocabulary related to mechanical vibration and shock affecting humans, standardizing terminology used in impact research.
-
ISO 8727 – Defines human exposure biodynamic coordinate systems, crucial for relating test data to anatomical and vehicle references.
-
Other ISO/IEC Standards – Coordinated efforts between ISO and IEC ensure electrotechnical instrumentation used in data acquisition and analysis follows compatible international requirements.
By following ISO 10227:1996, researchers and engineers can systematically conduct human and human surrogate impact testing with standardized technical rigor, aiding the advancement of safer vehicle environments and enhanced occupant protection through reliable biomechanical data collection and evaluation.
