Overview

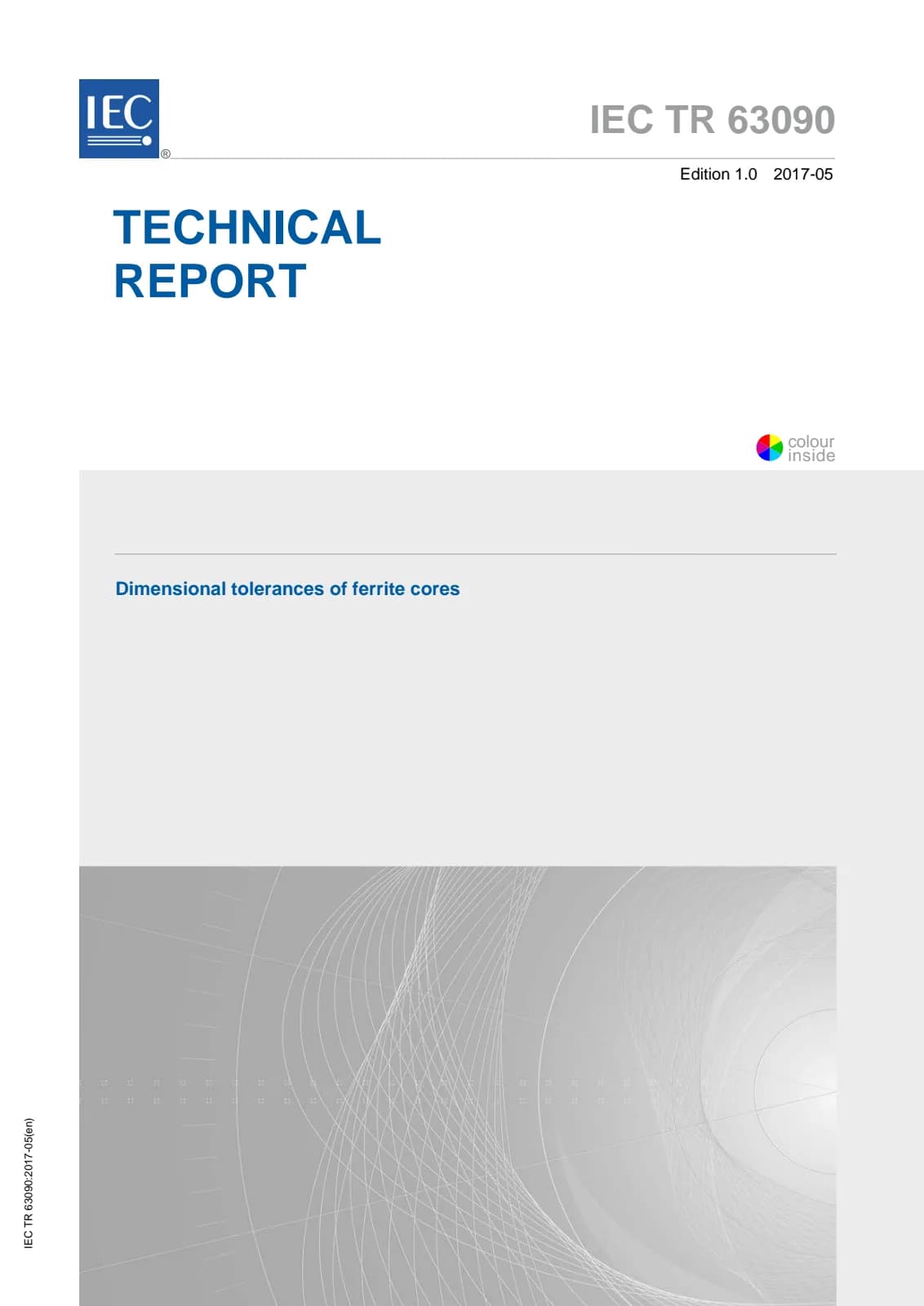

IEC TR 63090:2017 provides comprehensive guidelines on the dimensional tolerances of ferrite cores. Published by the International Electrotechnical Commission (IEC), this Technical Report is intended as a practical reference for both ferrite core suppliers and users. Its main purpose is to facilitate effective dialogue during the design, specification, and procurement processes, ensuring mutual understanding regarding tolerated dimensional variations of ferrite cores. This is particularly important as precise core dimensions are critical for the proper functioning and assembly of electrical and electronic equipment.
Key Topics
- Dimensional Tolerances: The report outlines recommended boundaries for tolerances on ferrite core dimensions across common shapes, such as E-cores, ring cores, ETD/EER-cores, and planar ER-cores.
- Core Design Parameters: Guidelines are provided for tolerances related to various processing conditions, including:
- Mould and sintering processes
- Press direction
- Grinding direction
- Variation Causes: The document identifies key causes of dimensional variation, such as material shrinkage during sintering, differences in moulding density, profile deformation, and non-uniformities in material distribution.
- Industry Practice: The tolerances recommended consolidate information from IEC standards and industry catalogues, providing a harmonized reference useful for new core designs.
- Reference Data and Figures: Annexes and figures offer detailed data, summary tables, and cause-and-effect diagrams visualizing sources of dimensional variation.
Applications
IEC TR 63090:2017 supports multiple stakeholders in the electronics and electrical engineering sectors:
- Component Design: Designers use the referenced tolerances to ensure cores fit correctly in assemblies, meeting form, fit, and function requirements for products like transformers, inductors, and filters.
- Supplier-User Negotiations: By standardizing tolerance criteria, the document helps avoid misunderstandings in contracts and product specifications between core suppliers and OEMs (original equipment manufacturers).
- Quality Assurance: Manufacturers and quality engineers can benchmark production output against recommended tolerances, improving consistency and reducing the risk of nonconforming parts.
- Research & Development: Researchers developing novel core shapes or sizes can reference the report’s guidelines as a starting point, aiding rapid prototyping and product design verification.
Related Standards
IEC TR 63090:2017 serves as a companion to a suite of IEC standards focusing on ferrite core dimensions, including:
- IEC 62317 Series: Covers detailed dimensional specifications for various ferrite core shapes (e.g., E-cores, ring cores, ETD-cores, planar cores, pot-cores, RM-cores, PQ-cores, and more).
- IEC 62323: Details on half-pot cores.
- IEC 60401-1: Relates to terms, definitions, and profile deformation factors affecting ferrite cores.
Keywords: ferrite cores, dimensional tolerances, IEC TR 63090, core design, transformer cores, inductor cores, E-cores, ring cores, planar ER-cores, ETD/EER-cores, ferrite core supplier, IEC standards, electrical components, quality assurance
Adopting IEC TR 63090:2017 ensures that the communication between ferrite core users and suppliers is based on a globally recognized reference, promoting manufacturing consistency and reliable product performance across the electrical and electronic industries.
