Overview
IEC 63522-11:2025, published by the International Electrotechnical Commission (IEC), establishes standardized test and measurement methods for evaluating the enclosure protection and degree of protection offered by electrical relay housings. This standard outlines procedures for assessing a relay's ability to withstand various environmental conditions during transportation, storage, and operational use, focusing on the effectiveness of enclosure sealing and its impact on relay functionality and safety.
Ensuring proper enclosure protection is essential for maintaining electrical relay performance, minimizing failures due to dust, water, or chemical ingress, and complying with international product reliability expectations. IEC 63522-11 is relevant for manufacturers, testing laboratories, and quality assurance teams involved in relay design, manufacturing, and certification processes.
Key Topics
-
Relay Technology Categories (RT Categories):
- RT 0: Unenclosed relays
- RT I: Dust-protected relays
- RT II: Flux proof relays
- RT III: Wash-tight relays
- RT IV: Sealed relays
- RT V: Hermetically sealed relays
-
Test Methods for Enclosure Protection:
- Standardized tests for dust, flux, and water ingress
- Specific methods such as dust tests, immersion, and helium leak detection
- Procedure variations for different RT categories
-
Degree of Protection (IP Code):
- Evaluation according to IEC 60529
- Defined protection levels against solid particles (first characteristic numeral) and water ingress (second characteristic numeral)
- No direct correspondence between RT categories and IP codes; both address different aspects of relay usage and risk
-
Testing Conditions:
- Clear criteria for mounting position, pressure, exposure duration, and test sequence
- Consideration of manufacturer specifications and application conditions
-
Evaluation and Reporting:
- Criteria for passing tests, such as absence of dust or flux and adherence to permissible leak rates
- Required test documentation to support traceability, reproducibility, and compliance
Applications
-
Relay Manufacturing:
Ensures relay enclosures are designed and tested to protect internal components from environmental hazards such as dust, moisture, and chemicals, supporting extended product life and operational reliability.
-
Quality Assurance:
Provides a framework for consistent testing and quality assessment, helping manufacturers and testing facilities validate product claims and meet industry requirements.
-
Product Certification and Compliance:
Serves as a reference for conformity assessment, certification schemes, and regulatory submissions related to relay enclosure protection.
-
Design and Specification:
Assists engineers in selecting suitable relays for specific environmental conditions and in specifying the appropriate RT category and IP code for end-use applications.
-
Supply Chain and Procurement:
Offers standardized definitions and benchmarks for purchasing teams, facilitating the specification and sourcing of relays with robust enclosure protection.
Related Standards
- IEC 60529: Degrees of protection provided by enclosures (IP code)
- IEC 60068-2-17: Environmental testing – Tests for sealing, including helium leak detection
- IEC 60068-2-68: Environmental testing – Dust and sand tests
- IEC 63522-0: Electrical relays – Tests and measurements – General and guidance
- IEC 63522-4: Dielectric strength test for relays
- IEC 63522-7: Functional testing for relays
- IEC 63522-15: Robustness of terminals
- IEC 63522-19: Electrical endurance test for relays
Practical Value
Following IEC 63522-11:2025 helps organizations guarantee that their electrical relays provide adequate protection under real-world conditions. Adherence to this standard leads to products that are more reliable, better suited for challenging environments, and capable of meeting international market expectations for safety and quality. Enclosure protection is critical in sectors such as industrial automation, transportation, energy, and consumer electronics, where electrical relay performance directly impacts system safety and reliability.
Keywords: IEC 63522-11, electrical relay testing, enclosure protection, IP code, degree of protection, environmental testing, relay sealing, international standards, relay quality assurance.

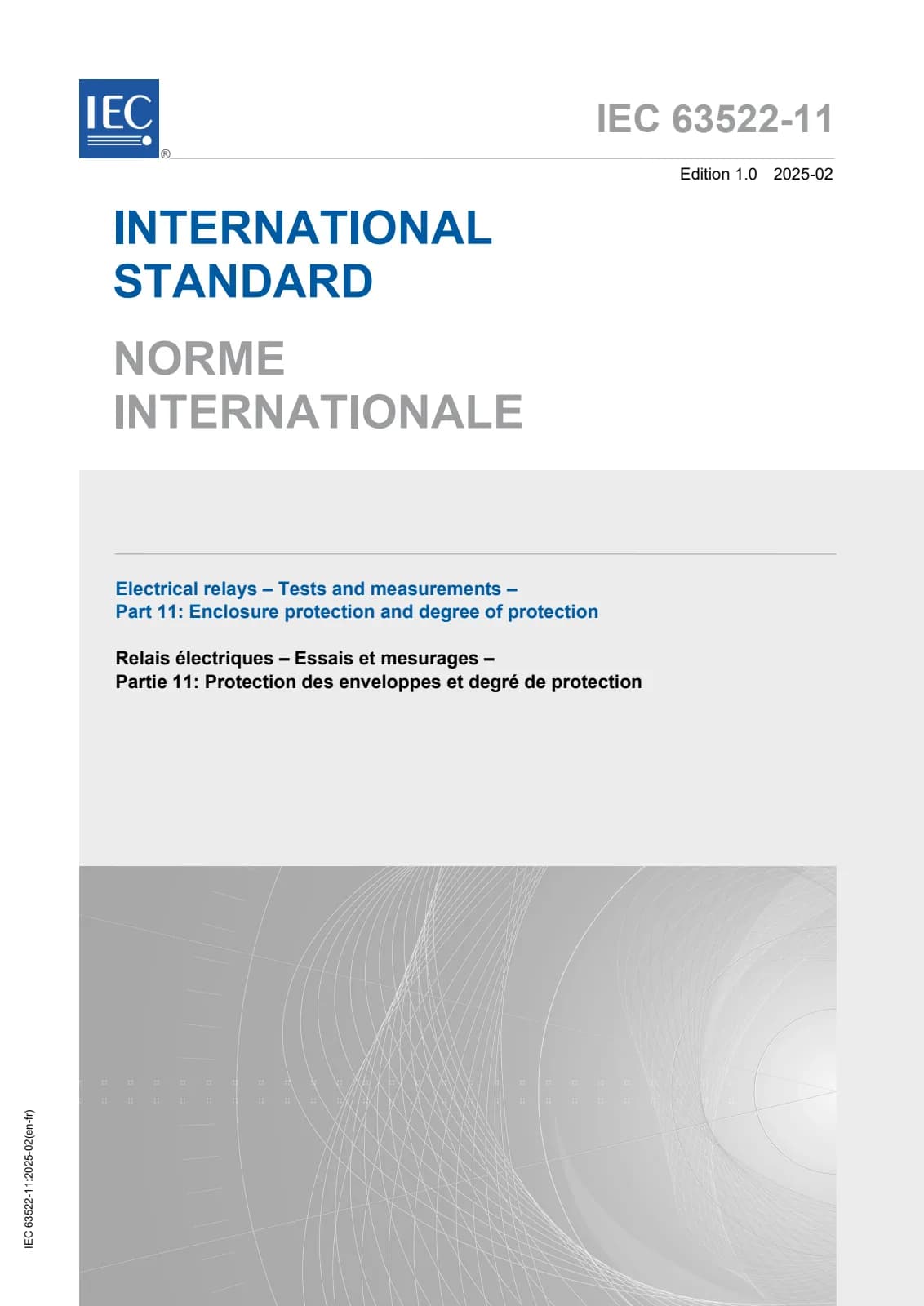

Открыть превью (PDF)Electrical relays - Tests and measurements - Part 11: Enclosure protection and degree of protection
