Plugs, socket-outlets and ship couplers for high-voltage shore connection (HVSC) systems - Part 1: General requirements

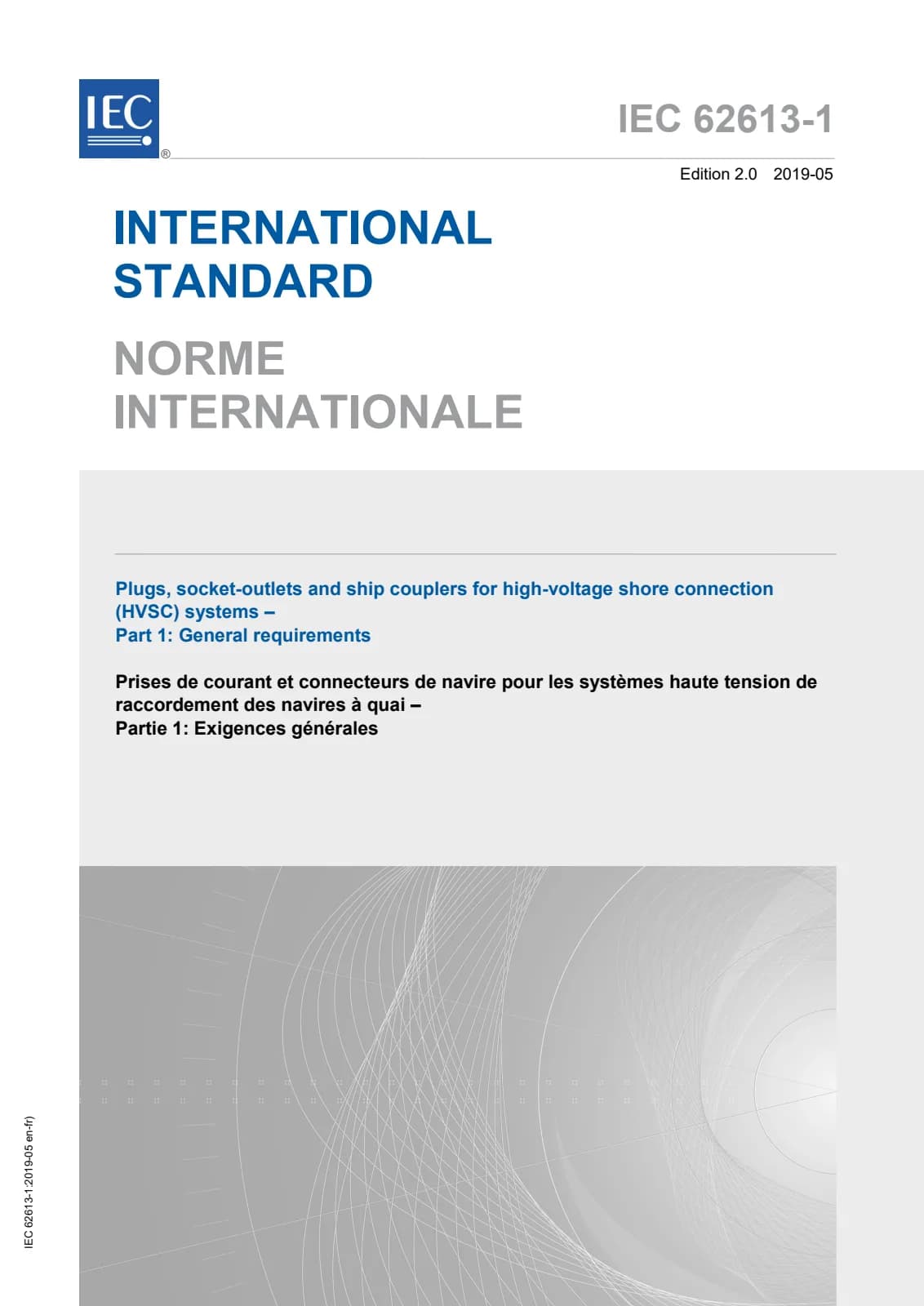

Первая страница стандарта IEC 62613-1:2019

Открыть превью (PDF)

Название (английский):

IEC 62613-1:2019

Plugs, socket-outlets and ship couplers for high-voltage shore connection (HVSC) systems - Part 1: General requirements

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 52
Дата публикации:: 24 мая 2019 г.
Издание:: IEC IS 62613 edition 2 version 1
ICS:: 29.120.30

Язык документа:

ruen

Срок поставки:9 раб. дн. (перевод)

Цена:780 €

Описание (английский):

IEC 62613-1:2019 applies to accessories with - three phases and earth with pilot contacts, - one pole for neutral. These accessories have rated currents not exceeding 500 A and rated operating voltages not exceeding 12 kV 50/60 Hz. This second edition cancels and replaces the first edition published in 2011. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) extension of the scope to an unlimited number of pilot contacts (previously limited to 3); b) update of the Figures and deletion of their embedded texts; c) insertion of tables of keys whenever required by the Figures.
