Overview
IEC 62056-7-6:2013 is an international standard developed by the International Electrotechnical Commission (IEC) that defines the 3-layer, connection-oriented HDLC-based communication profile for electricity metering data exchange using the DLMS/COSEM suite. This standard provides a structured communication protocol for reliable and secure data exchange between electricity meters and data collection systems, supporting both local and remote communication scenarios. IEC 62056-7-6 ensures interoperability and seamless integration within advanced metering infrastructure, contributing to accurate energy measurement and efficient management of metering data.
Key Topics
- 3-Layer Communication Profile: The standard specifies a three-layer protocol architecture based on the OSI model:
- Application Layer (AL): Utilizes DLMS/COSEM application protocols for metering data exchange.
- Data Link Layer: Employs the HDLC (High-level Data Link Control) protocol as specified in IEC 62056-46.
- Physical Layer: Covers physical connectivity requirements as defined in IEC 62056-42.
- Connection-Oriented Communication: Ensures sessions are established for reliable data transfer, supporting confirmed and unconfirmed data exchange and event notifications.
- Addressing Scheme: Implements a robust identification and addressing system using HDLC addresses to distinguish between physical and logical devices, supporting multi-drop configurations and ensuring unique identification in complex networks.
- Service Mapping: Defines the relationship between application layer service requests and underlying data link layer services, specifying how different operations are mapped to HDLC frames (e.g., I-frames for confirmed messages, UI-frames for unconfirmed).
- Support for Long Messages and Multi-Drop Operation: Details transparent long message handling and managing multi-device environments on shared communication resources, such as modem-enabled telephone lines.
Applications
IEC 62056-7-6:2013 is widely used in advanced electricity metering systems, offering practical value in the following areas:
- Smart Metering Infrastructure: Enables seamless, standardized communication for remote meter reading, tariff management, and load control across utility networks.
- Multi-Drop Data Collection: Supports efficient data retrieval from multiple meters sharing the same physical communication line, facilitating implementations in large residential or commercial buildings.
- Event Notification and Remote Monitoring: Ensures timely reporting of significant events (e.g., power outages, tampering) from meters to central systems, enhancing responsiveness and reliability.
- Interoperability: Guarantees compatibility between meters and management systems from different manufacturers based on the DLMS/COSEM suite and HDLC protocol.
- Flexible Deployment: Applicable in both direct local connections (optical ports, current loops) and remote communication channels (PSTN, GSM networks), supporting diverse deployment needs.
Related Standards
Implementation of IEC 62056-7-6:2013 may require reference to the following related IEC and international standards:
- IEC 62056-21: Direct local data exchange for meter reading, tariff, and load control.

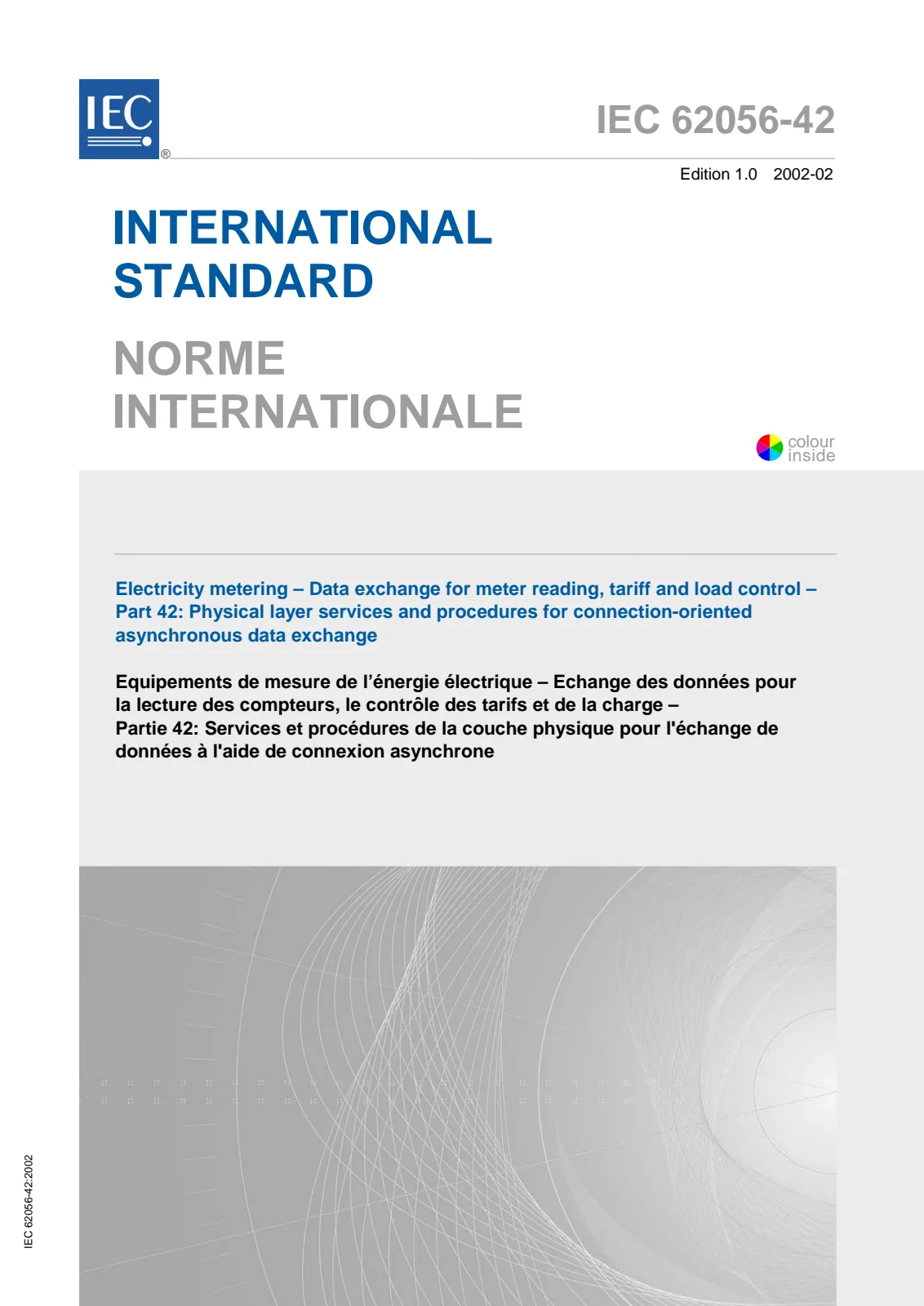

- IEC 62056-42: Physical layer services and procedures for connection-oriented asynchronous data exchange.
- IEC 62056-46: Data link layer using the HDLC protocol.
- IEC 62056-5-3: DLMS/COSEM application layer specification.
- DLMS UA Blue Book: COSEM Identification System and Interface Classes.
- DLMS UA Green Book: DLMS/COSEM Architecture and Protocols.
- ISO/IEC 8802-2: Logical link control for local and metropolitan area networks.
Practical Value
Adoption of IEC 62056-7-6:2013 supports improved energy data management, facilitates regulatory compliance, and enables the realization of smart grid benefits. Its use in electricity metering data exchange ensures security, accuracy, and efficiency in utility operations, streamlines integration with third-party systems, and future-proofs metering investments by aligning with global interoperability standards.
