IEC 61169-39:2009 PDF

Radio-frequency connectors - Part 39: Sectional specification for CQM series quick lock RF connectors

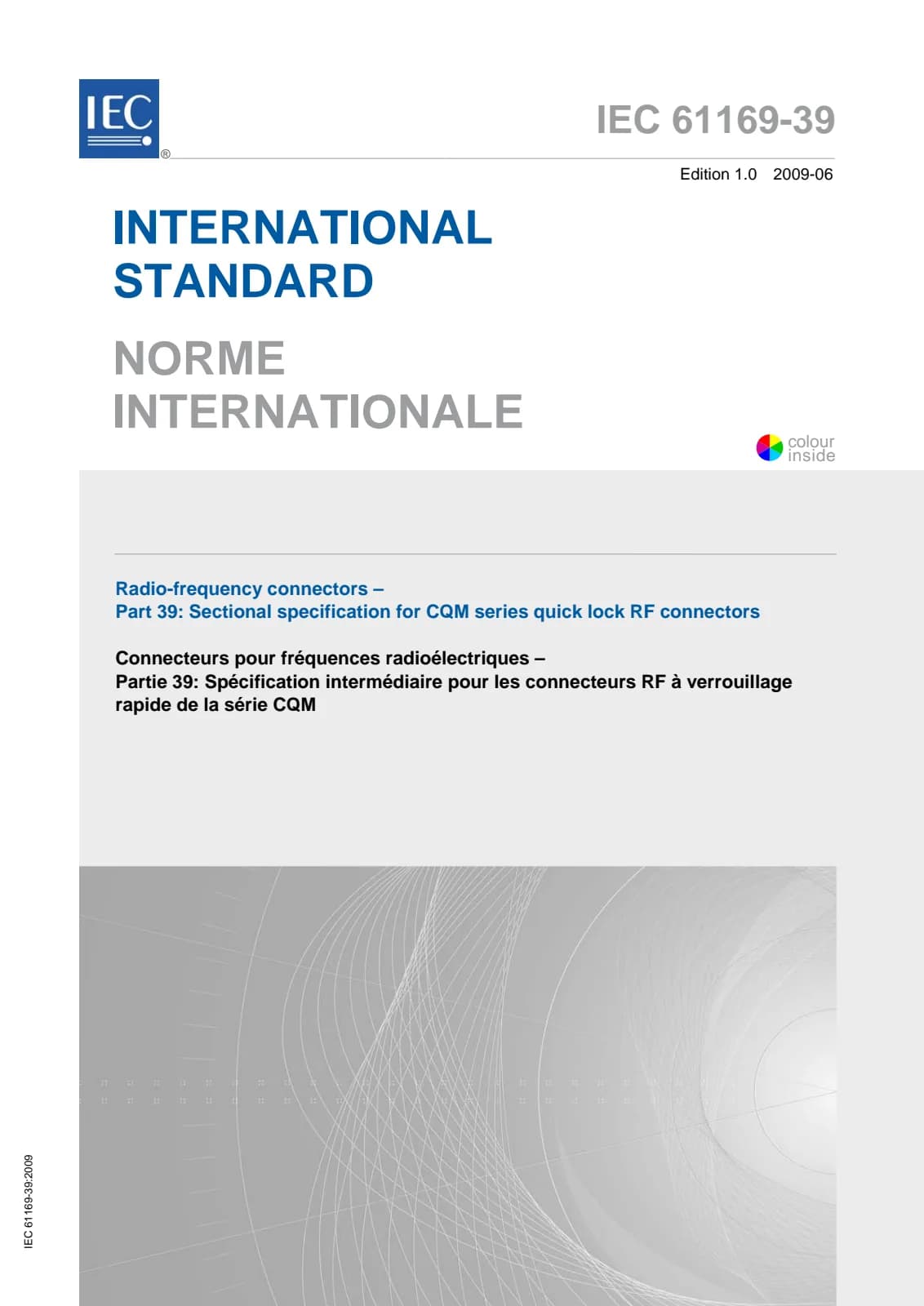

Первая страница стандарта IEC 61169-39:2009

Открыть превью (PDF)

Название (английский):

IEC 61169-39:2009

Radio-frequency connectors - Part 39: Sectional specification for CQM series quick lock RF connectors

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 26
Дата публикации:: 16 июня 2009 г.
Издание:: IEC IS 61169 edition 1 version 1
ICS:: 31.140

Язык документа:

ruen

Срок поставки:5 раб. дн. (перевод)

Цена:390 €

Описание (английский):

IEC 61169-39:2009 is a sectional specification. It provides information and rules for the preparation of detail specifications for CQM series quick lock RF connectors together with the pro forma blank detail specification (DS). It also prescribes mating interface dimensions for general purpose connectors, dimensional details of standard test connectors grade 0, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to CQM series connectors. This specification indicates the recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H. The French version of this standard has not been voted upon. This bilingual version, published in 2011-04, corresponds to the English version.

Технические детали

Технический комитет: SC 46F - RF and microwave passive components
SKU: IEC 61169-39:2009

Abstract

Overview

IEC 61169-39:2009 is a sectional specification from the International Electrotechnical Commission (IEC) for the CQM series quick‑lock RF connectors. It defines the rules and pro‑forma blank detail specification (DS) used to prepare vendor and product detail specifications for CQM connectors. The standard targets 50 Ω quick‑lock connectors intended for high‑power microwave applications (operating frequency limit at least 4 GHz) used with RF cables and microstrips.

Key Topics

Detail specification guidance: Rules and a blank DS (pro forma) to standardize how manufacturers document CQM connector variants.
Mating interface dimensions: Prescribed dimensional data for general‑purpose connectors (Grade 2) and for standard test connectors (Grade 0), supported by figures and tables for reproducible mating and interchangeability.
Gauging information: Definitions and test sequences for gauges (outer contact and centre contact pins) used to size and verify contacts and retention forces.
Quality assessment and tests: Selected tests and measuring methods drawn from IEC 61169-1, including acceptance and periodic test schedules and inspection requirements for assessment levels M and H.
Performance and inspection requirements: Recommended performance characteristics, test severities and inspection procedures to be referenced when writing detail specifications.
Supplementary material: Illustrative figures and dimensional tables for connectors, gauges and standard test connectors to support manufacturing and test processes.

Applications

IEC 61169-39 is practical for organizations that design, manufacture, test, procure or validate RF connectors:

Connector manufacturers - to prepare compliant detail specifications, set production tolerances, and demonstrate interchangeability.
Test laboratories and quality engineers - to apply prescribed gauges, acceptance/periodic tests and quality conformance inspection procedures.
System integrators and RF designers - to ensure connector choices meet mechanical and electrical mating interface requirements for 50 Ω, up to ≥4 GHz applications.
Procurement and certification teams - to include standardized DS references in purchase orders and qualification procedures.

Using this standard helps ensure mechanical interchangeability, consistent performance characteristics, and repeatable test/inspection regimes for CQM series quick‑lock RF connectors.
