Overview
IEC 60730-2-8:2018/AMD1:2021 is an important amendment to the international standard IEC 60730-2-8, developed by the International Electrotechnical Commission (IEC). This document specifies particular requirements for electrically operated water valves, including essential mechanical requirements. It is used in conjunction with IEC 60730-1, which covers automatic electrical controls more broadly. The amendment ensures enhanced safety, reliability, and performance in automatic electrical control devices that regulate water flow, especially those with motorized electrical actuators.
This standard is essential for manufacturers, engineers, and quality assurance professionals working with electrically operated water valves to ensure compliance with global safety and functionality benchmarks. The amendment includes updated testing methods, mechanical requirement adjustments, and clearer guidelines related to terminals, insulation, heating, and abnormal operating conditions.
Key Topics
-
Scope and Application
IEC 60730-2-8/AMD1:2021 focuses on particular requirements for electrically operated water valves, including their mechanical aspects. It supplements the general automatic electrical controls requirements given in IEC 60730-1.
-
Mechanical Requirements
The amendment details mechanical requirements for water valves with motorized electrical actuators, including torque testing for valves with ISO 7-1 threaded connections using structural steel pipes compliant with ISO 630-2:2011.
-
Electrical Terminals and Connections
Updated provisions on terminals and terminations emphasize compatibility with internal wiring and specialized connectors (e.g., ISO 4400 and ISO 6952 plug connectors). It also applies to terminals designed for pilot duty loads.
-
Heating and Thermal Testing
Tests related to heating of valve components, including conditions under blocked mechanical outputs and temperature endurance of winding insulation in motors, are revised. The maximum allowable winding temperatures for various insulation classes are specified.
-
Abnormal Operating Conditions
The amendment clarifies test methods for abnormal operations such as blocked output tests assessing temperature endurance and running overload tests for motor insulation classes. These tests ensure valves can withstand electrical and mechanical stresses without compromising safety.
-
Normative References Update
This includes replacing outdated standards references with current ISO documents such as ISO 630-2:2011 for technical delivery conditions of structural steels.
Applications
-
HVAC Systems
Automatic water valves compliant with IEC 60730-2-8/AMD1 ensure precise control and safety in heating, ventilation, and air conditioning systems where fluid flow regulation is critical.
-
Industrial Process Control
Electrically operated water valves following this standard are crucial for reliable fluid regulation in automated manufacturing and chemical processing plants.
-
Water Treatment and Distribution
Compliance guarantees valve safety and mechanical integrity in water treatment plants and municipal water distribution networks relying on automated valve control.
-
Safety-Critical Installations
The standard supports applications where electrical control of water flow must meet stringent safety norms to prevent damage or hazards due to component failures or electrical faults.
-
Product Development and Certification
Manufacturers use this amendment to guide design improvements and achieve global certification, demonstrating product conformity and readiness for international markets.
Related Standards
-
IEC 60730-1: Automatic electrical controls – Part 1: General requirements
This forms the foundational standard for automatic electrical controls and must be used alongside IEC 60730-2-8/AMD1.
-
ISO 630-2:2011: Structural steels - Part 2: Technical delivery conditions for structural steels for general purposes
Referenced for materials compliance related to the mechanical testing of valve components.
-
ISO 4400 and ISO 6952: Special connector standards related to valve terminals and terminations.
-
IEC 60730 Series: Covers automatic electrical controls across various appliance types, providing comprehensive safety and performance requirements.
Practical Value
-
Enhanced safety through rigorous thermal and mechanical testing reduces risk of electrical shock and valve failure.
-
Improved reliability of electrically operated water valves ensures consistency in automated fluid control systems.
-
Global compliance facilitates international trade and regulatory acceptance for manufacturers.
-
Clear testing procedures provide manufacturers and testing labs with definitive methodologies for verifying product safety and performance.
For professionals and organizations involved in the development, testing, and application of automatic electrical controls for water valves, IEC 60730-2-8:2018/AMD1:2021 is a critical resource that ensures products meet up-to-date international safety and quality standards.

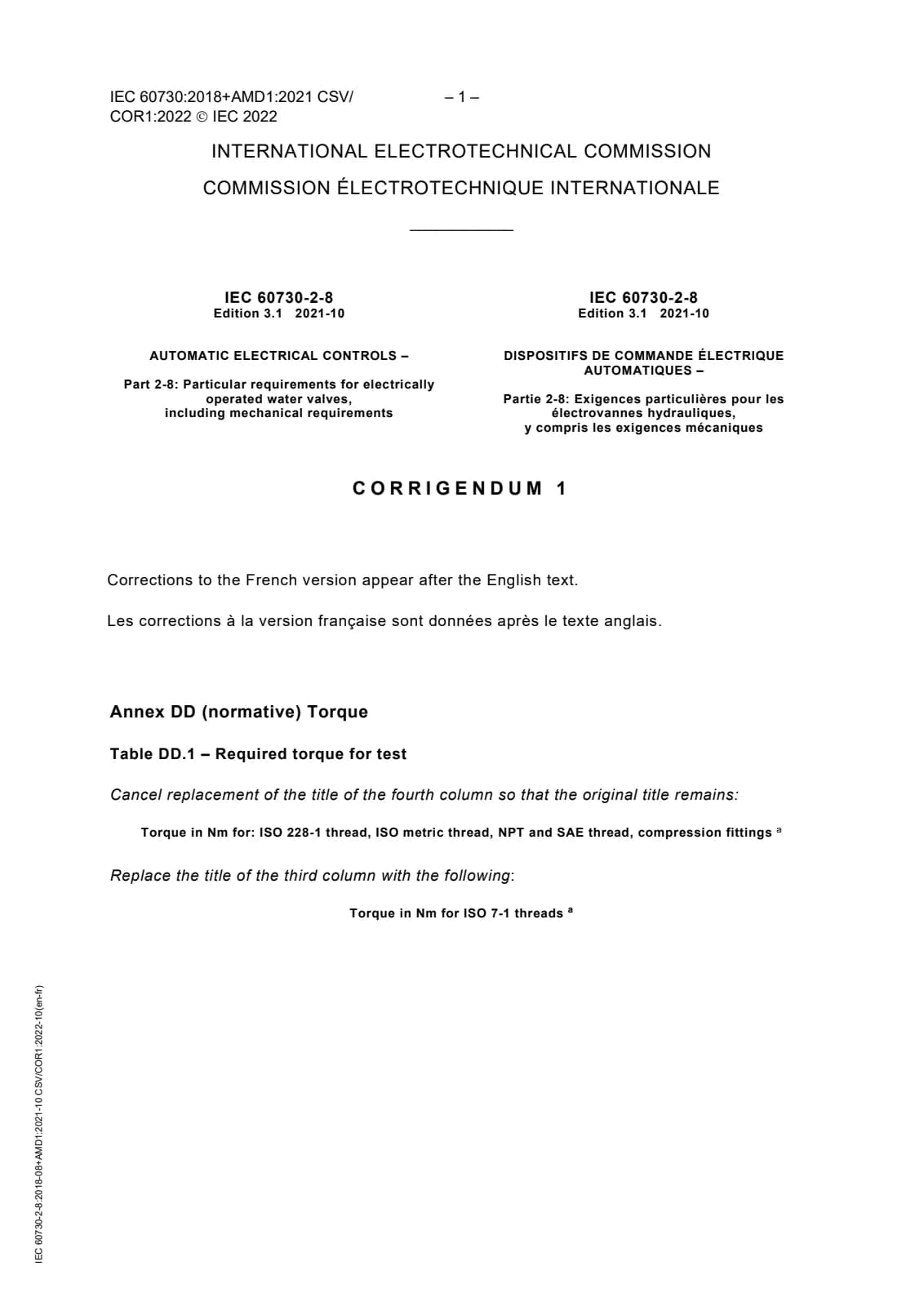

Открыть превью (PDF)Amendment 1 - Automatic electrical controls - Part 2-8: Particular requirements for electrically operated water valves, including mechanical requirements
