IEC 60169-19:1985 PDF
Radio-frequency connectors. Part 19: R.F. coaxial connectors with inner diameter of outer conductor of 2.08 mm (0.082 in) with snap coupling. Characteristic impedance 50 ohms (Type SSMB)

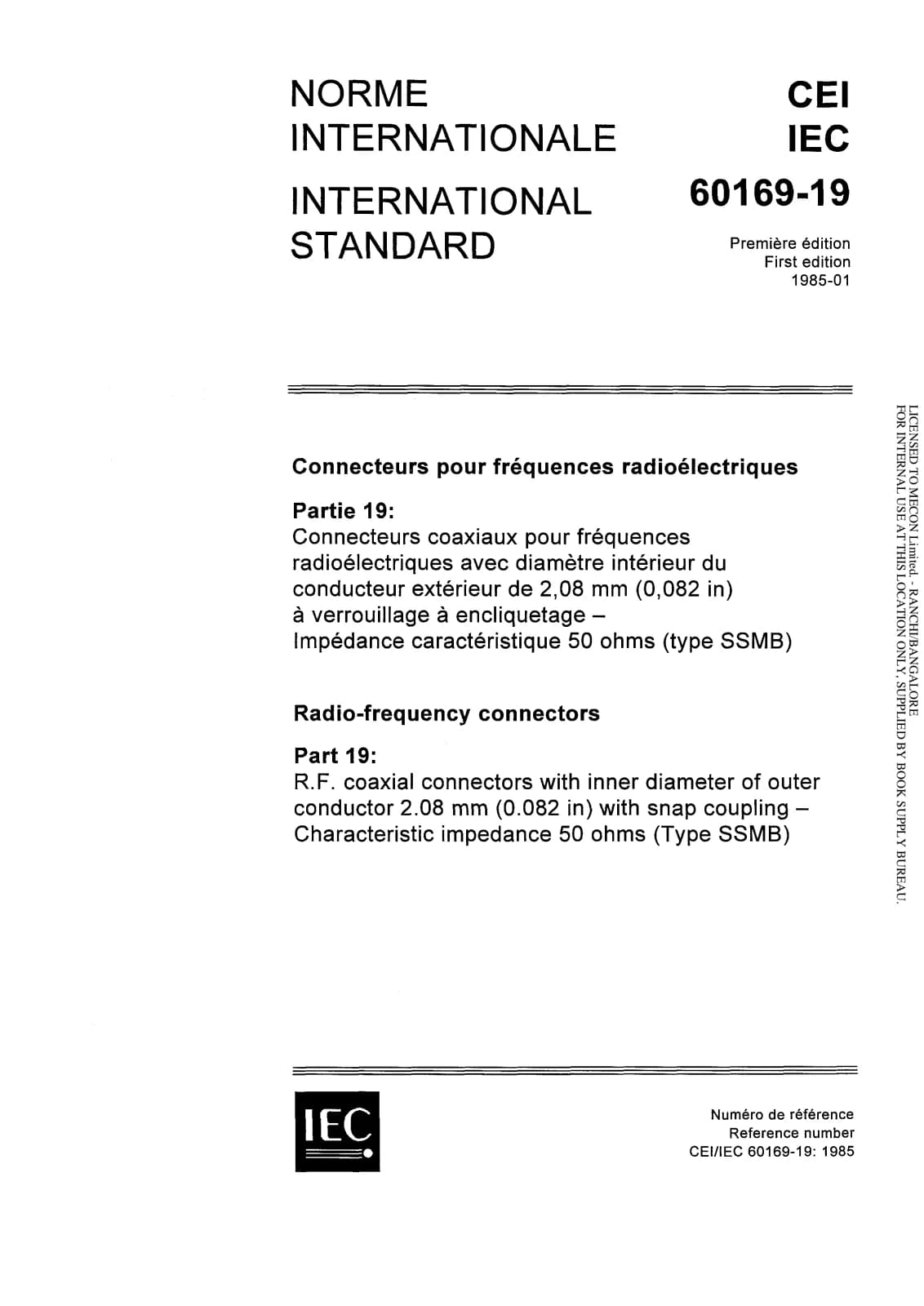

Открыть превью (PDF)Radio-frequency connectors. Part 19: R.F. coaxial connectors with inner diameter of outer conductor of 2.08 mm (0.082 in) with snap coupling. Characteristic impedance 50 ohms (Type SSMB)Radio-frequency connectors. Part 19: R.F. coaxial connectors with inner diameter of outer conductor of 2.08 mm (0.082 in) with snap coupling. Characteristic impedance 50 ohms (Type SSMB)
- Формат:
- Электронный (PDF)
- Количество страниц:
- 1
- Дата публикации:
- 1 июля 1995 г.
- Издание:
- IEC IS 60169 edition 1 version 1
- ICS:
- 33.120.30
- Технический комитет:
- SC 46F - RF and microwave passive components
Provides basic mating and performance information for subminiature coaxial connectors with overlapping polytetrafluoroethylene (PTFE) dielectric interface for use with flexible and semi-rigid r.f. cables. The connectors are usable up to a frequency of 3 GHz. Only the interface dimensions are standardized. Other technical data are supplied for guidance only. The contents of the corrigendum of July 1995 have been included in this copy.
Технические детали
- SKU
- IEC 60169-19:1985
