Overview

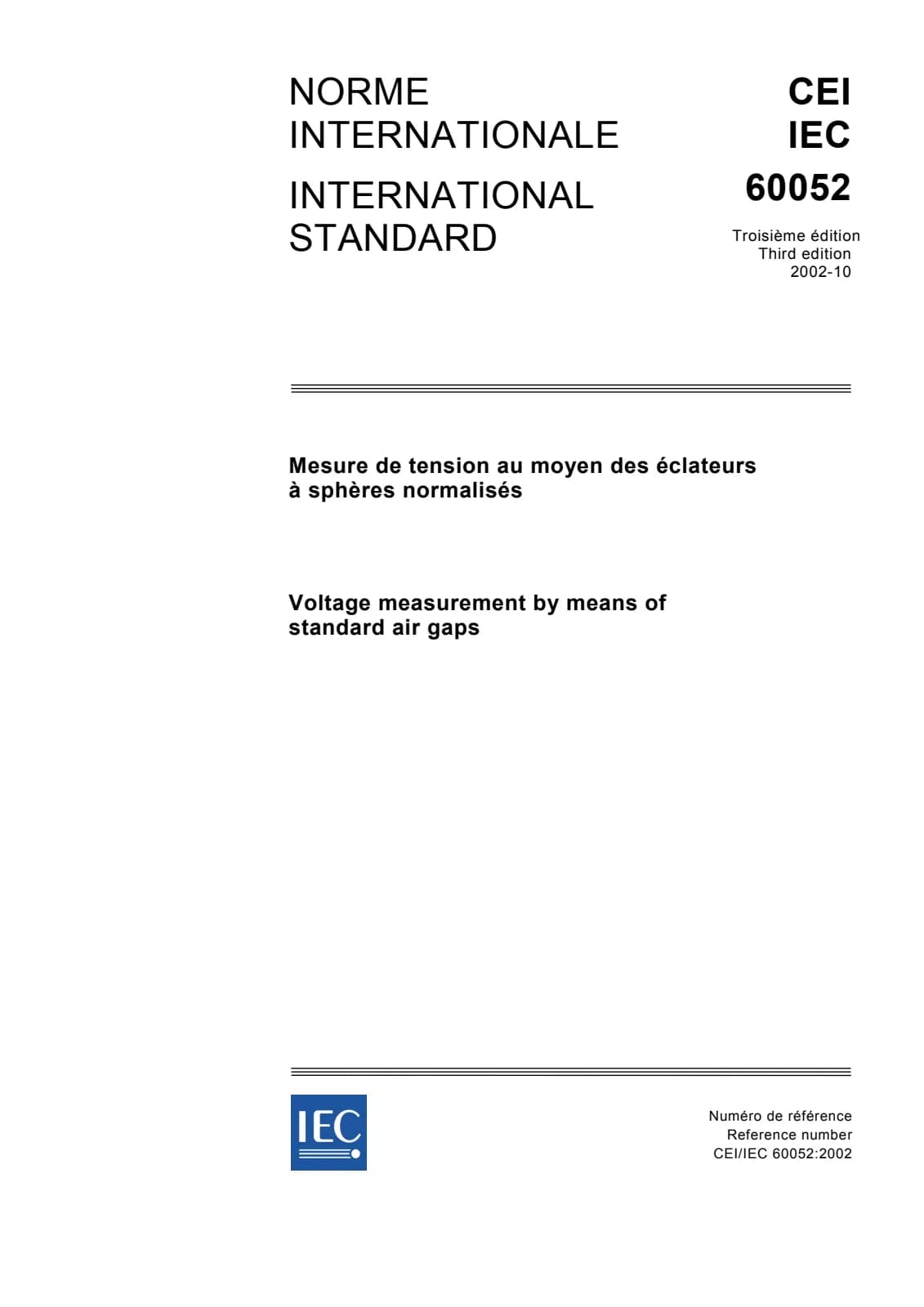

IEC 60052:2002, titled Voltage Measurement by Means of Standard Air Gaps, is an international standard developed by the International Electrotechnical Commission (IEC). This third edition establishes the requirements and guidelines for the construction and use of standard sphere-gaps to measure the peak values of alternating, direct, and impulse voltages, including both full standard and longer tail impulse voltages. It is a fundamental reference for practitioners involved in high-voltage measurement and testing.
The standard provides essential details such as the shape and surface conditions of sphere-gaps, connection methods, use instructions, and includes tabulated peak disruptive voltage values for air gaps under various conditions. IEC 60052 supports the calibration and performance verification of high-voltage measuring devices in electrical engineering.
Key Topics
-
Sphere-gap Design and Requirements
The standard defines precise specifications for sphere-gaps, including:
- Shape and surface condition requirements to ensure accuracy and repeatability.
- Vertical and horizontal sphere-gap arrangements.
- Connections to measurement systems and devices.
-
Voltage Measurement Procedures
Procedures to measure peak values of:
- Alternating voltages at power frequency.
- Direct voltages, both positive and negative polarity.
- Impulse voltages for switching and lightning effects.
-
Reference Tables and Correction Factors
Provided tables list peak disruptive voltages for various test conditions, along with guidance on:
- Air density correction factors to adjust measurements for environmental conditions.
- Humidity correction factors to account for atmospheric moisture impact on measurements.
-
Standard Rod-Rod Gap Usage
For direct voltage measurements, details are laid out on rod-rod gap construction and measurement procedures to complement sphere-gap applications.
-
Calibration and Uncertainty Management
Annexes offer comprehensive guidance on:
- Experimental calibration ranges.
- Derivation of voltage values from national standards.
- Uncertainty assessment and sphere-gap calibration protocols.
Applications
IEC 60052:2002 is crucial for:
-
High-voltage Test Labs
Employing sphere-gap configurations as primary standards to verify voltage measuring instruments and calibrate equipment.
-
Electrical Utilities and Manufacturers
Ensuring equipment withstands rated voltages by accurately measuring disruptive voltages under standardized conditions.
-
Research & Development
Studying the behavior of air gaps and insulation systems under various voltage stresses and environmental influences.
-
Quality Assurance and Compliance
Providing a reliable methodology for performance checking of approved measuring systems used in power systems testing.
By standardizing air gap methods, IEC 60052 enhances safety and precision in high-voltage testing environments and promotes global unification of measurement practices.
Related Standards
-
IEC 60060 - High-Voltage Test Techniques
Provides extensive methods and procedures for high-voltage testing, complementing the use of air gaps described in IEC 60052.
-
IEC 60034 - Rotating Electrical Machines
Part of the IEC 60000 series which includes numbering conventions related to electrotechnical testing.
-
Other IEC Standards on Electrical Insulation and Testing
To ensure comprehensive coverage of measurement, insulation coordination, and equipment testing relevant to high-voltage engineering.
Keywords: IEC 60052, voltage measurement, standard air gaps, sphere-gap, high-voltage testing, impulse voltage, direct voltage, alternating voltage, voltage calibration, air density correction, humidity correction, electrical standardization, IEC standards.
