BS ISO 12164-3:2014 PDF

Hollow taper interface with flange contact surface - Dimensions of shanks for stationary tools

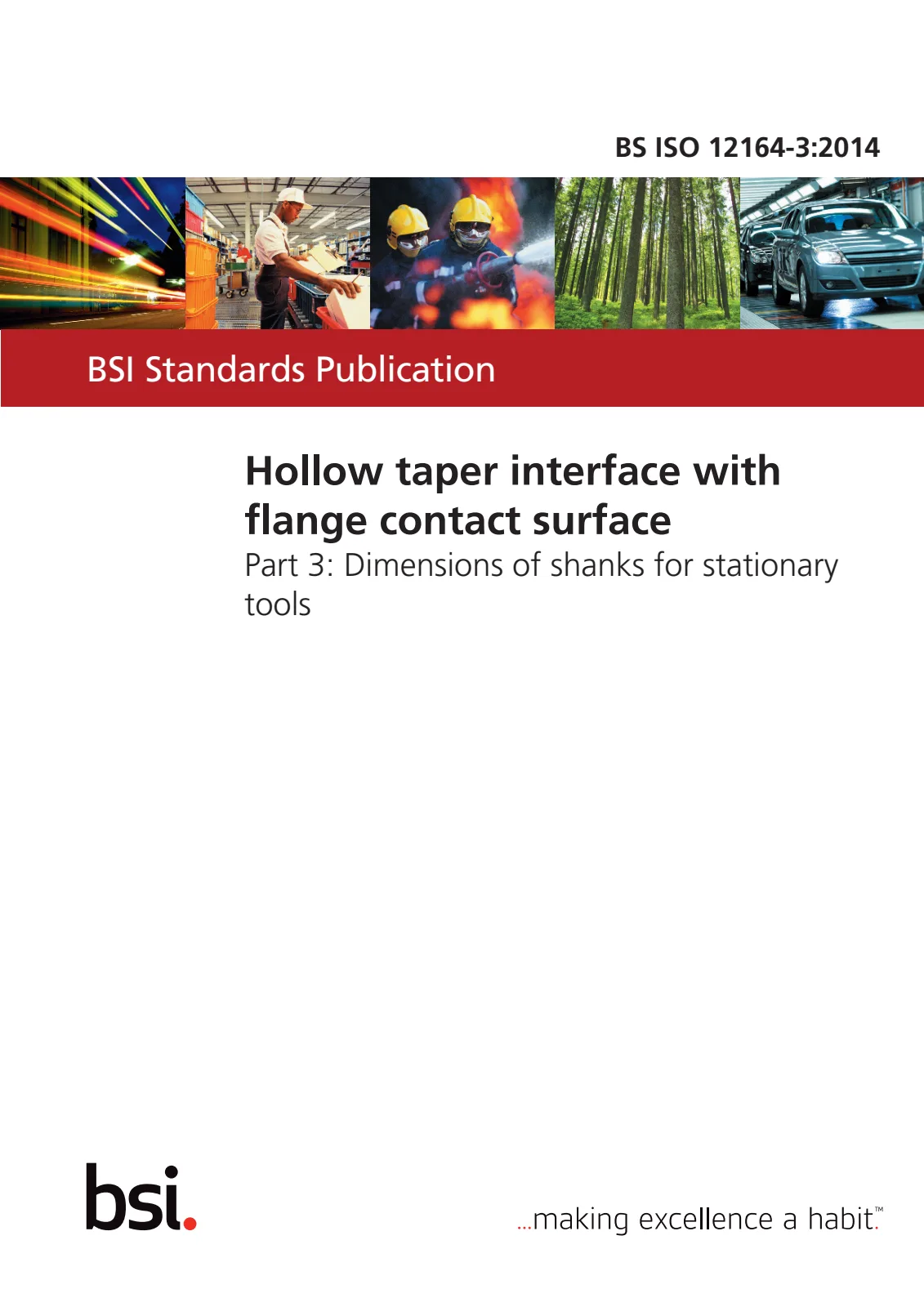

Первая страница стандарта BS ISO 12164-3:2014

Открыть превью (PDF)

Название (английский):

BS ISO 12164-3:2014

Hollow taper interface with flange contact surface - Dimensions of shanks for stationary tools

Статус документа:: Отменён
Формат:: Электронный (PDF)
Дата публикации:: 31 декабря 2014 г.
ICS:: 25.060.20
SKU:: BS ISO 12164-3:2014

Тип поставки:

Full version50 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:Мгновенная загрузка

Цена:50 €

Abstract

1 Scope This part of ISO 12164 specifies dimensions for hollow taper shanks with flange contact surface (HSK) to be applied to machine tools (e.g. turning machines, turning-mill machines). A range of shank sizes is specified. This part of ISO 12164 specifies the shank of type T. It incorporates a grooved flange to enable automatic tool exchange. The tools can also be exchanged manually via a hole in the shank taper. The torque is transmitted at the tail end of the shank through keys as well as friction.
