BS EN 61076-2-109:2014 PDF

Connectors for electronic equipment. Product requirements - Circular connectors. Detail specification for connectors with M 12 × 1 screw-locking, for data transmission frequencies up to 500 MHz

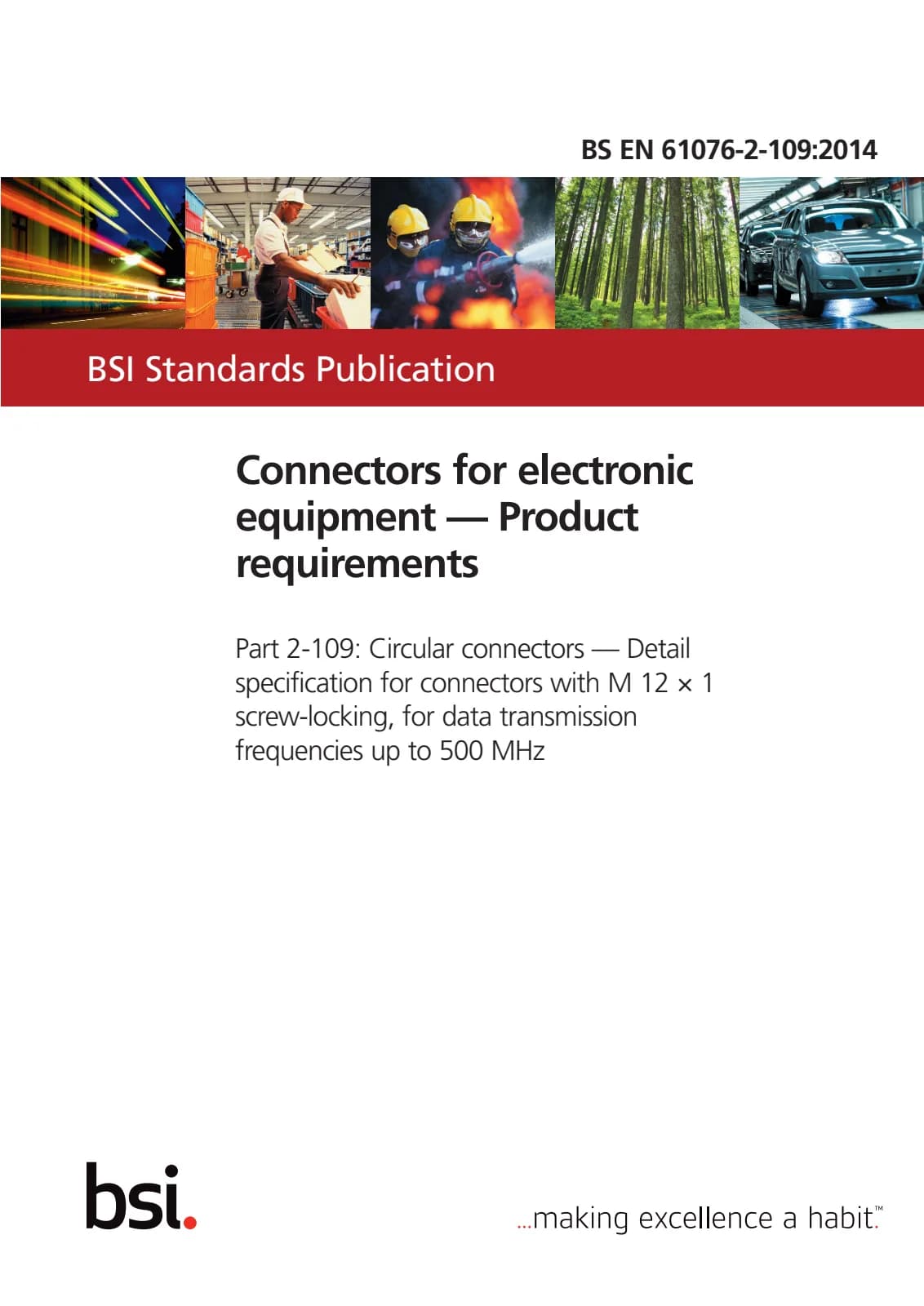

Первая страница стандарта BS EN 61076-2-109:2014

Открыть превью (PDF)

Название (английский):

BS EN 61076-2-109:2014

Connectors for electronic equipment. Product requirements - Circular connectors. Detail specification for connectors with M 12 × 1 screw-locking, for data transmission frequencies up to 500 MHz

Статус документа:: Действующий
Формат:: Электронный (PDF)
Дата публикации:: 30 сентября 2014 г.
ICS:: 31.220.10
Технический комитет:: CENELEC
SKU:: BS EN 61076-2-109:2014

Тип поставки:

Full version50 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:Мгновенная загрузка

Цена:50 €

Abstract

What is BS EN 61076-2-109 - Specifications for circular connectors about?

Electrical connectors are used to join electrical conductors to create an electrical circuit. BS EN 61076-2-109 describes circular connectors with IP 65/IP 67 degrees of protection and are suitable for data transmission with frequencies up to 500 MHz. BS EN 61076-2-109 applies to vision systems and data acquisition. These connectors consist of fixed and free connectors, either rewireable or non-rewireable, with M12 x 1 screw-locking. Male connectors have round contacts ∅ 0,6 mm. BS EN 61076-2-109 covers two different types of connectors, denominated X and H, with different contact arrangements, not mutually interchangeable, but with common ratings and purposes .

Who is BS EN 61076-2-109 - Specifications for circular connectors for? BS EN 61076-2-109 on specifications for circular connectors is useful for:

Manufacturers of electronic devices

Maintenance and augmentation teams

Companies associated with designing and installation of electronic devices

Fault management teams

Quality management teams

Why should you use BS EN 61076-2-109 - Specifications for circular connectors ?

Electronic equipment is used in applications that rely on mechanical or electric systems for their operation. They are essential to any work on electronics systems for creating signals and capturing responses from electronic devices. There a...
